Ignition Coil: Testing and Inspection

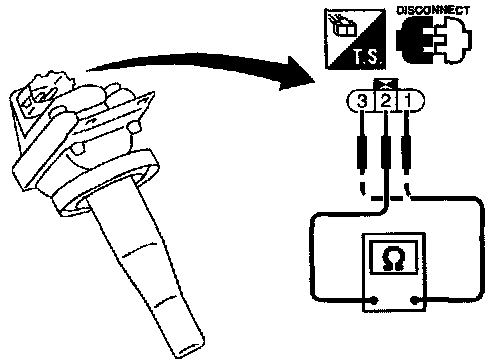

Test Connections:

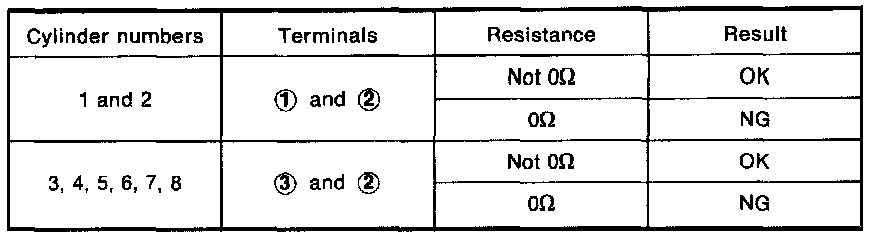

Specification:

COMPONENT INSPECTION
Ignition coil with power transistor
1. Disconnect ignition coil with power transistor harness connector.
2. Check ignition coil with power transistor for resistance between terminals (1) and (2).
If NG, replace ignition coil with power transistor assembly.
