Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

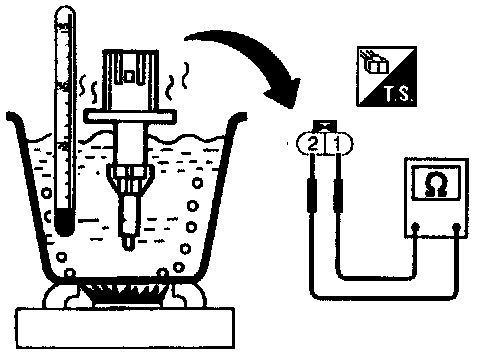

Test Connections:

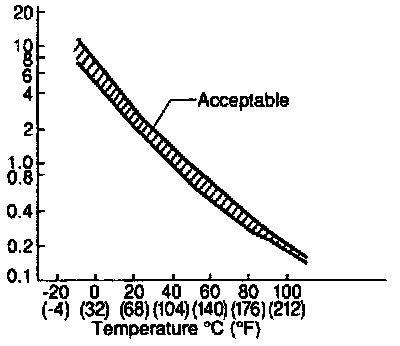

Graph:

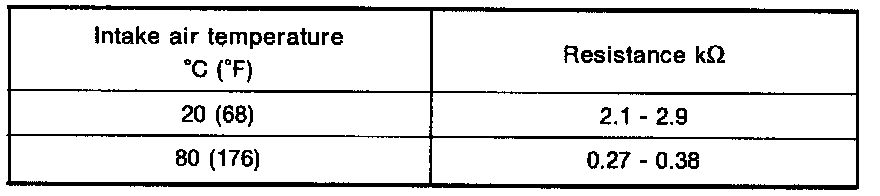

Specification:

COMPONENT INSPECTION
Intake air temperature sensor
Check resistance as shown in the figure.
