How to Read Splice Location

How To Read Splice Locations:

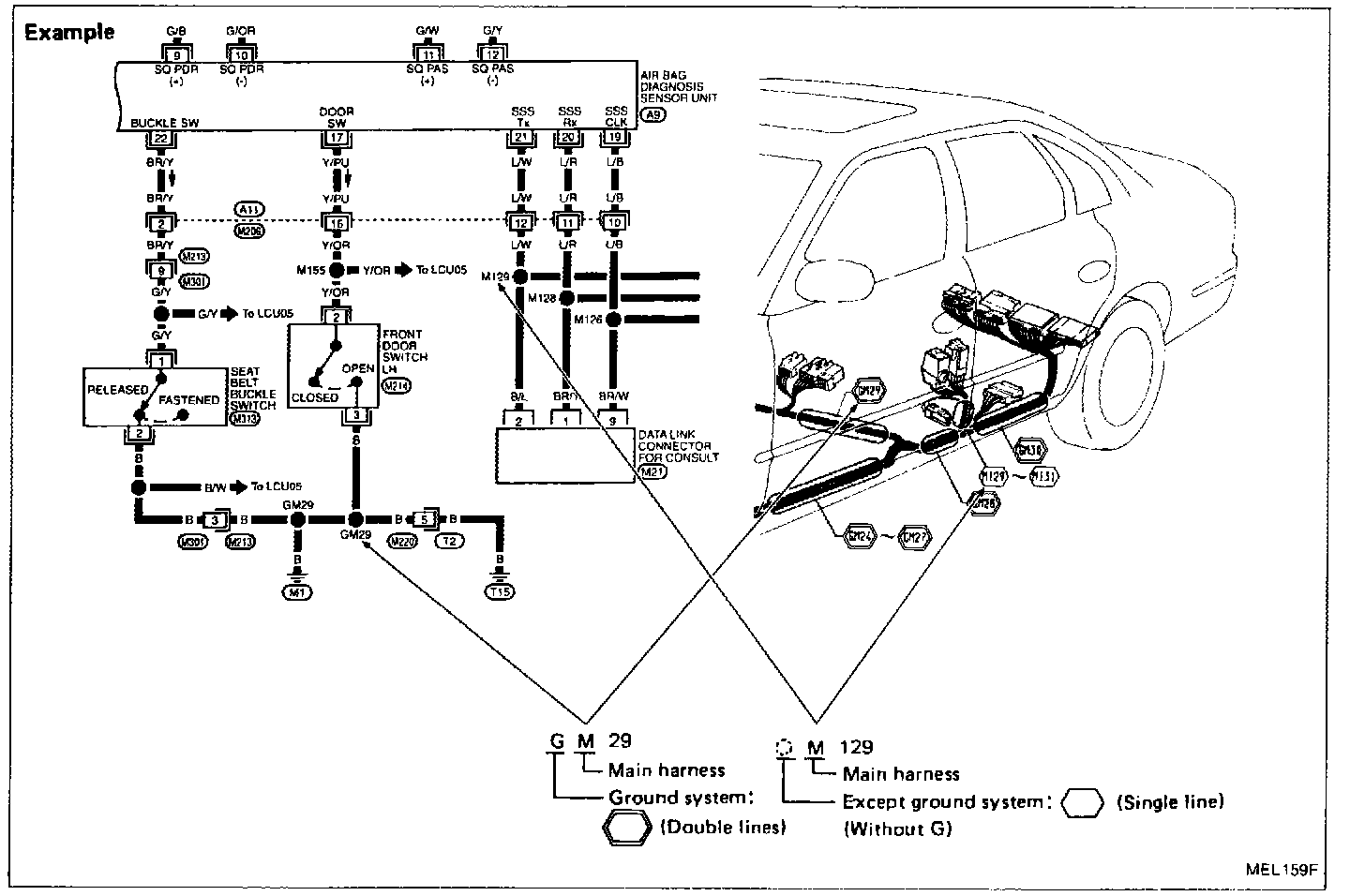

^ "GM25", "M130" etc., which are shown in the image, refer to wiring harness splice points. These points are located in shaded areas. "(GM129)", "(M129)", etc., in illustrations under the title "SPLICE LOCATION".
^ Wiring harness splice points are subject to change without prior notice.
