Fog/Driving Lamp: Testing and Inspection

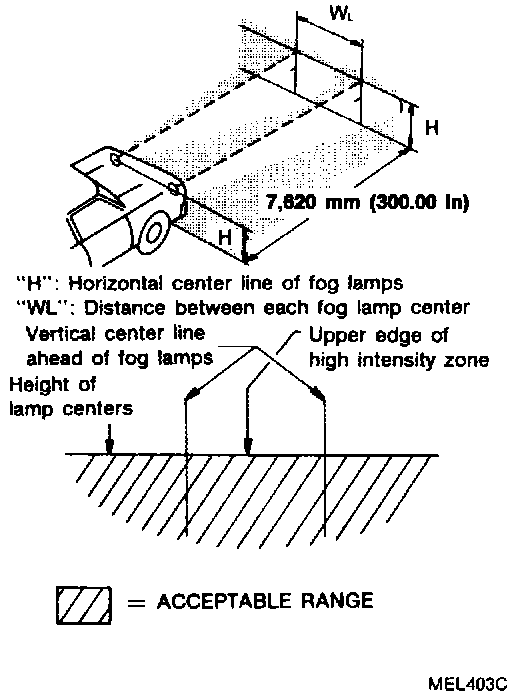

^ Adjust fog lamp so that upper edge of high intensity zone is within the acceptable range as shown in image.

^ Dotted lines in image show centre of fog lamp.
"H" Horizontal center line of fog lamp.
"WL" Distance between each fog lamp center.
