Cabin Air Filter / Purifier: Service and Repair

FUNCTION

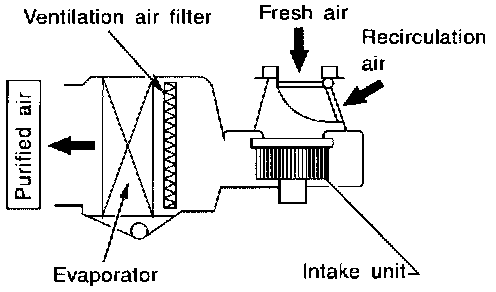

Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing ventilation air filter into cooling unit.





REPLACEMENT TIMING
Replace ventilation air filter every 2 years or 24,000 km (15,000 miles).
Caution label is fixed inside the glove box.





REPLACEMENT PROCEDURES
- Remove undercover.
- Remove glove box.
- Remove instrument reinforcement from instrument panel.

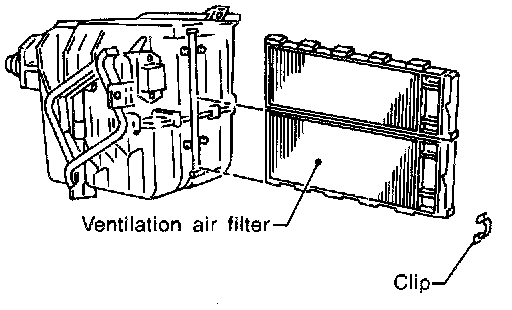

- Remove ventilation air filter fixed clip.
- Take out ventilation air filter from cooling unit.
- Replace with new one and reinstall on cooling unit.
- Reinstall instrument reinforcement, glove box and undercover.
