Charging System

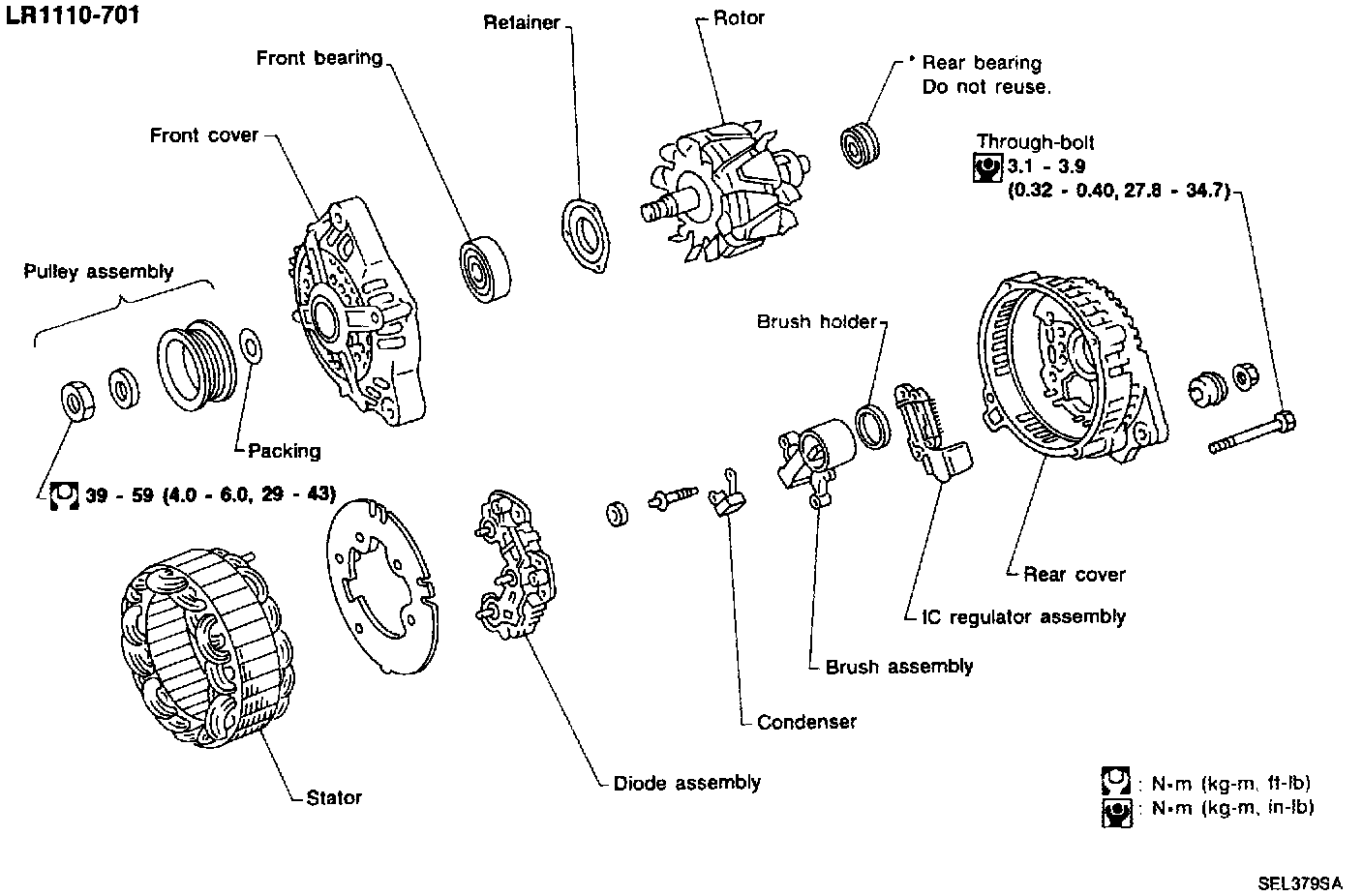

LR1110-701 Construction:

*Rear Bearing

CAUTION: Rear cover may be hard to remove because a ring is used to lock outer race of rear bearing. Be careful not to lose this ring during removal.
