Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Throttle Position Sensor
>>
Secondary Throttle Position Sensor
Secondary Throttle Position Sensor

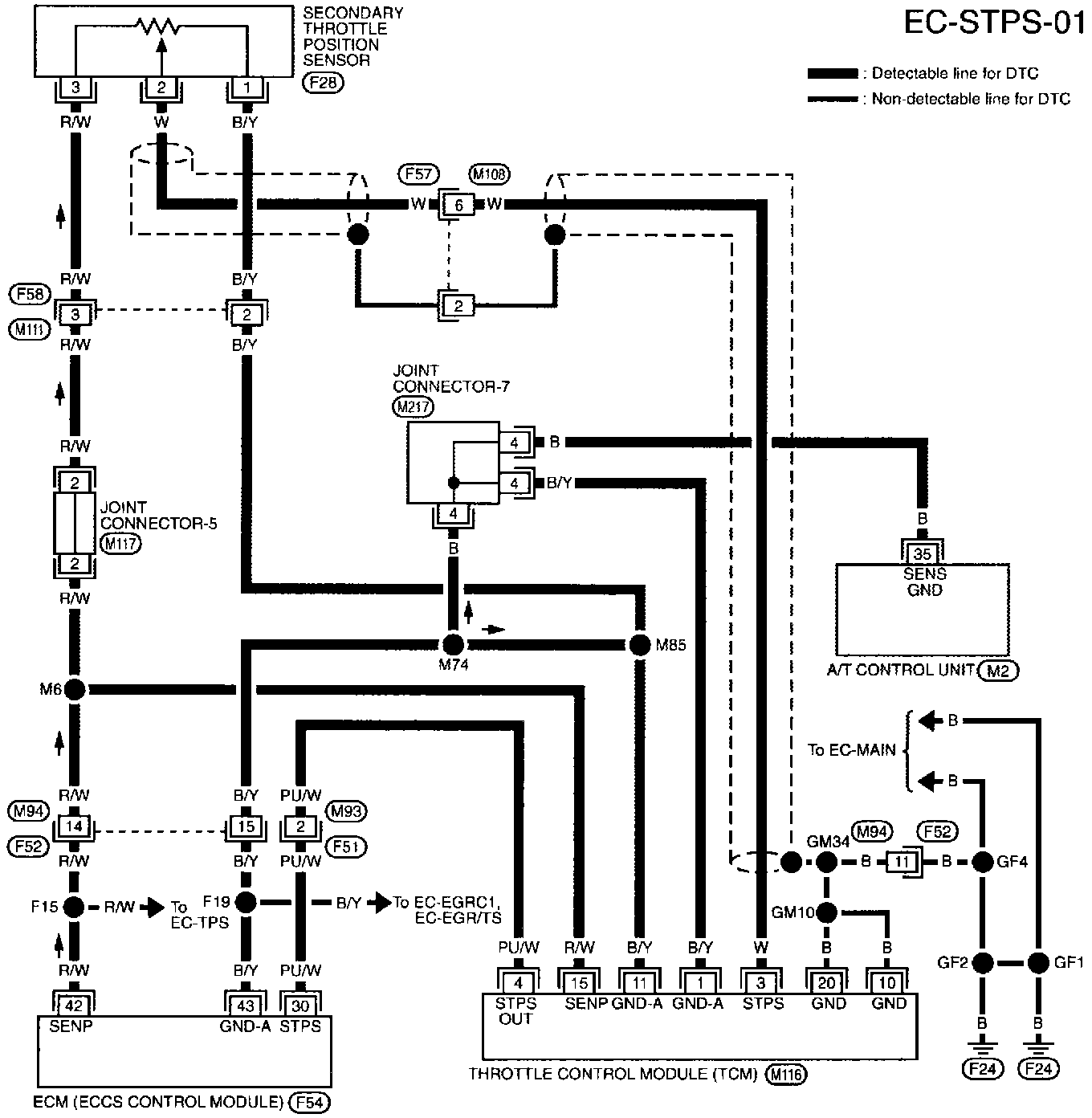

EC-STPS-01 Secondary Throttle Position Sensor (STPS) (DTC: 0406):
