Home >> Infiniti >> 1996 >> Q45 V8-4494cc 4.5L DOHC (VH45) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Body Control Module >> Schematic >> LCU01-B

LCU01-B

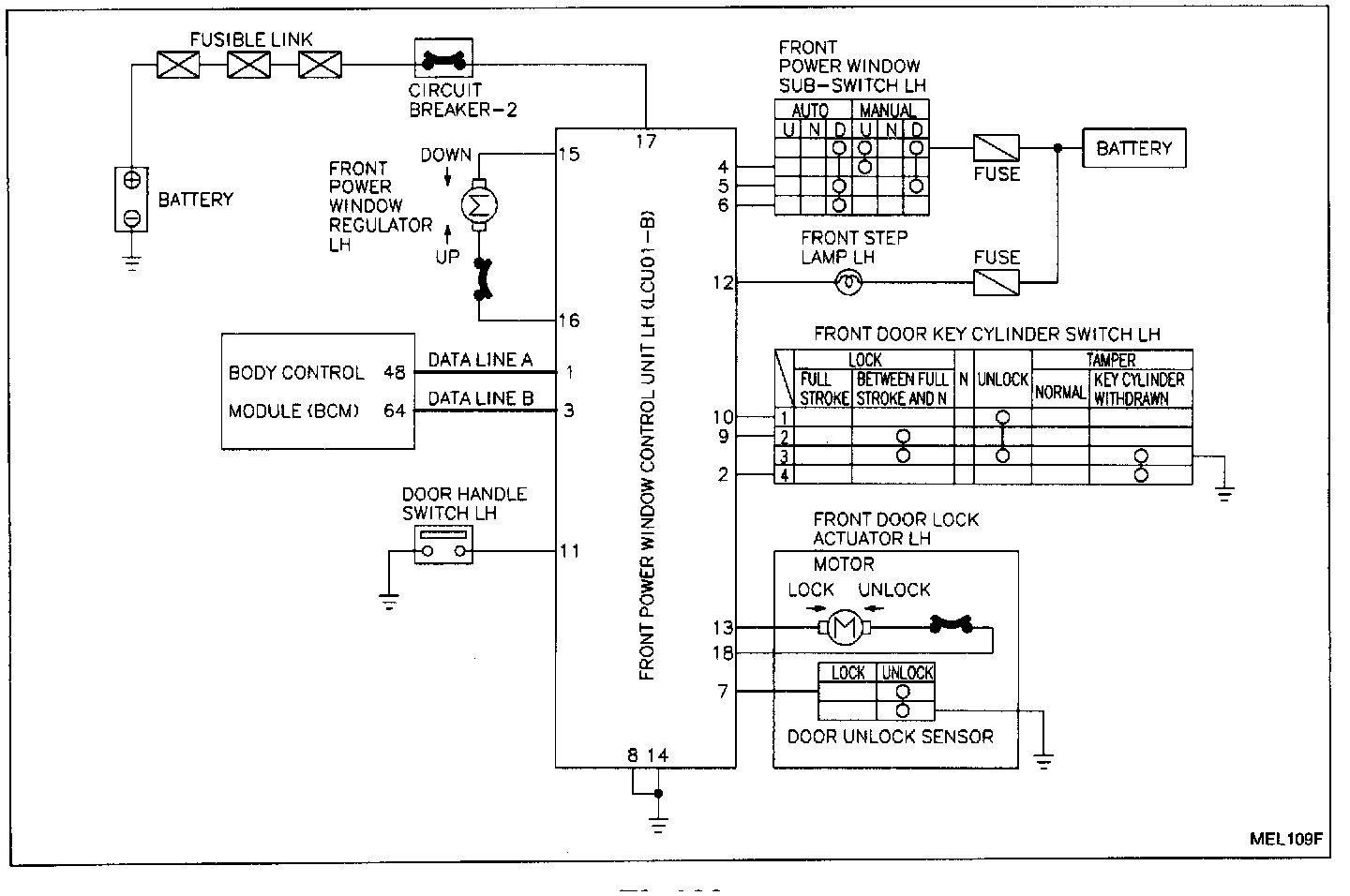

Circuit Diagram LCU01-B:
