Air Conditioning System - Blows Warm Air

Classification:
HA97-009

Reference:
ITB97-050

Date:
February 1, 1998

1996-97 I30 AIR CONDITIONING SYSTEM BLOWING WARM AIR

APPLIED VEHICLE:
1996-97 I30 (CA32)

APPLIED VIN:
Vehicles built before 524030

APPLIED DATE:
Vehicles built before May 19, 1997

SERVICE INFORMATION

Use this bulletin to service a 1996-97 I30 air conditioning system which exhibits poor cooling and/or unstable vent outlet temperatures as described below.

When driving at a speed above 60 MPH (engine speed above 3000 RPM) in ambient temperatures between 40°F and 68°F, the air from the vents may become warm and uncomfortable. Air conditioning system operation returns to normal when the vehicle is driven at varying slower speeds or comes to a stop.

These conditions may be caused by a low refrigerant charge or a slow acting swash plate in the compressor.

SERVICE PROCEDURE

Evacuate and recharge the A/C system and/or replace the compressor with the countermeasure unit. Refer to the Repair Flow Chart for the diagnostic procedure.

CAUTION:
When changing the compressor, take special care in removing and reinstalling the refrigerant lines as the O-ring seals can be easily damaged.

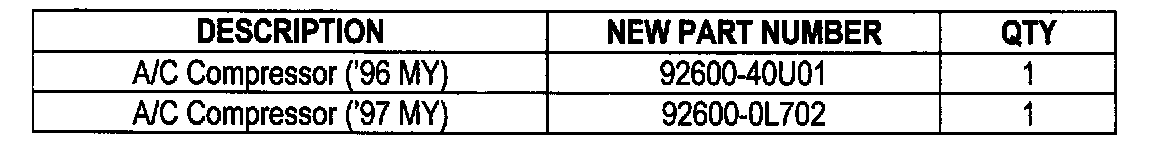

PARTS INFORMATION

CLAIMS INFORMATION

When applicable, standard claims coding applies.

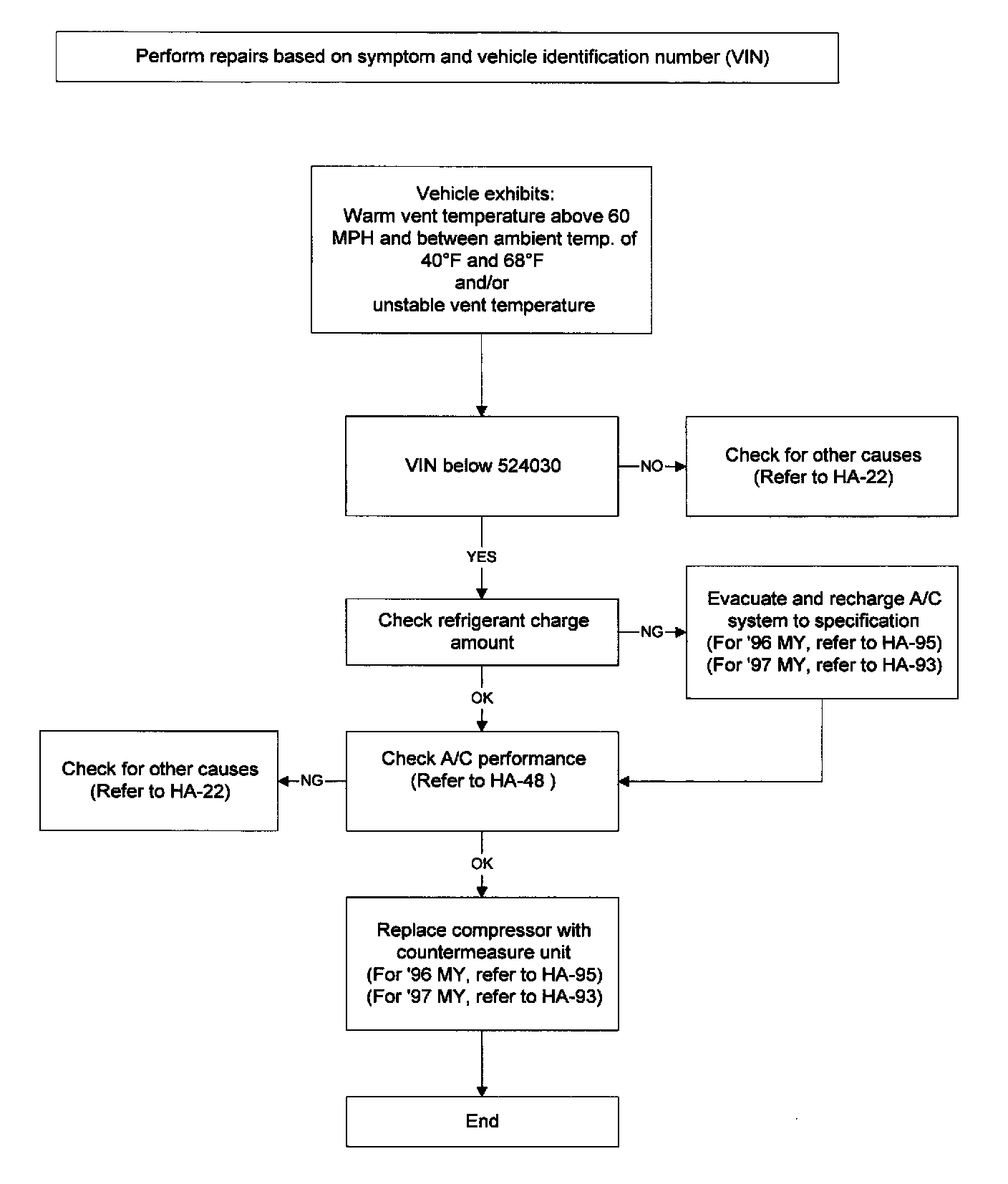

REPAIR FLOW CHART
