Diode Check

Diode Check:

^ Check continuity using an ohmmeter.

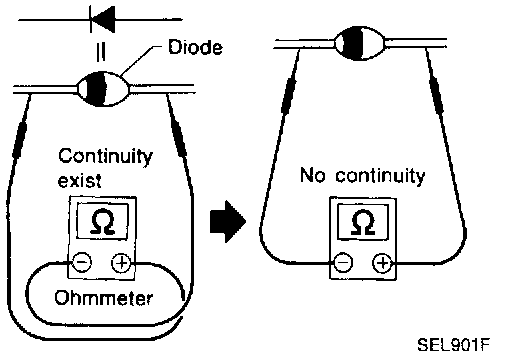

^ Diode is functioning properly if test results are as shown in the image.
NOTE: Specifications may vary depending on the type of tester.Before performing this inspection, be sure to refer to the instruction manual for the tester to be used.

Diode Check:

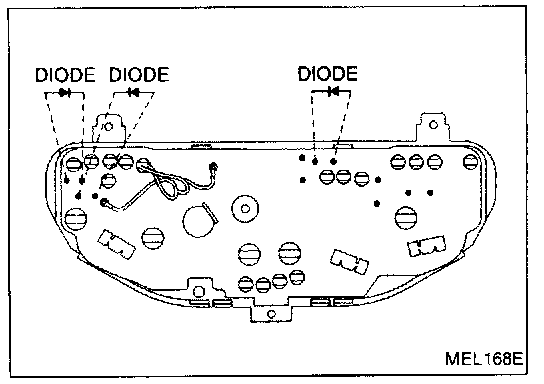

^ Diodes for warning lamps are built into the combination meter printed circuit.
