Service Data and Specifications

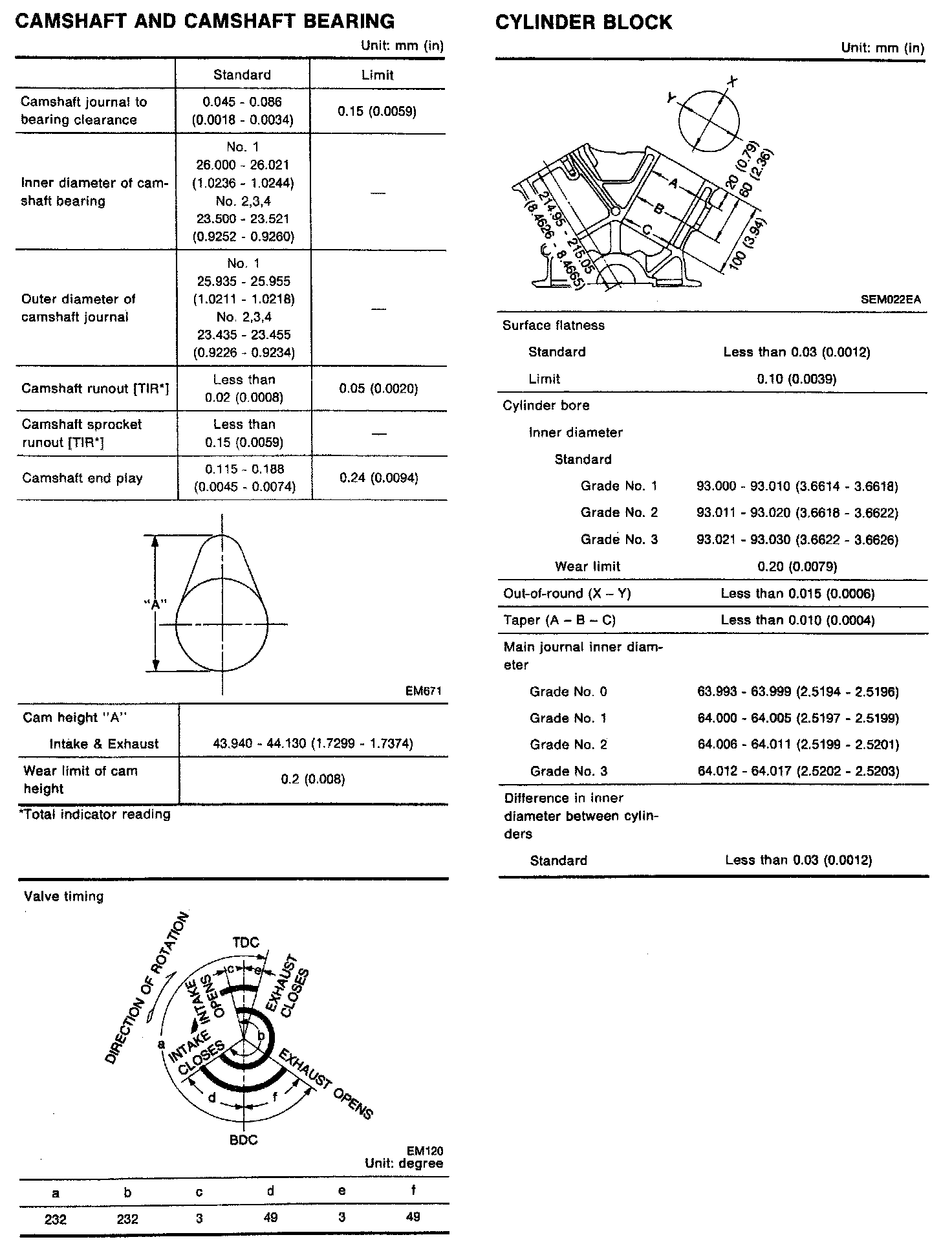

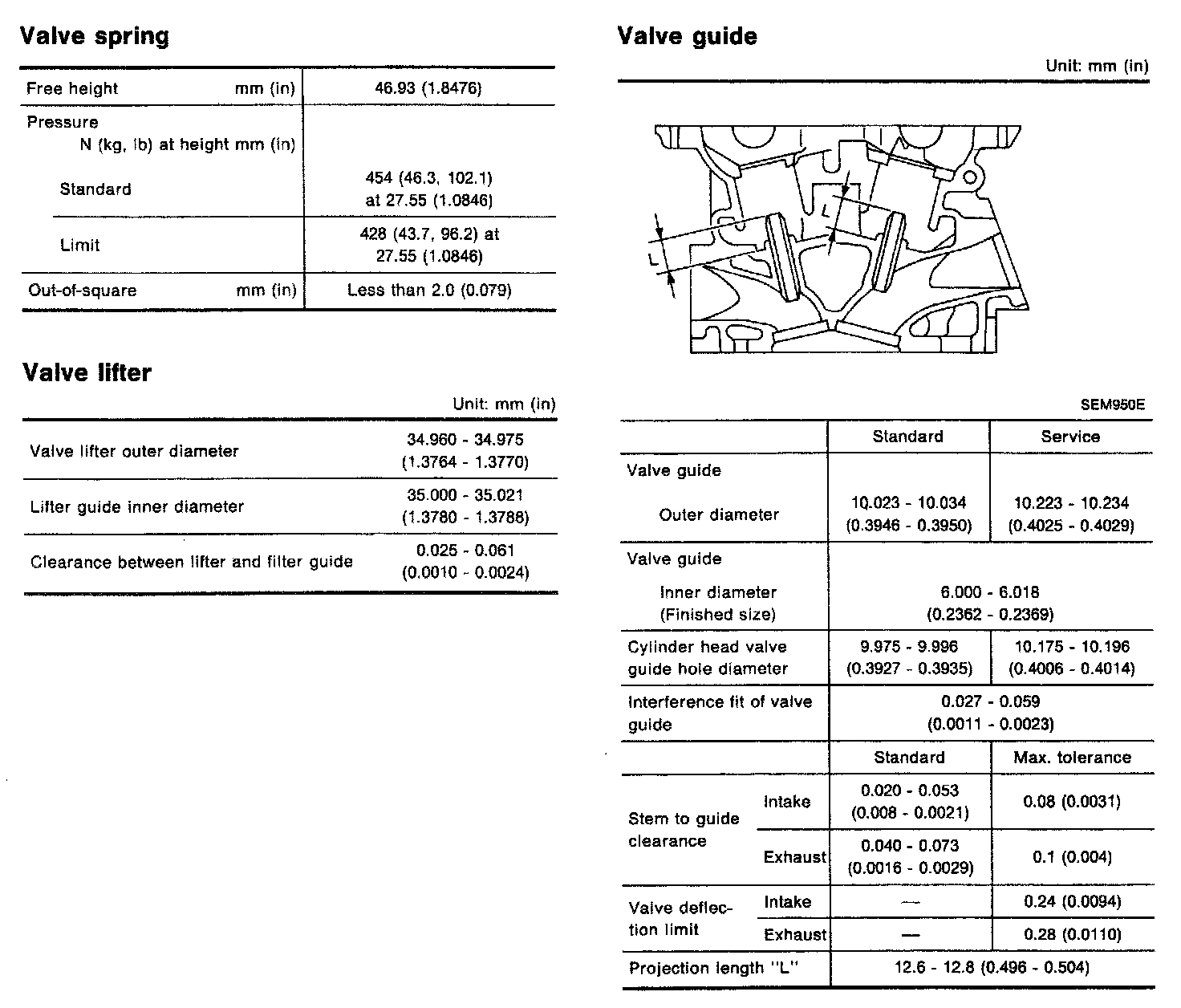

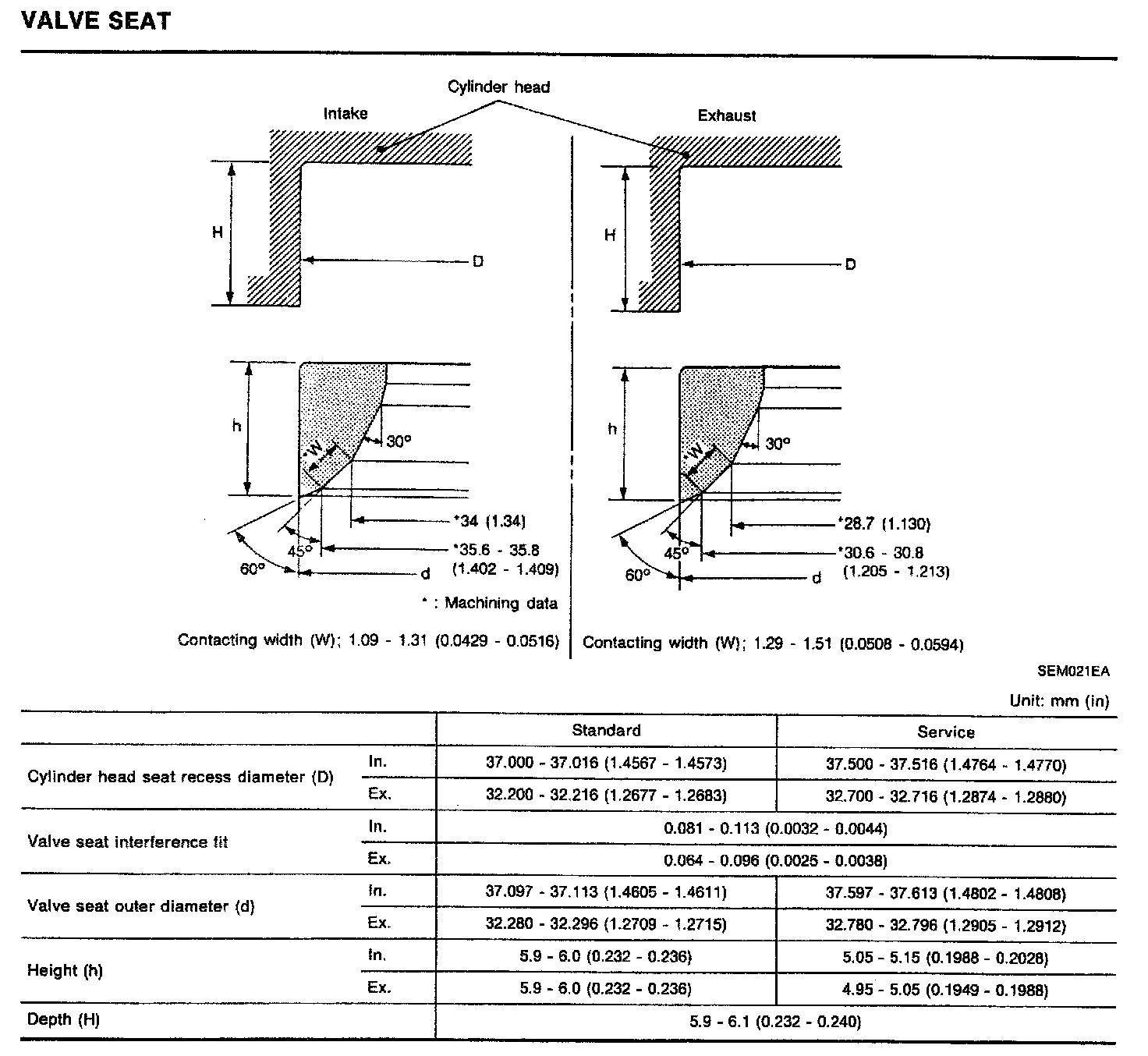

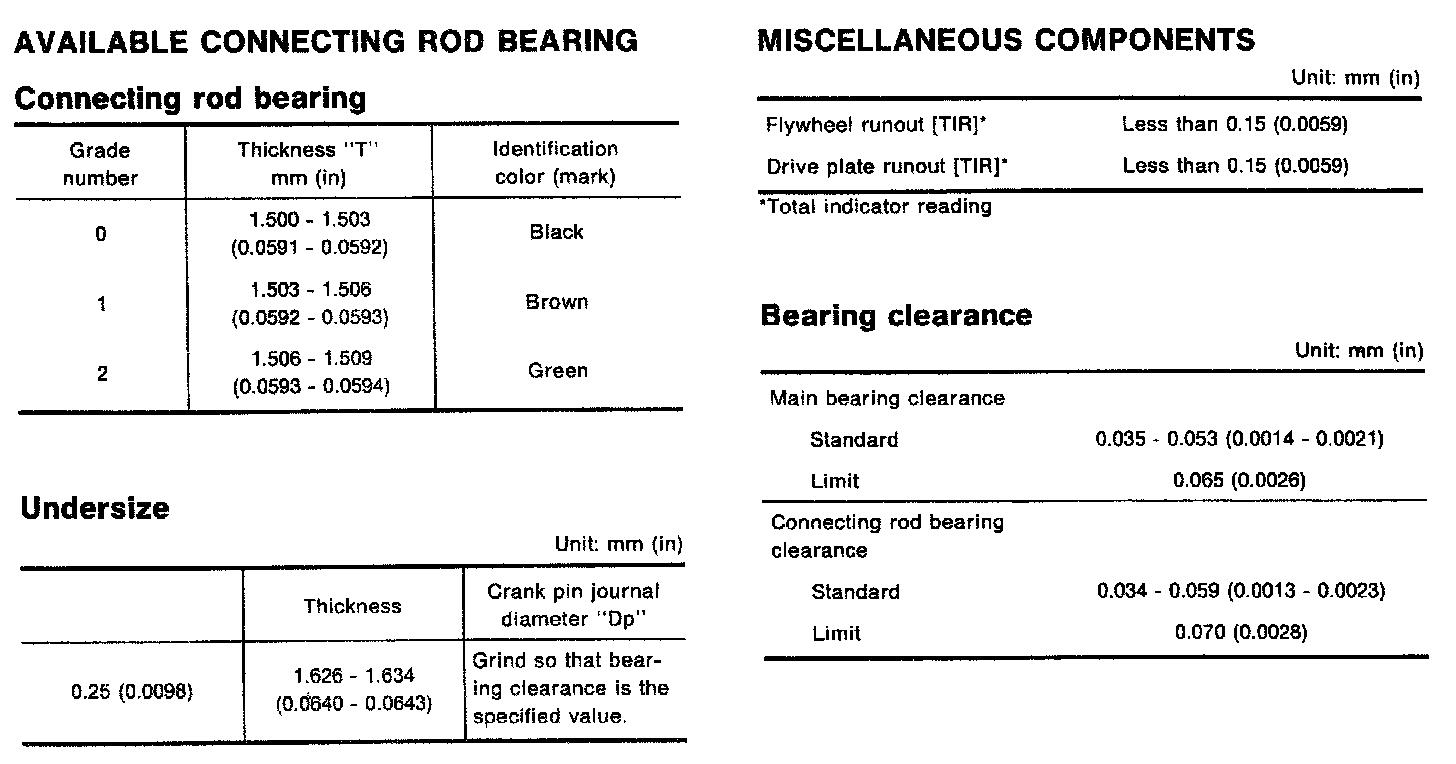

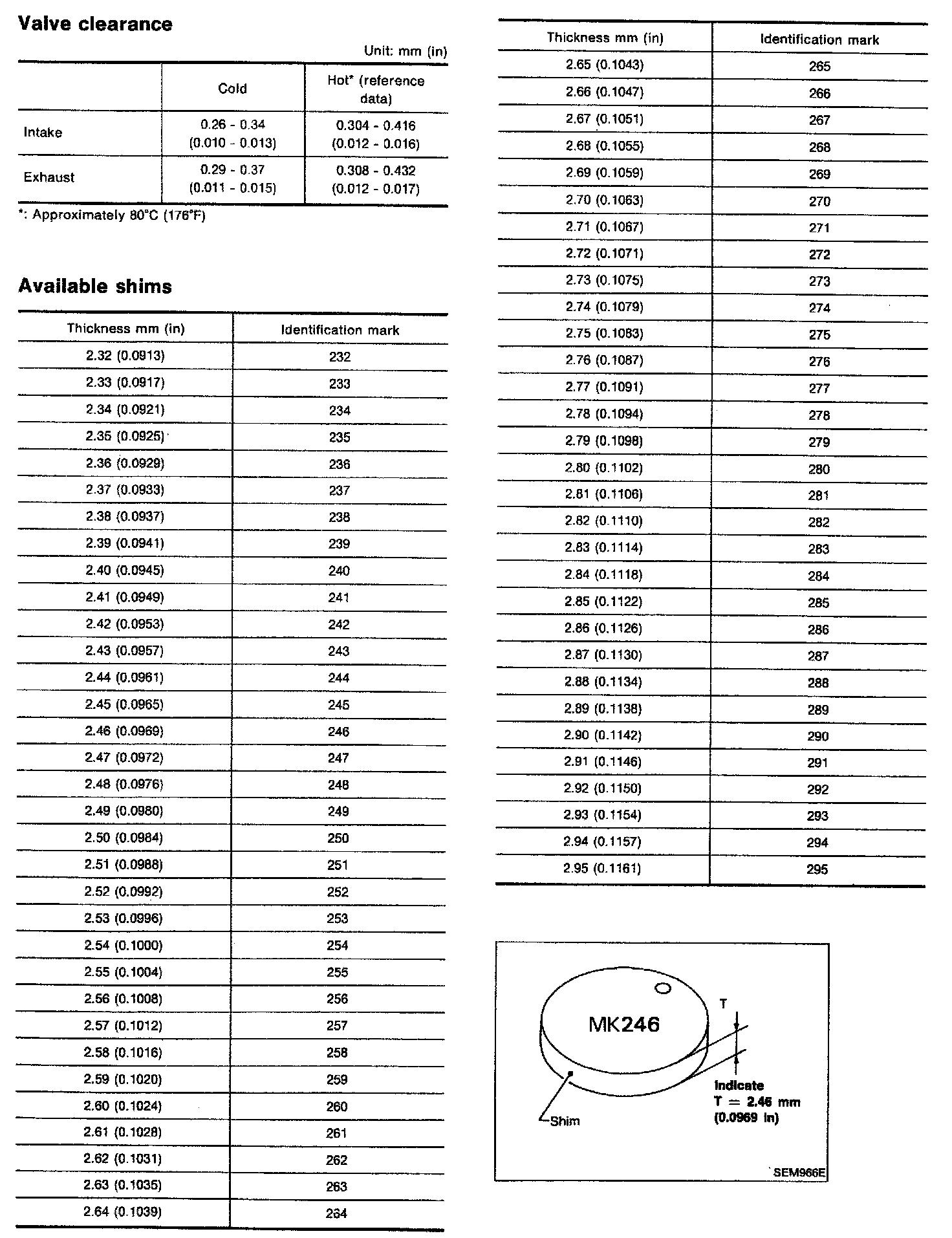

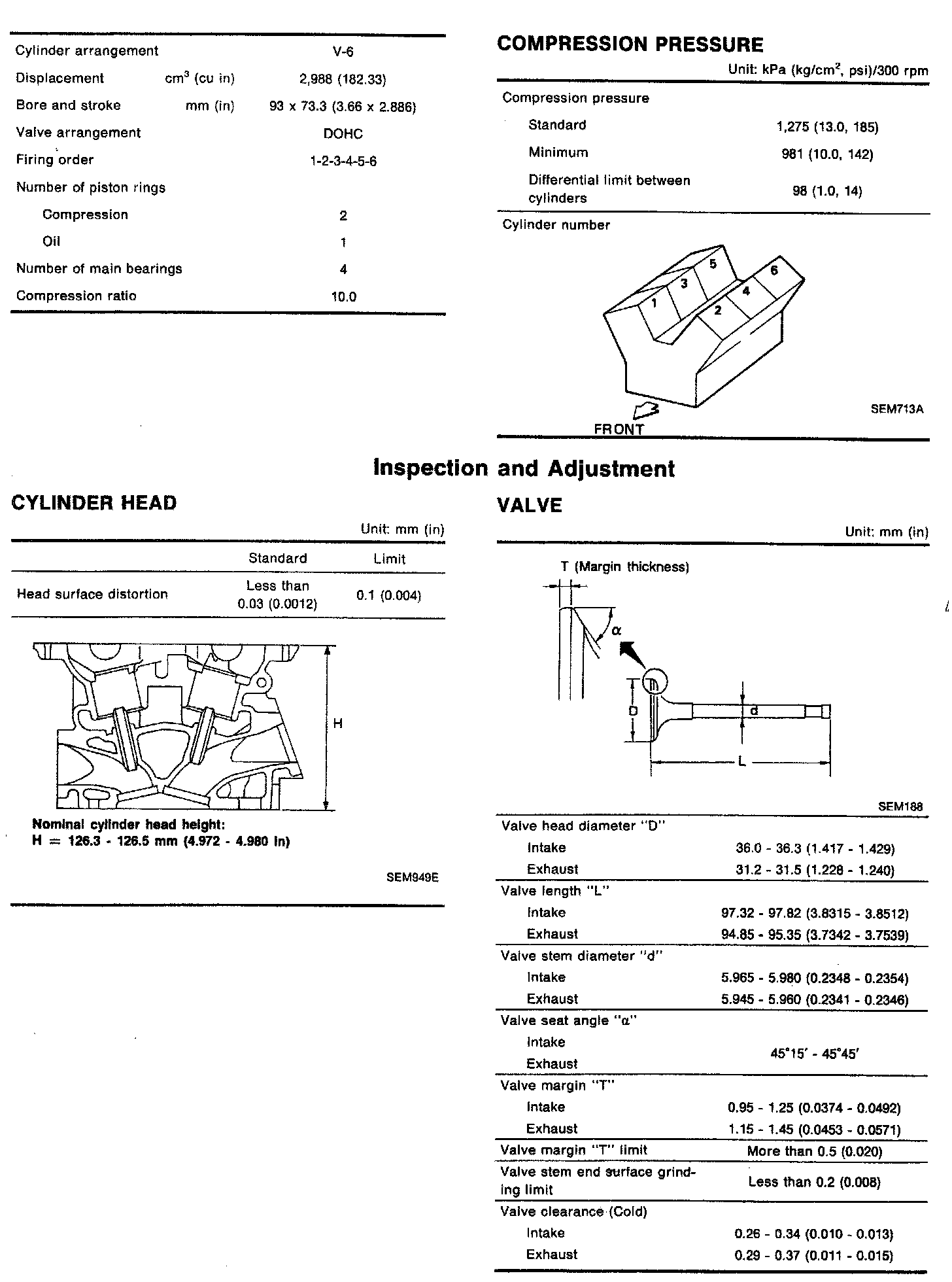

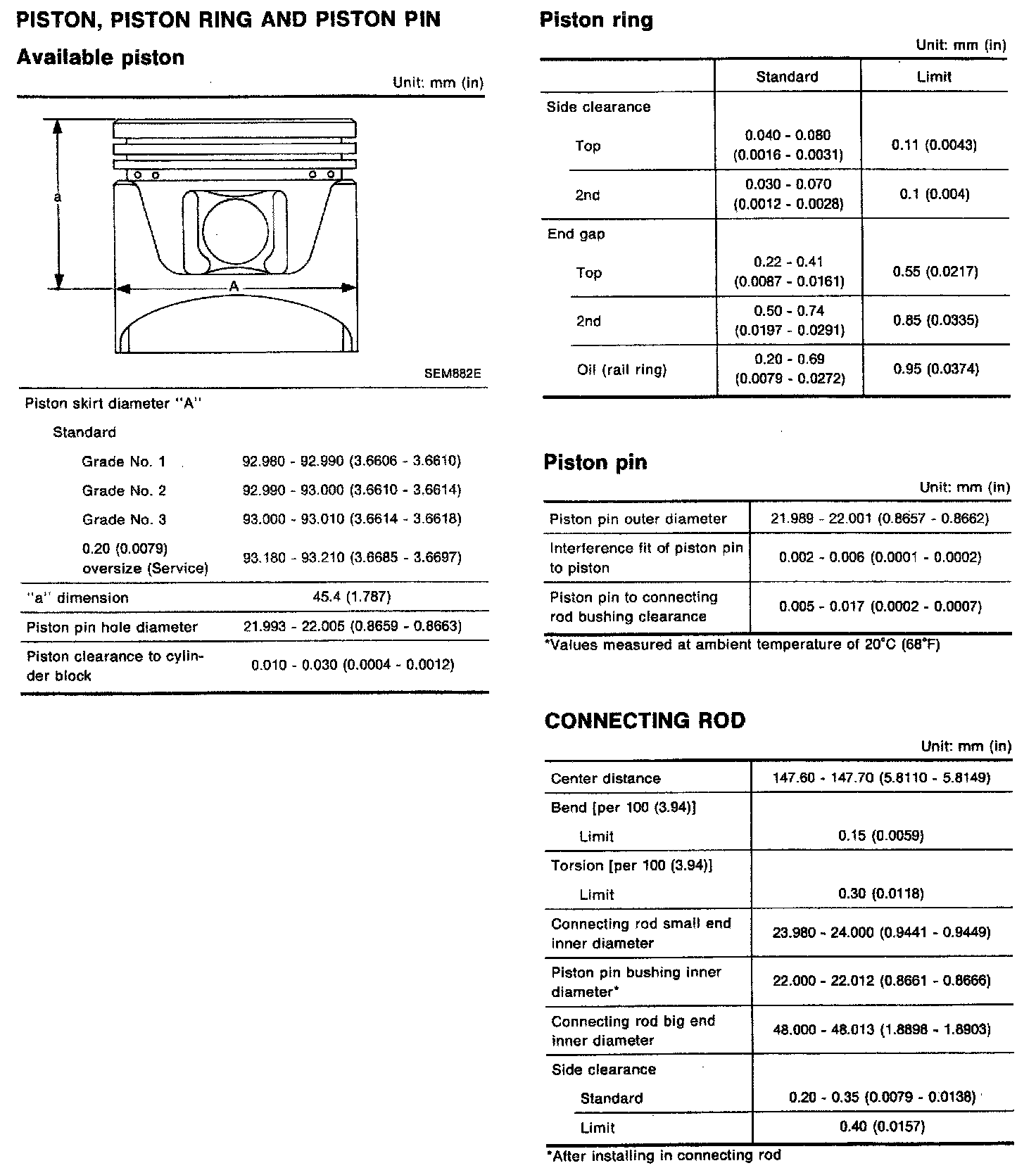

ENGINE SPECIFICATIONS

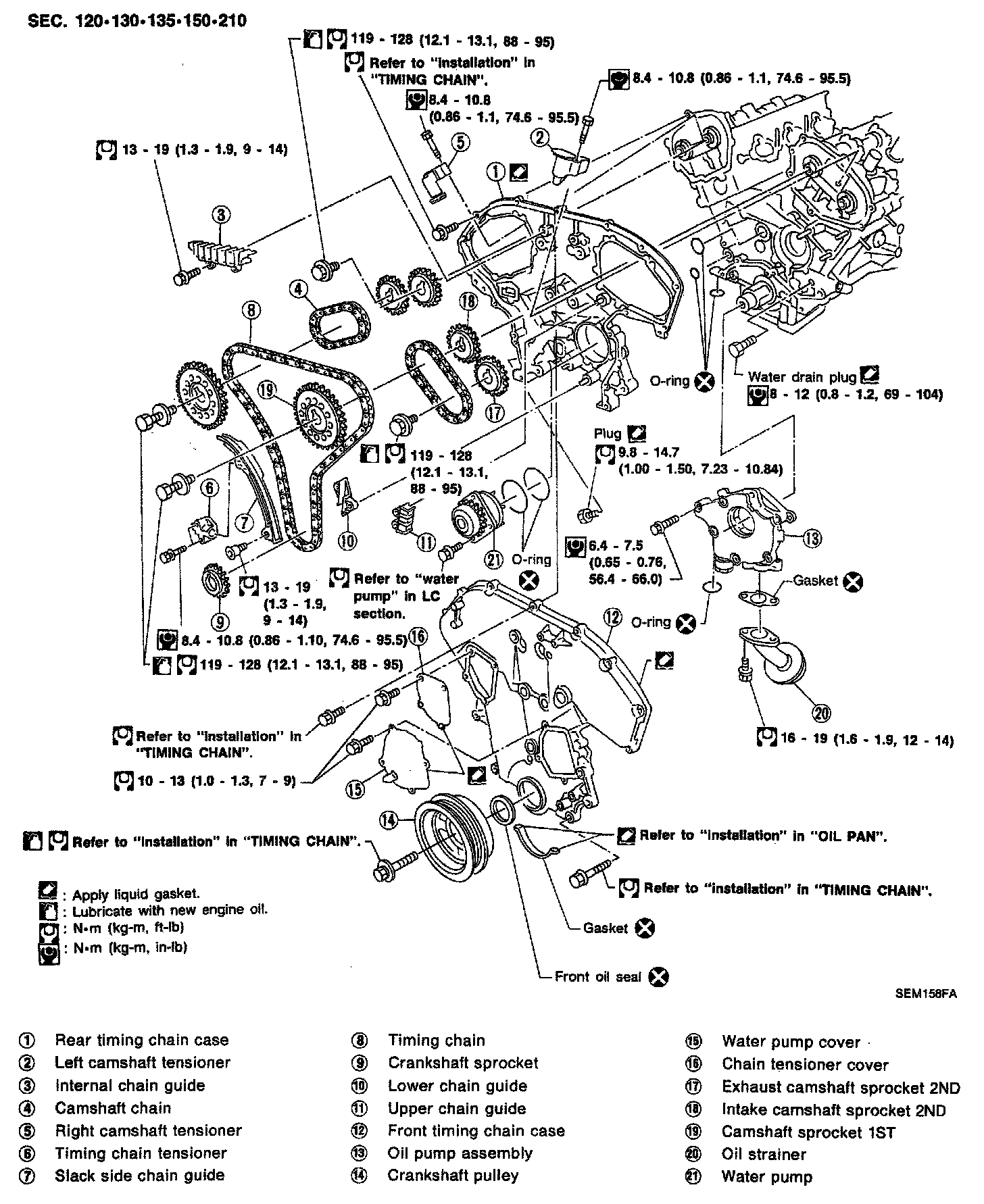

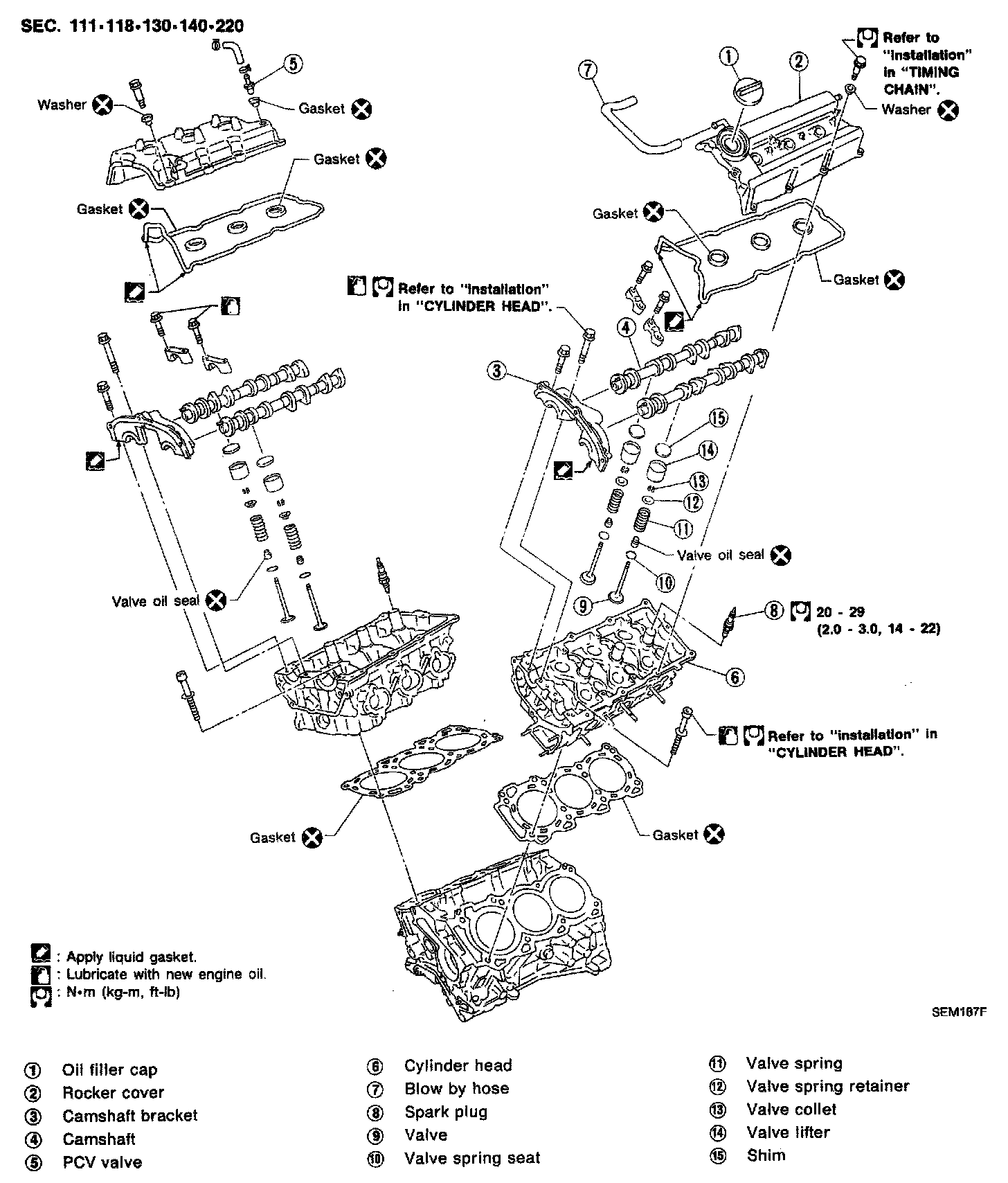

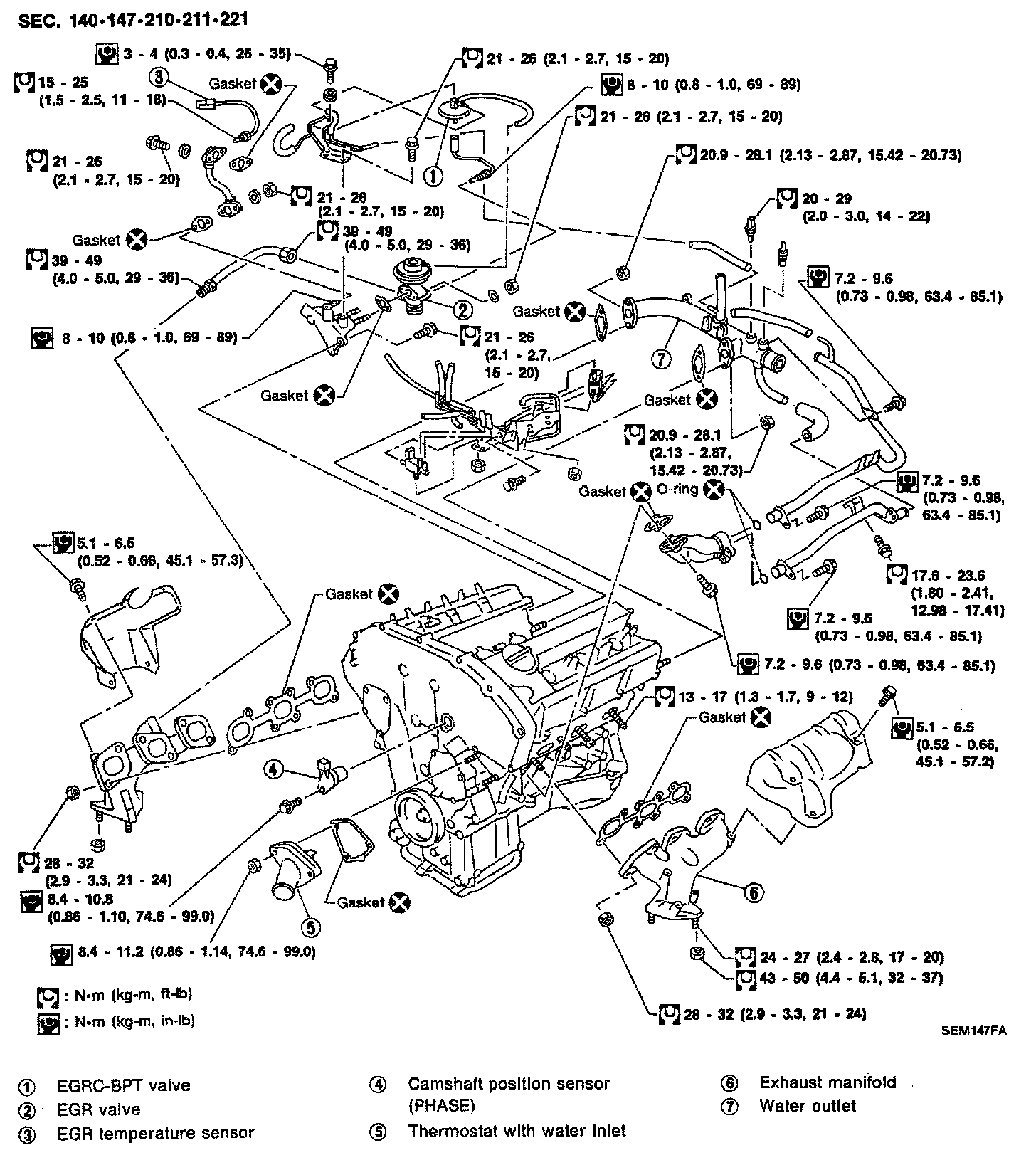

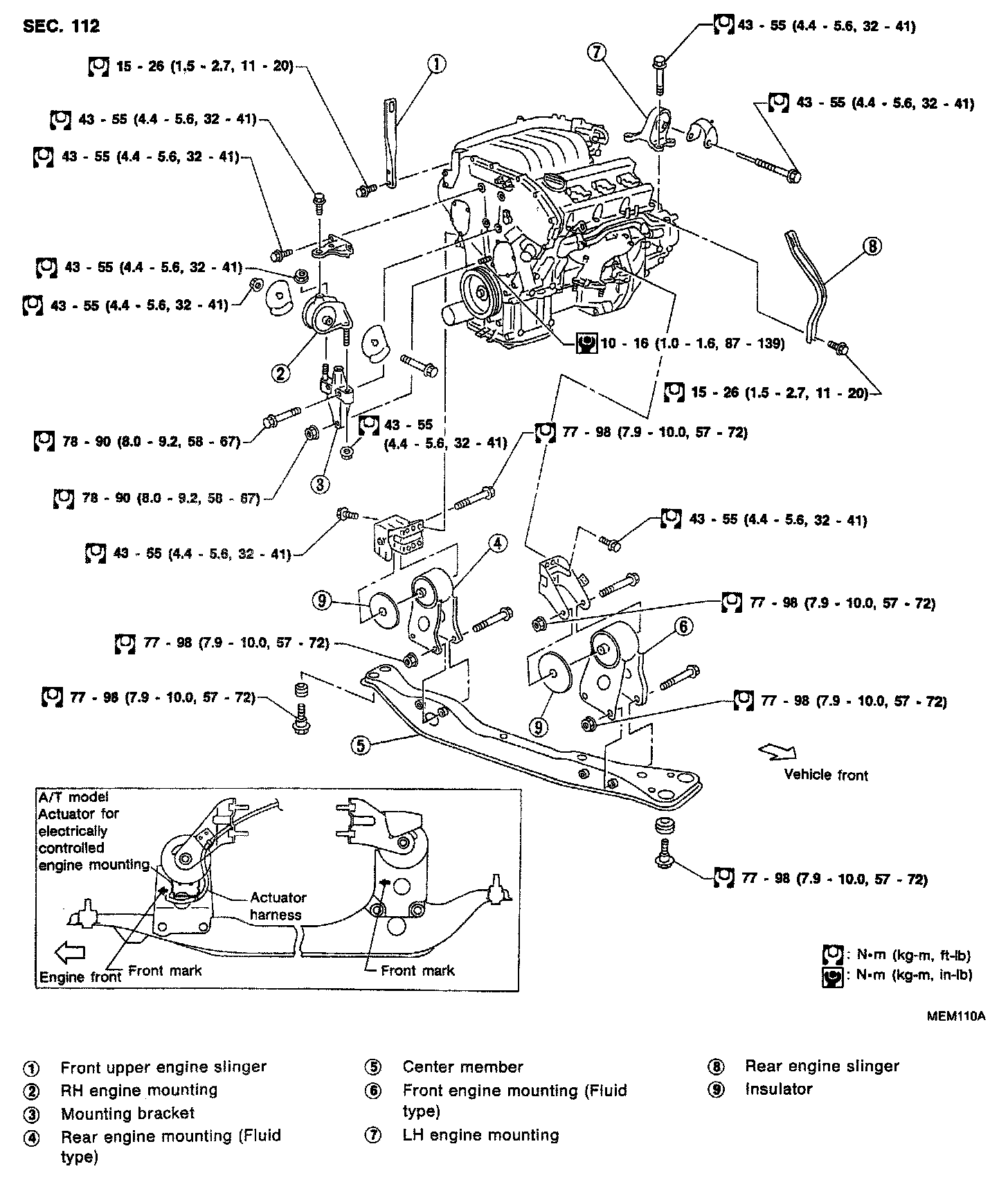

TIGHTENING SPECIFICATIONS

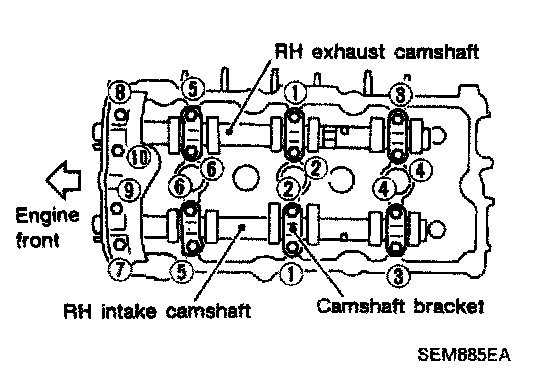

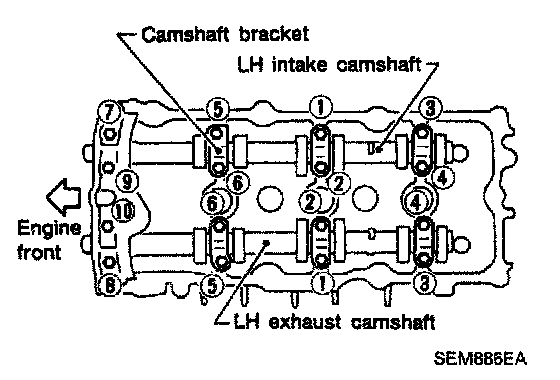

CAMSHAFT TIGHTENING SEQUENCE

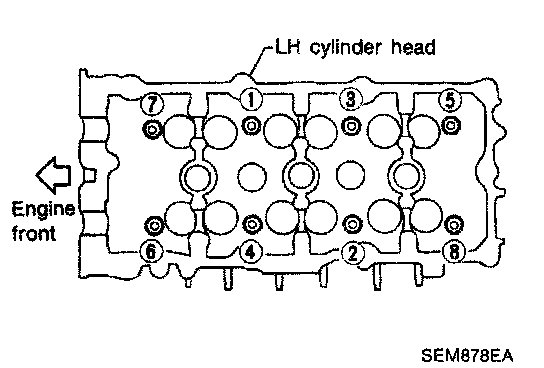

CYLINDER HEAD TIGHTENING SEQUENCE

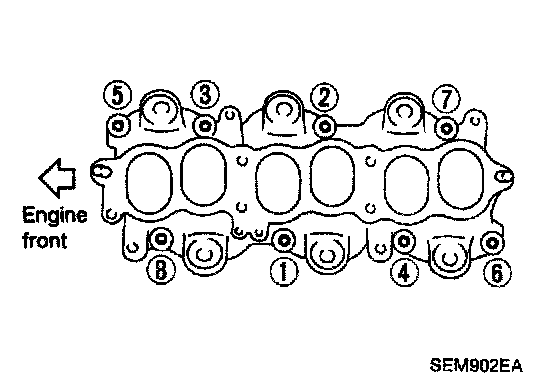

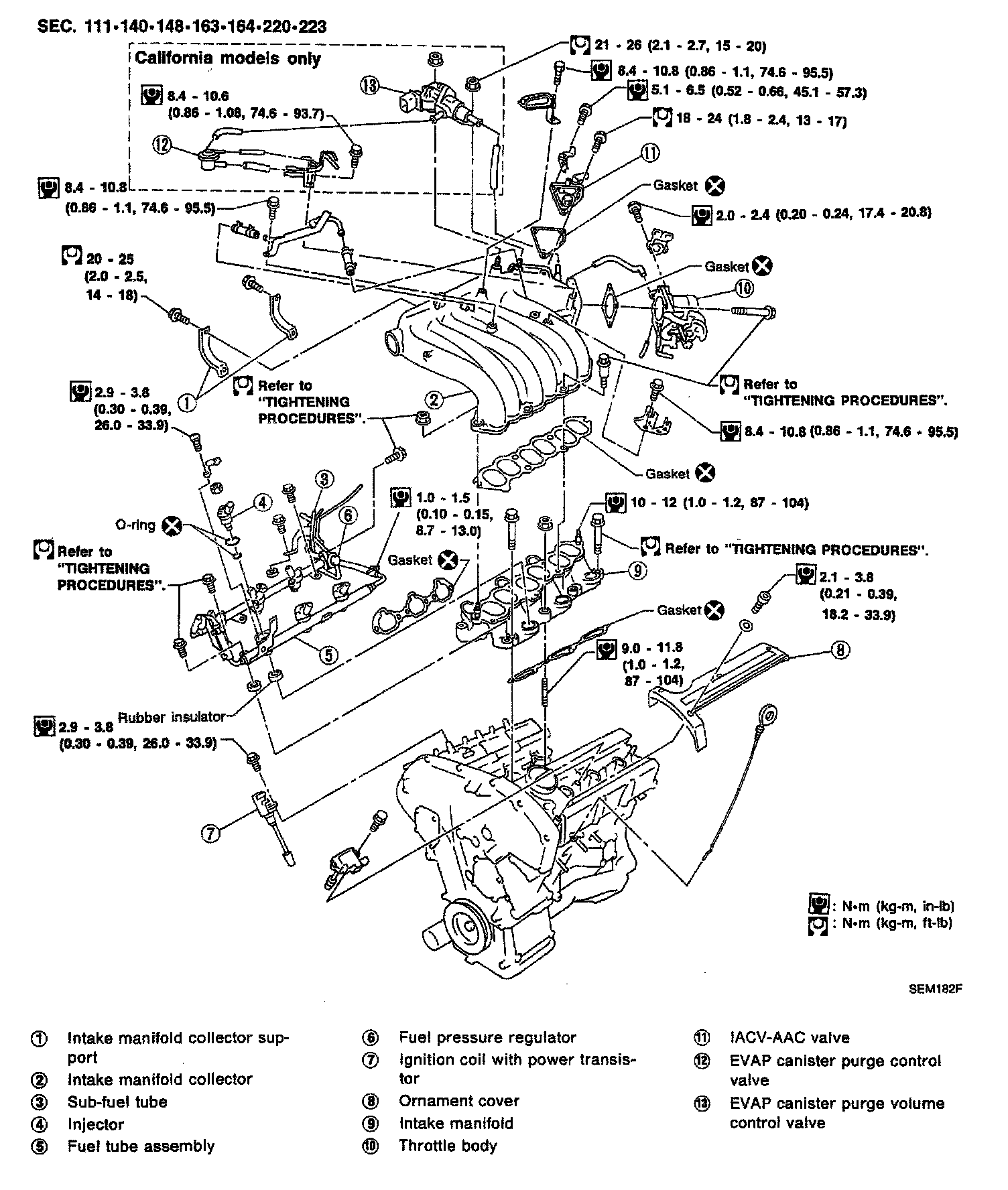

INTAKE TIGHTENING SEQUENCE

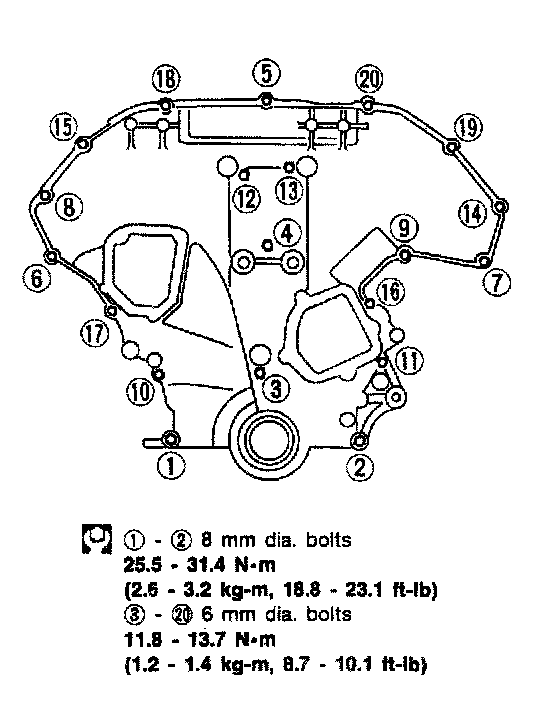

FRONT COVER TIGHTENING SEQUENCE

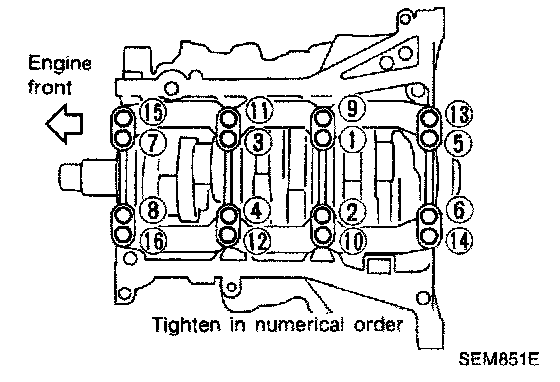

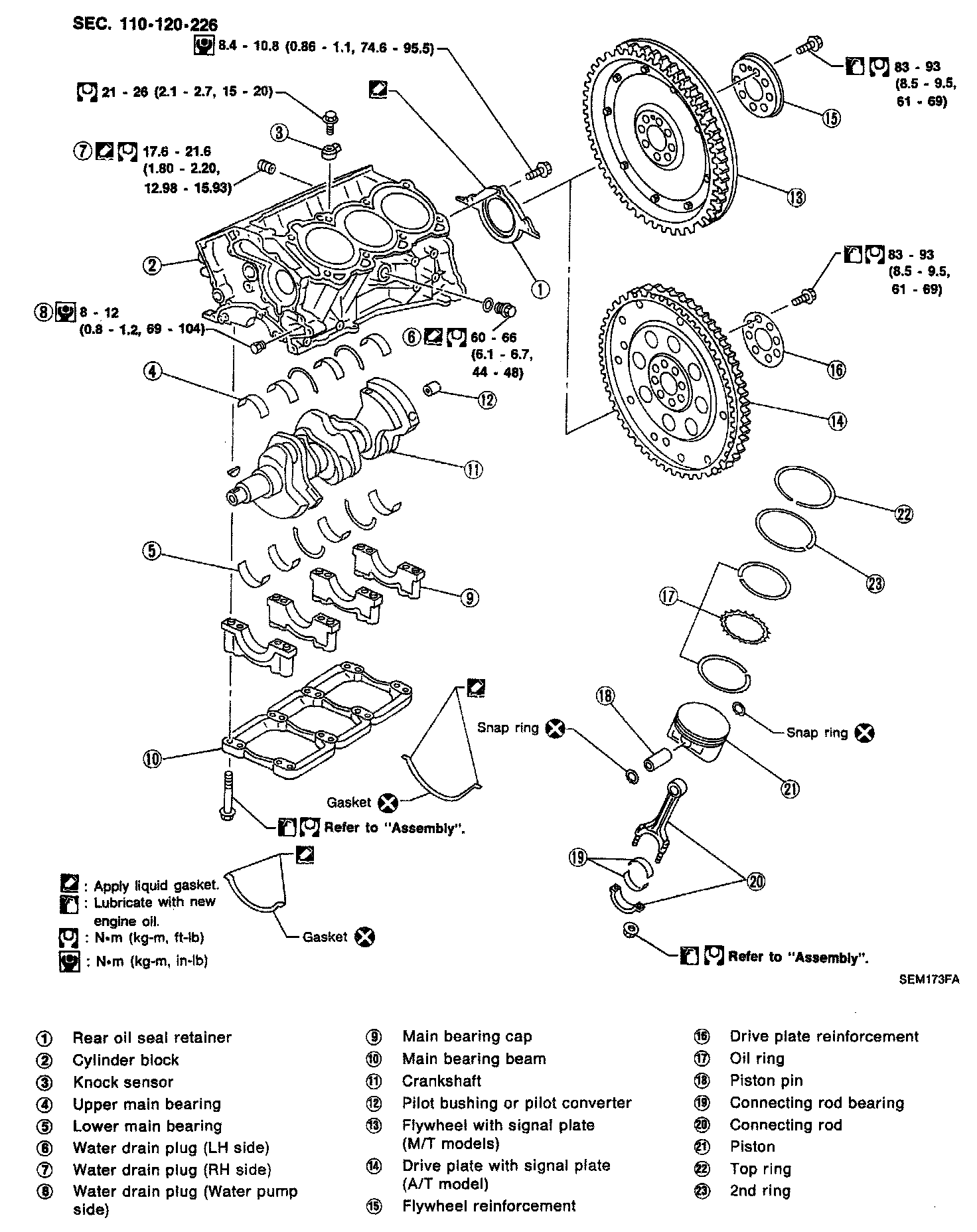

MAIN BEARING TIGHTENING SEQUENCE

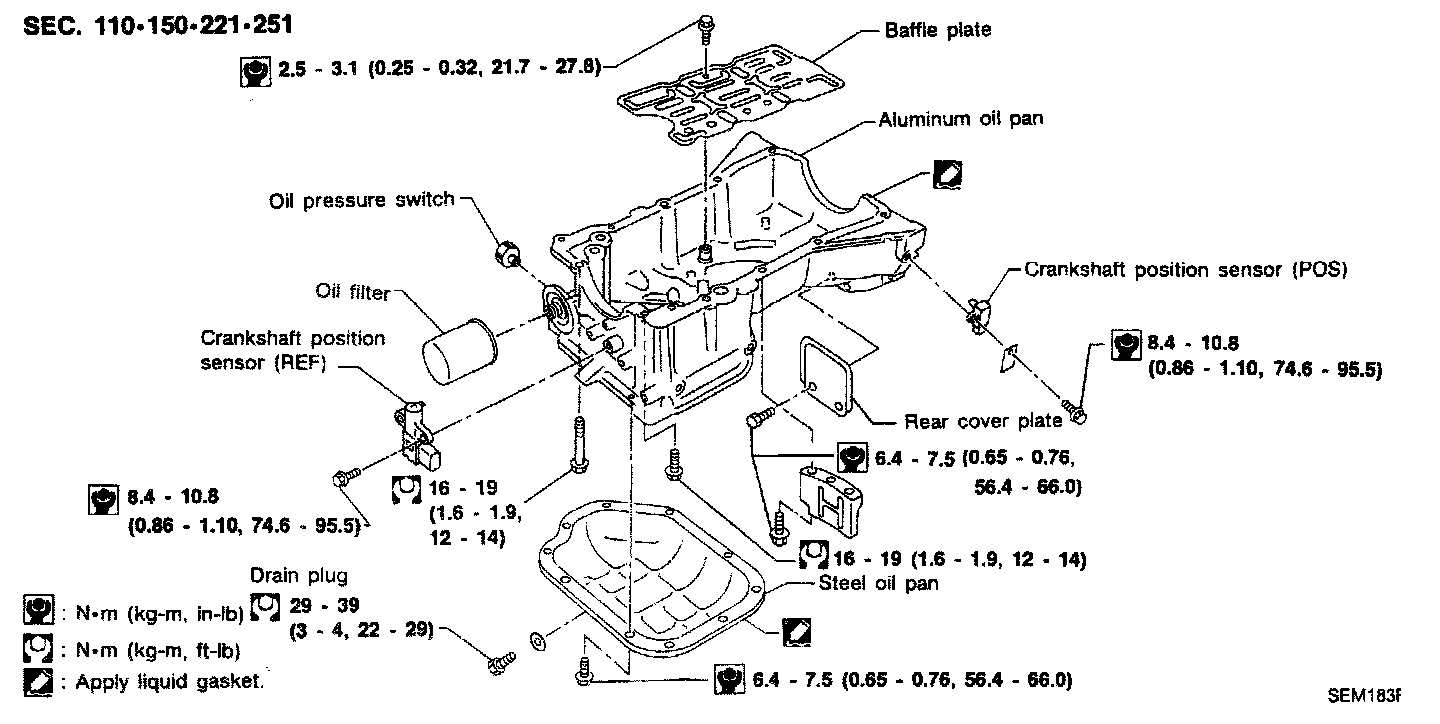

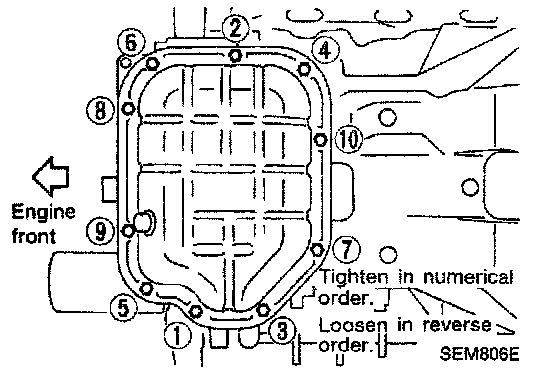

OIL PAN TIGHTENING SEQUENCE

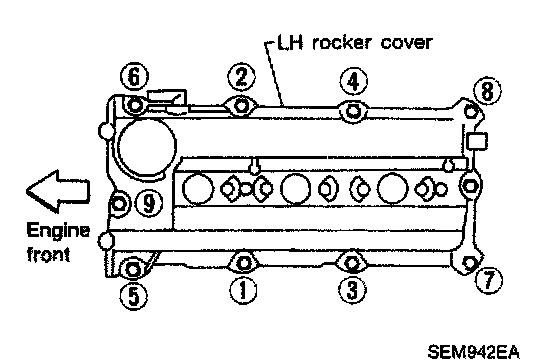

VALVE COVER TIGHTENING SEQUENCE
