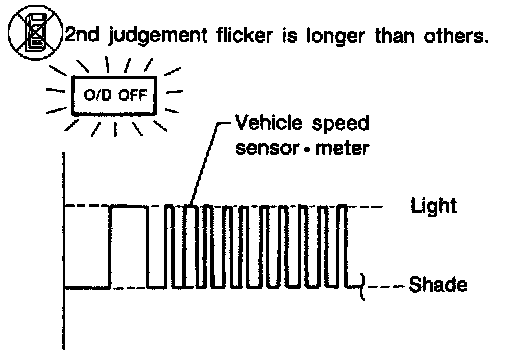

2ND Judgement Flicker

VEHICLE SPEED SENSOR MTR CIRCUIT CHECK

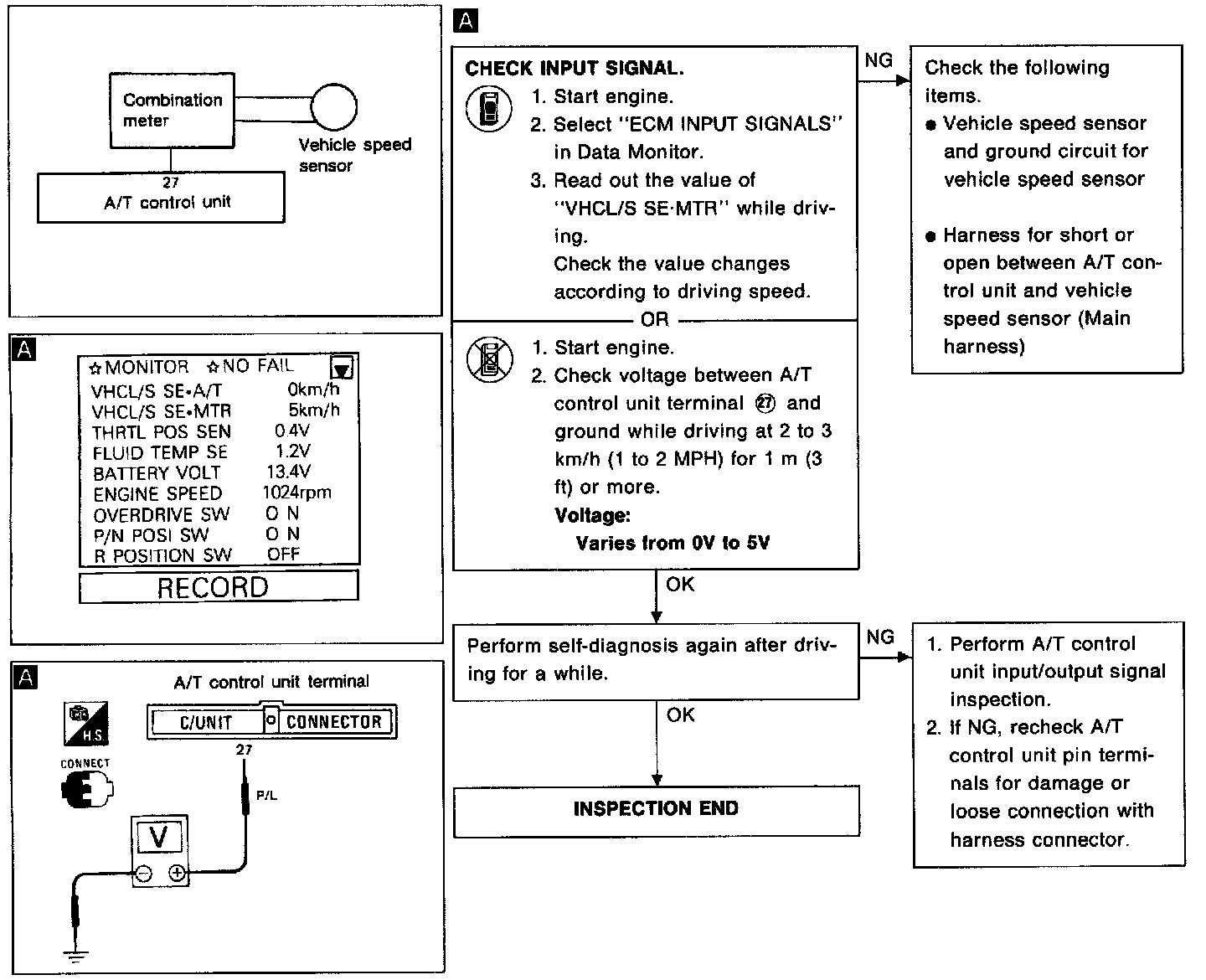

DIAGNOSTIC CHART




PARTS DESCRIPTION

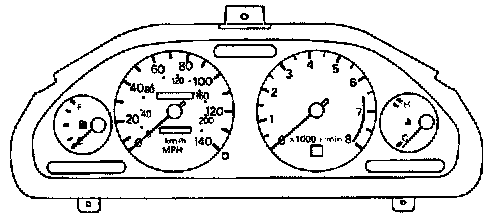

The vehicle speed sensor MTR is built into the speedometer assembly. The sensor functions as an auxiliary device to the revolution sensor when it is malfunctioning. The A/T control unit will then use a signal sent from the vehicle speed sensor MTR.

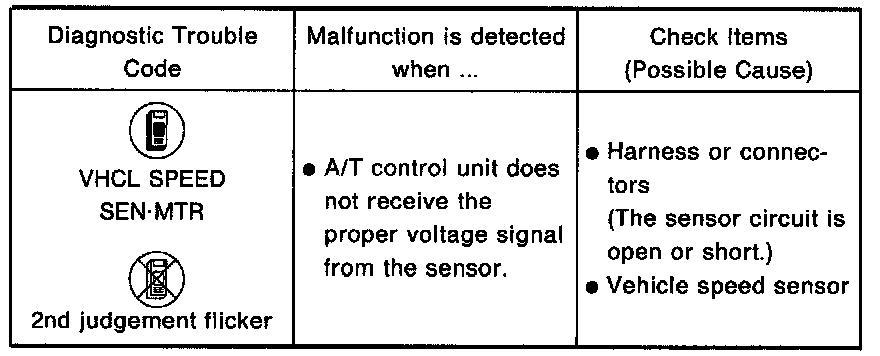

TROUBLE JUDGEMENT CONDITIONS

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE




CONSULT
1) Start engine.

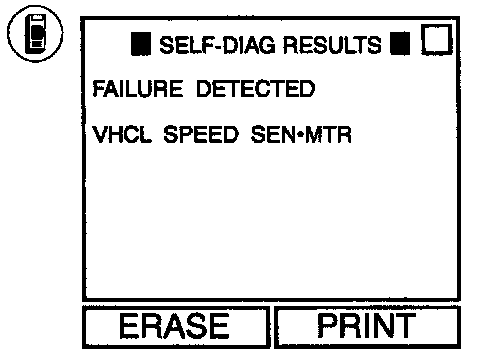

2) Select "SELF-DIAG RESULTS" mode with CONSULT.
3) Drive vehicle under the following conditions:
Selector lever in D and vehicle speed higher than 20 km/h (12 MPH).

OR




NO TOOLS
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in D and vehicle speed higher than 20 km/h (12 MPH).
3) Perform self-diagnosis.
