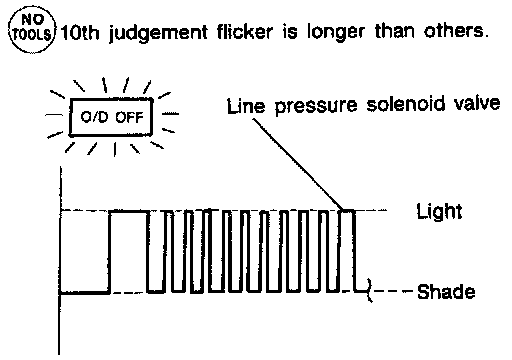

10TH Judgement Flicker

LINE PRESSURE SOLENOID VALVE CIRCUIT CHECK

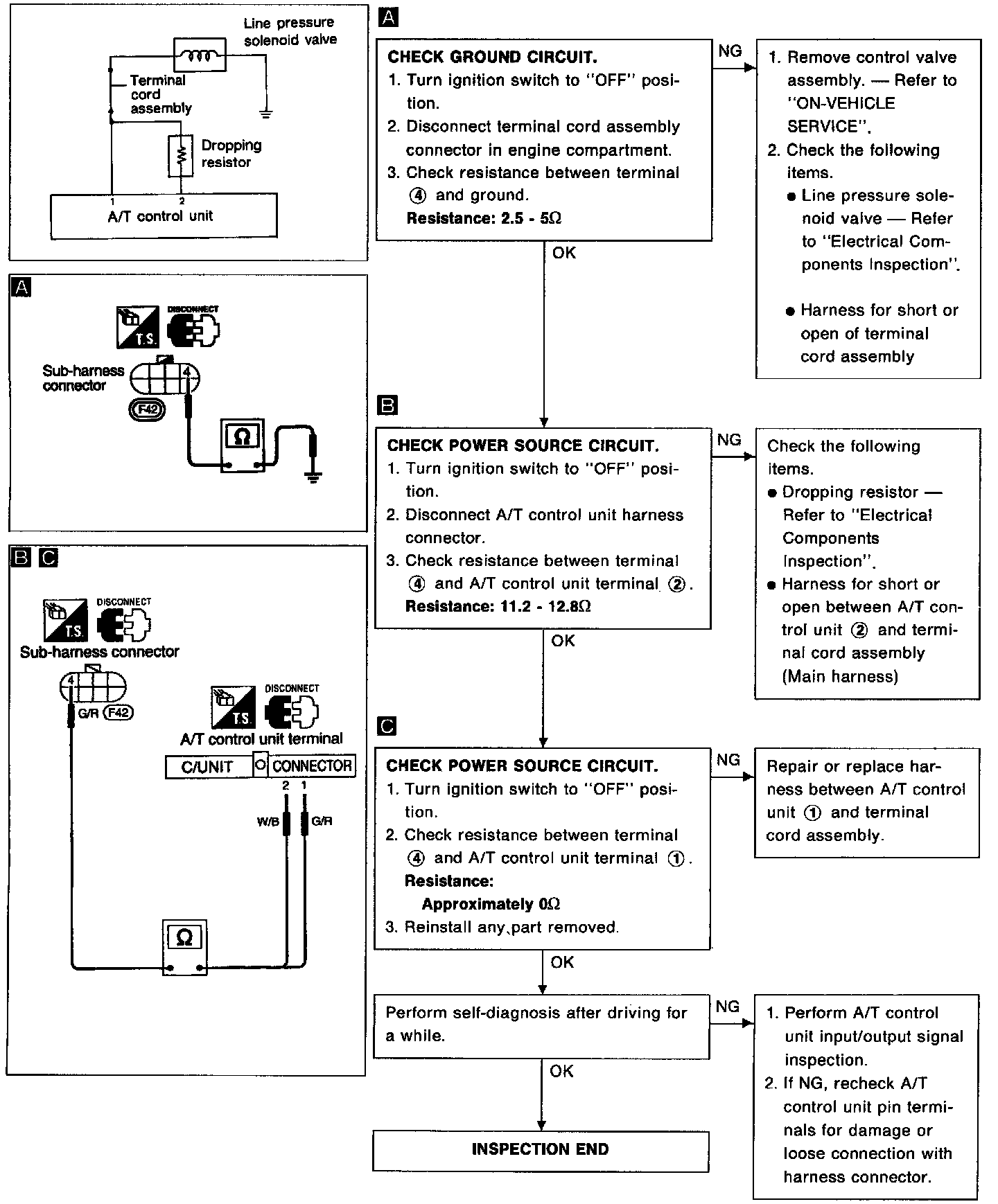

DIAGNOSTIC CHART

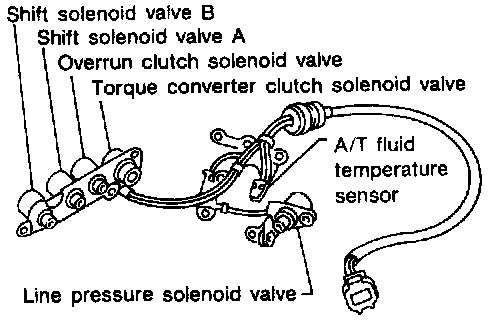

PARTS DESCRIPTION
The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the A/T control unit.

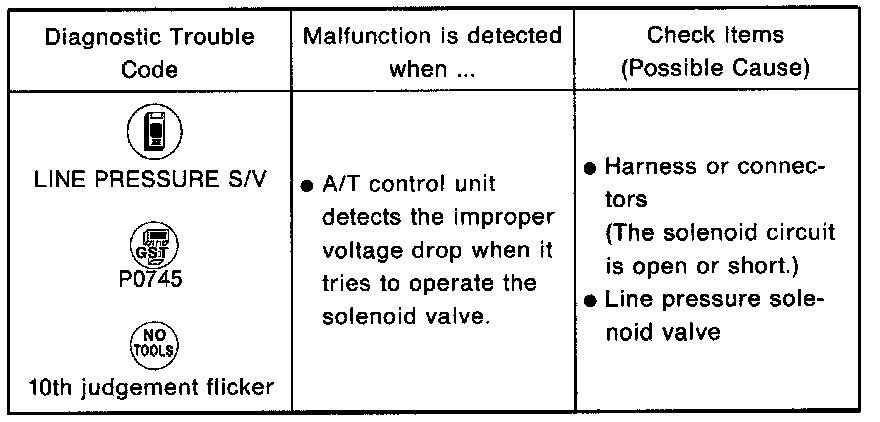

TROUBLE JUDGEMENT CONDITIONS

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE




CONSULT
1) Start engine.

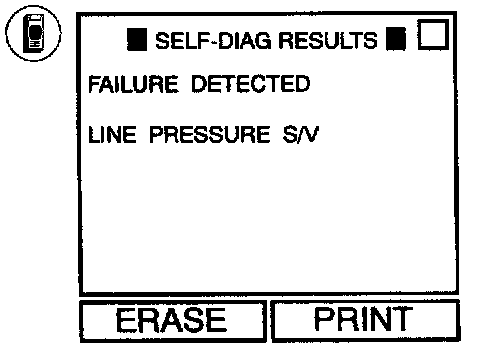

2) Select "SELF-DIAG RESULTS" mode with CONSULT.
3) With brake pedal depressed, shift the lever from P -> N -> D -> N -> P.

OR




GENERIC SCAN TOOL
1) Start engine.
2) With brake pedal depressed, shift the lever from P -> N -> D -> N -> P.

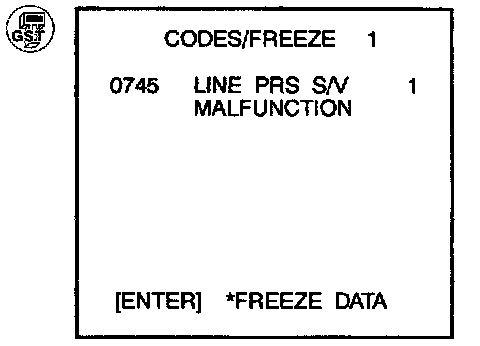

3) Select "MODE 3" with GST.

OR




NO TOOLS
1) Start engine.
2) With brake pedal depressed, shift the lever from P -> N -> D -> N -> P.
3) Perform self-diagnosis.
