Shift Schedule

SHIFT SCHEDULE

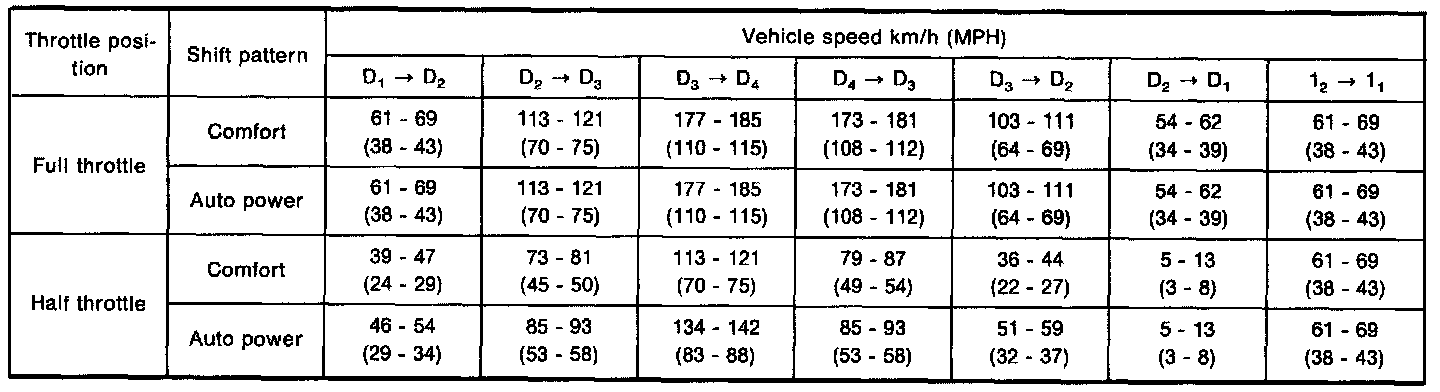

VEHICLE SPEED WHEN SHIFTING GEARS




VEHICLE SPEED WHEN PERFORMING LOCK-UP (Reference value)
NOTE:
- Lock-up vehicle speed indicates the speed in D4 position.
- Make sure that lock-up is released under the following conditions:
Throttle opening 0/8
Vehicle speed is less than 120 km/h (75 MPH).
- Perform lock-up inspection after warming up engine.
- Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
