Cruise Test

Without CONSULT

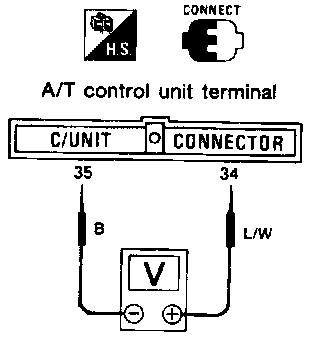

Throttle position can be checked by voltage across terminals (34) and (35) of A/T control unit.

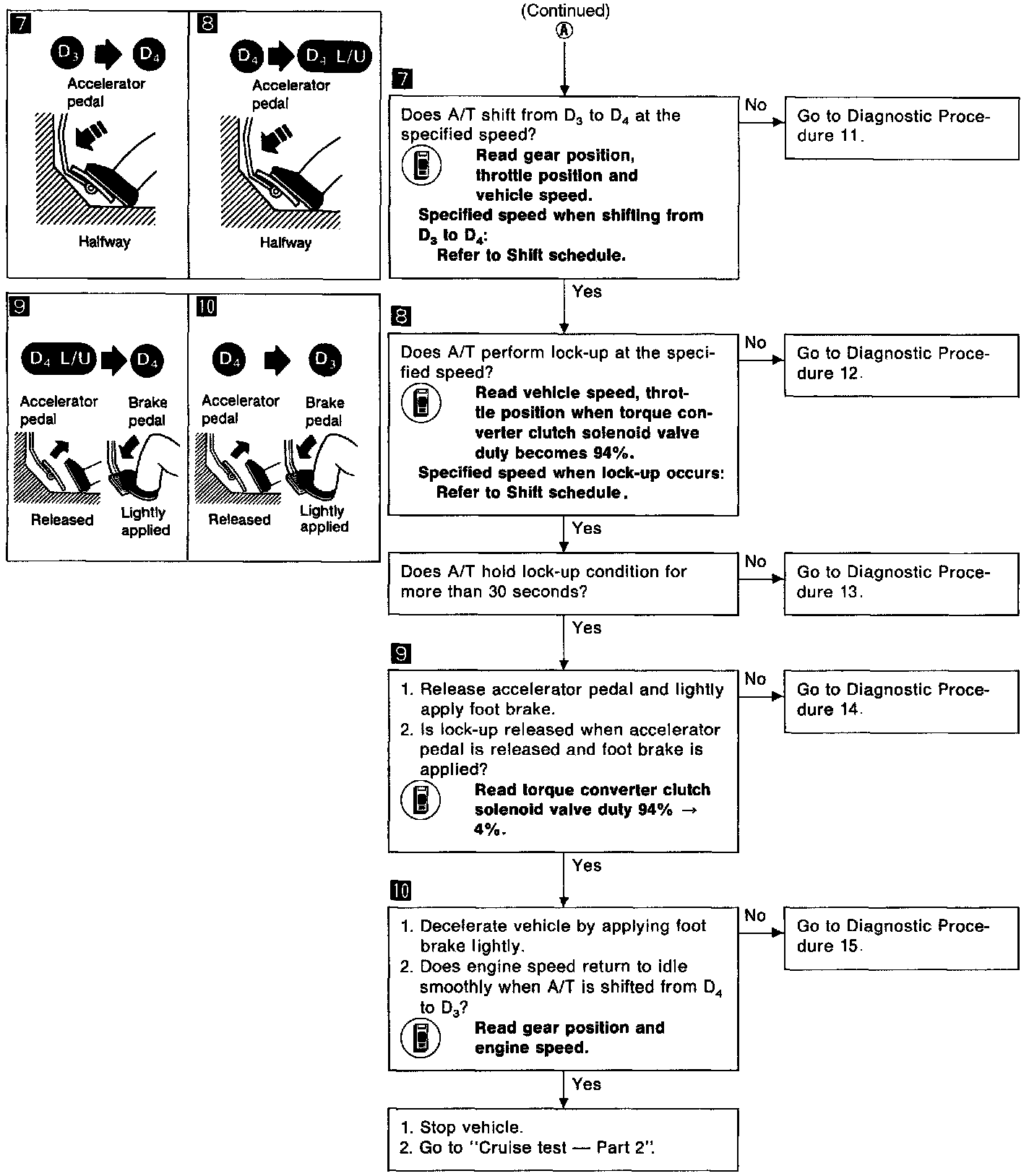

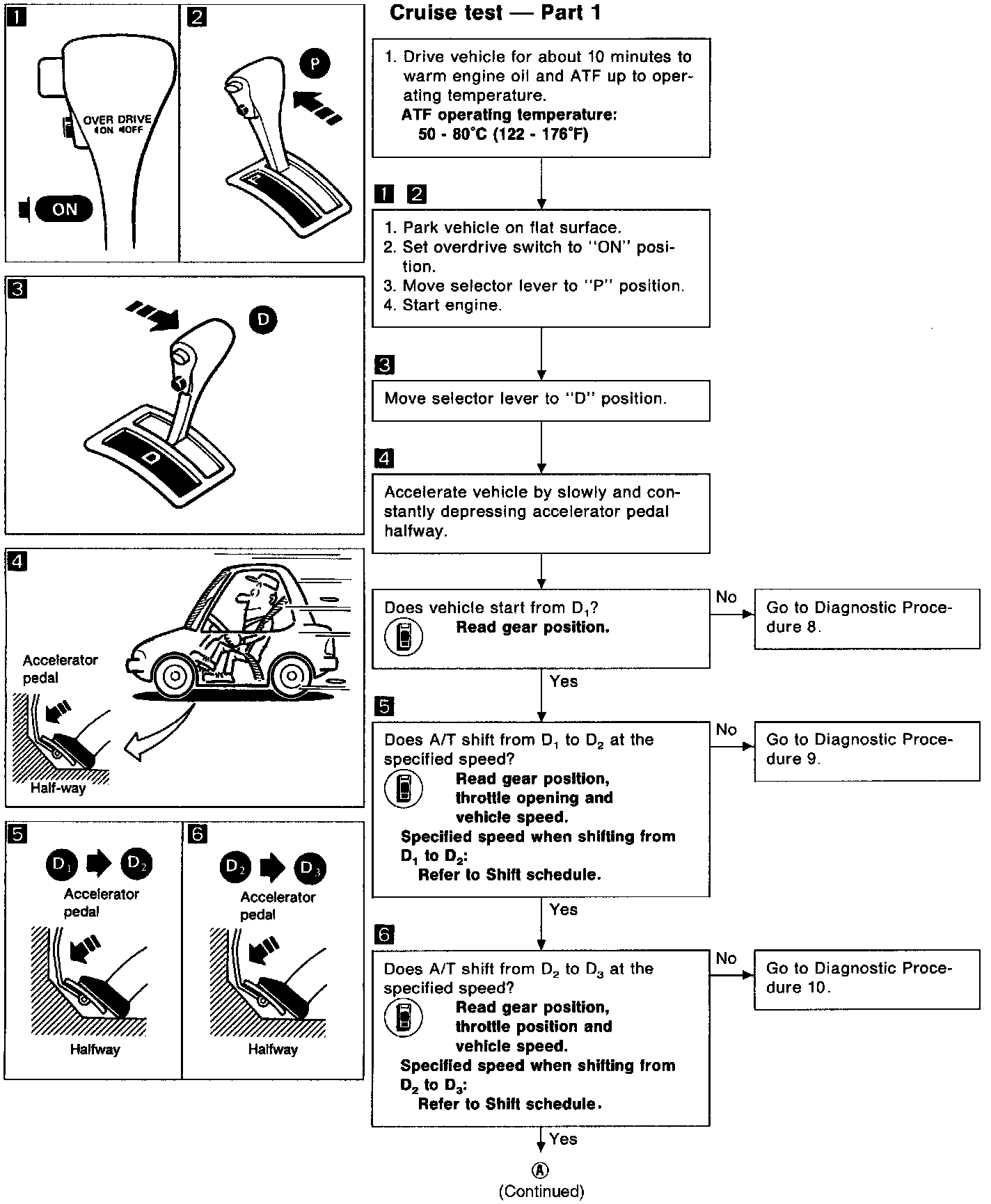

CRUISE TEST - PART 1

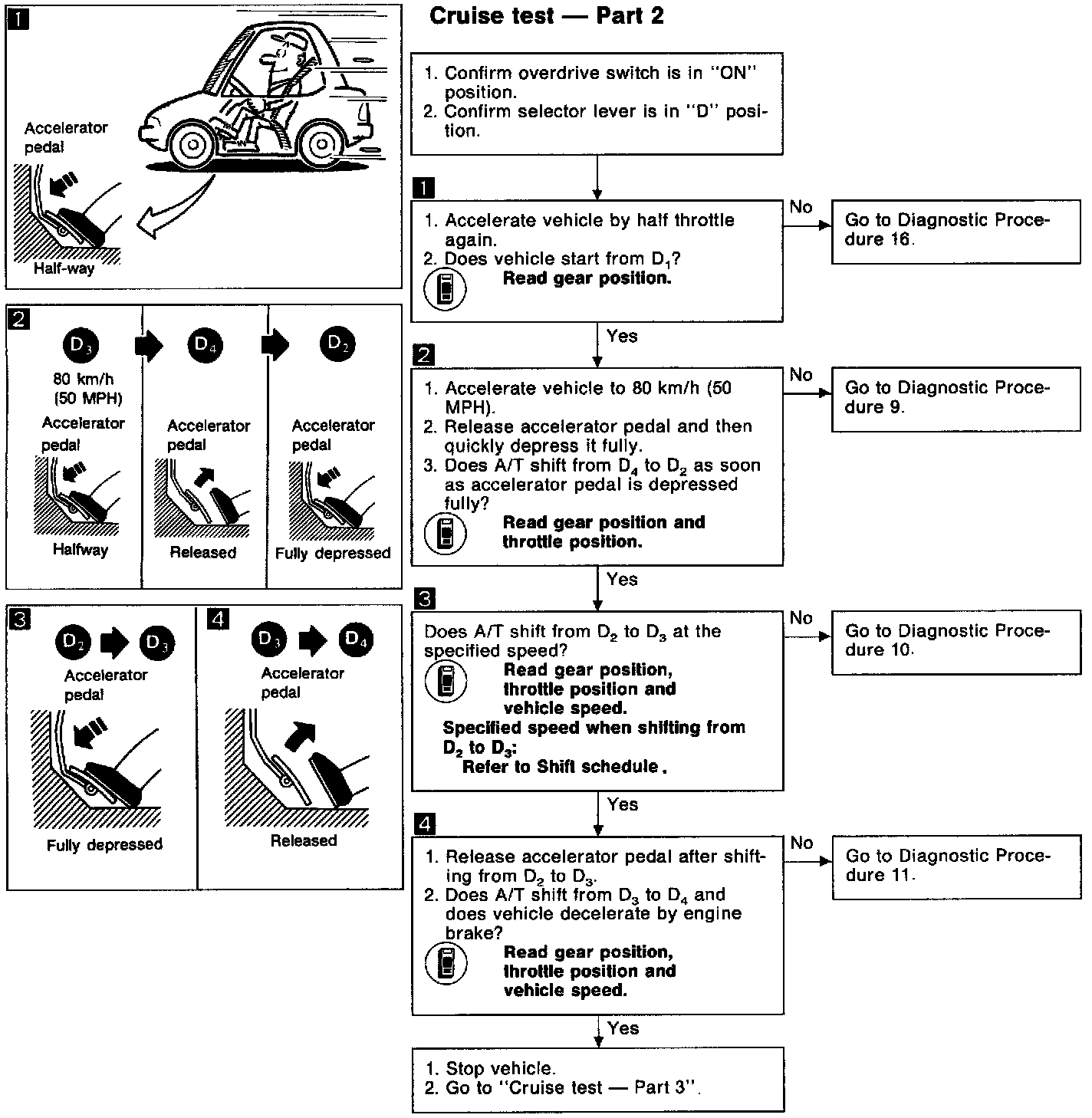

CRUISE TEST - PART 2

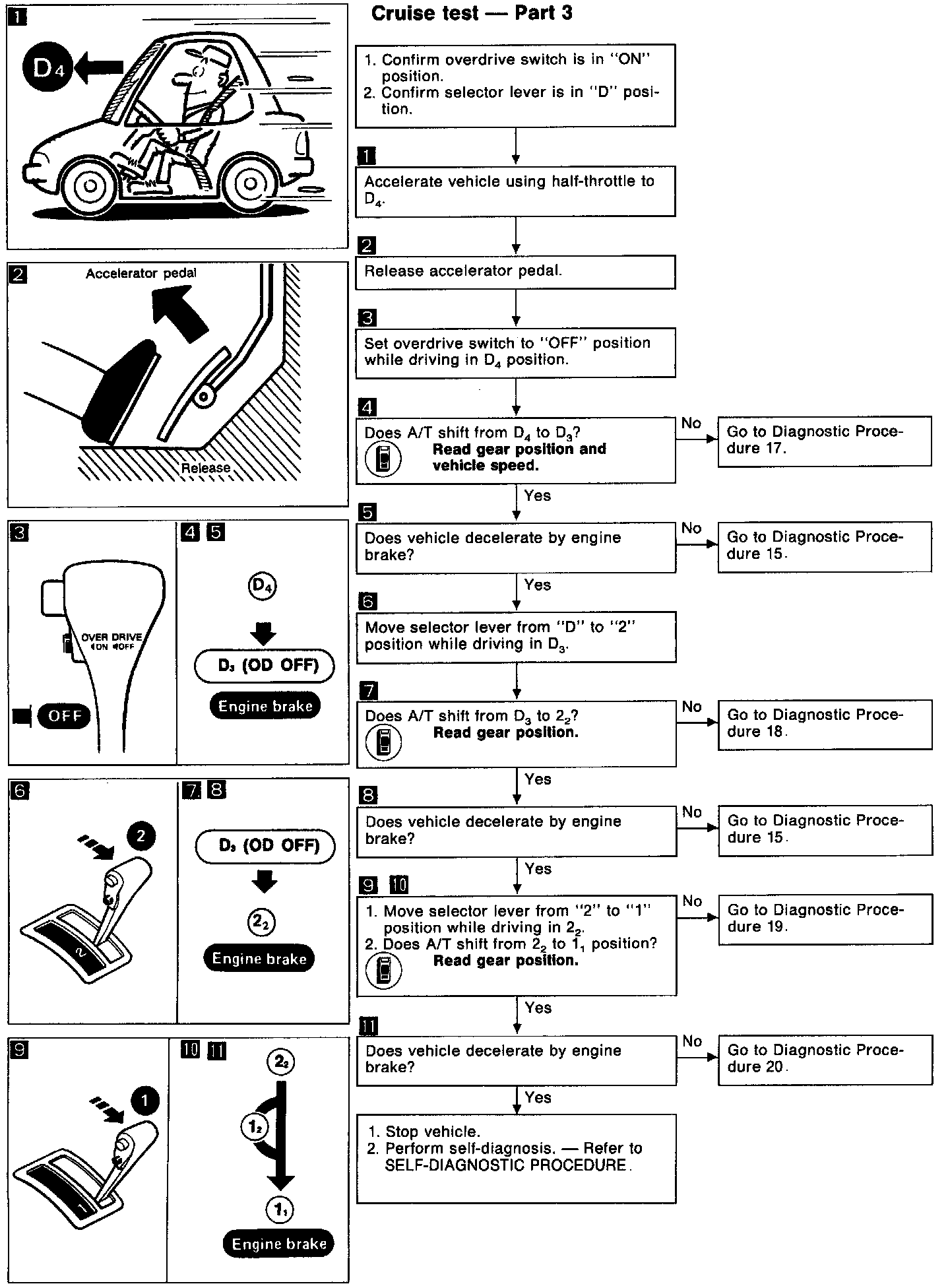

CRUISE TEST - PART 3
