Automatic Transmission Schematic

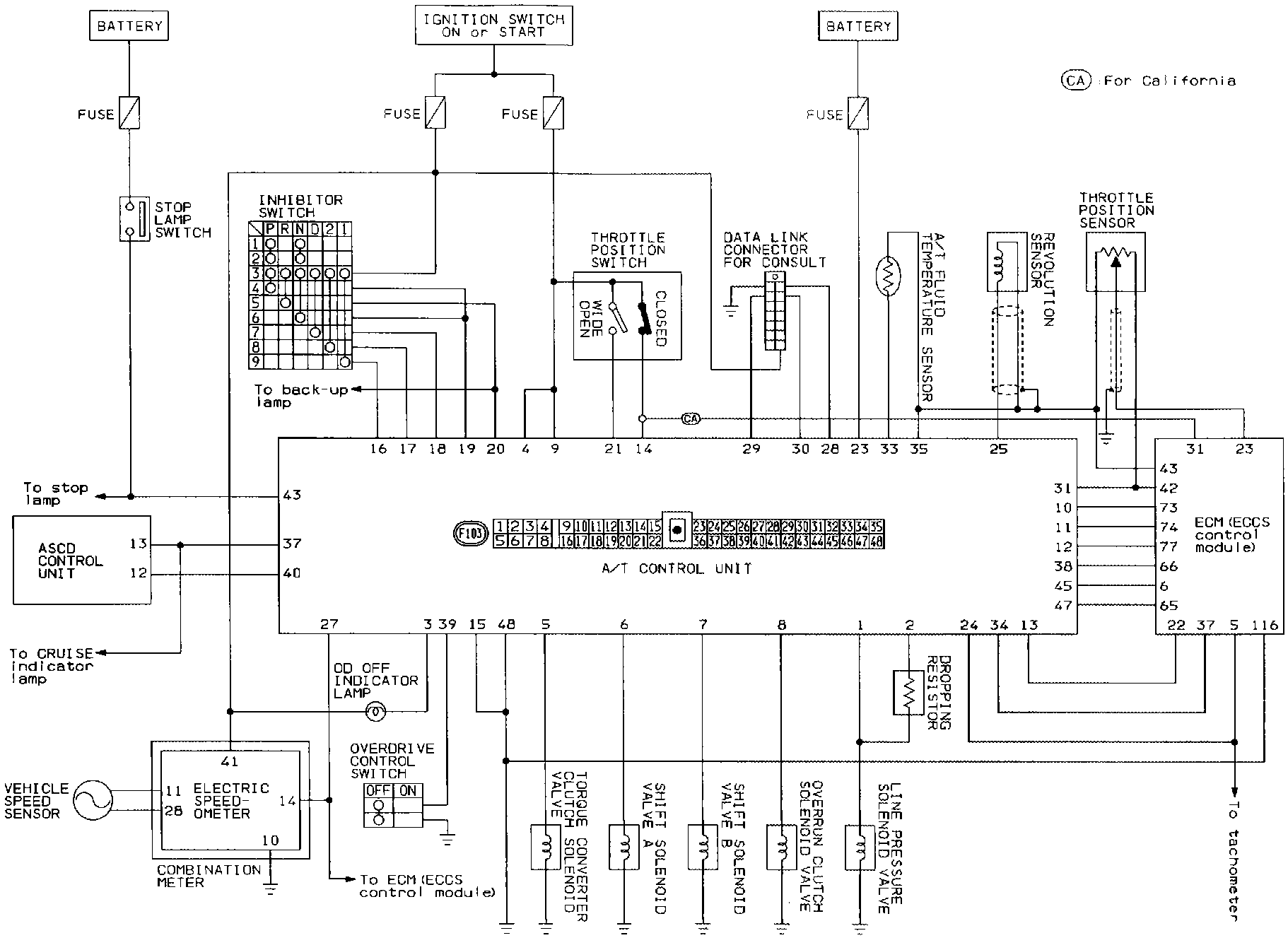

Circuit Diagram For Quick Pinpoint Check:




CIRCUIT DIAGRAM FOR QUICK PINPOINT CHECK
