Ignition Coil: Testing and Inspection

Ignition coil with power transistor

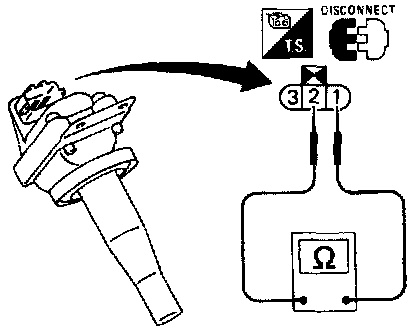

1. Disconnect ignition coil with power transistor harness connector.

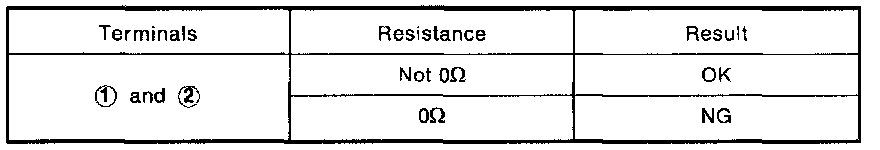

2. Check ignition coil with power transistor for resistance between terminals (1) and (2).
