Lean Side

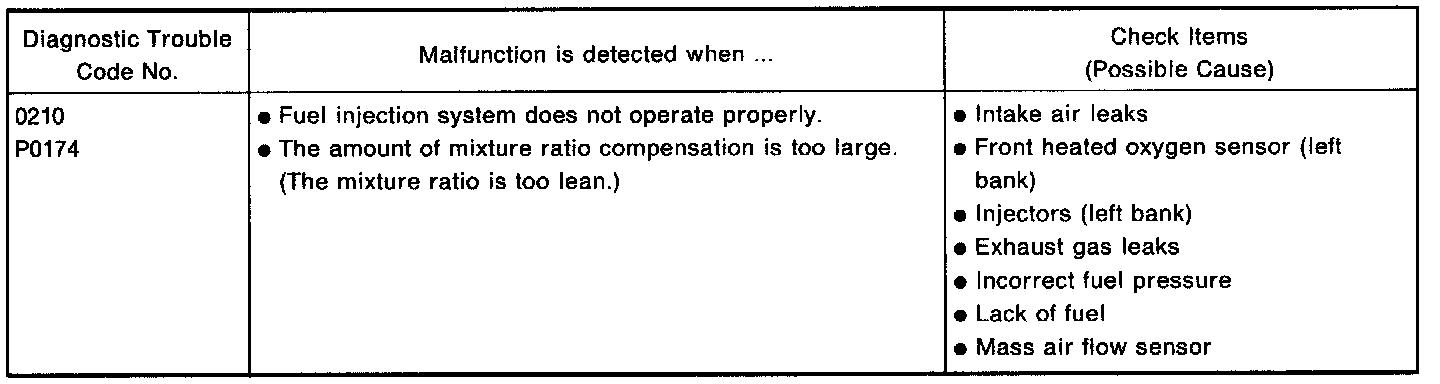

DIAGNOSTIC CHART




DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE (Overall)
CONSULT
1) Start engine and warm it up sufficiently.
2) Turn ignition switch "OFF" and wait for at least 5 seconds.

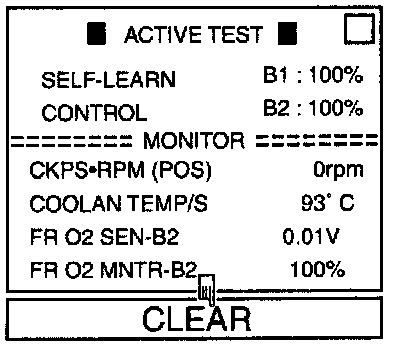

3) Turn ignition switch "ON" and select "SELF-LEARN CONTROL" in "ACTIVE TEST" mode with CONSULT.




4) Clear the self-learning control coefficient by touching "CLEAR".
5) Select "DATA MONITOR" mode with CONSULT.
6) Start engine again and wait for at least 10 minutes at idle speed.
The DTC 0210 should be detected at this stage, if a malfunction exists.
7) If it is difficult to start engine at step 6, the fuel injection system has a malfunction, too.

OR




NO TOOLS

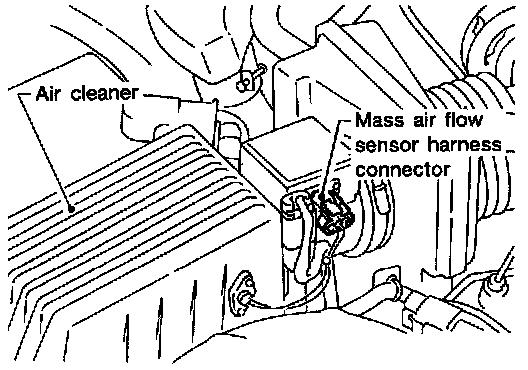

1) Disconnect mass air flow sensor harness connector.
2) Start engine and run it for at least 3 seconds at idle speed.
3) Stop engine and reconnect mass air flow sensor harness connector.
4) Turn ignition switch "ON".
5) Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM. Make sure DTC 0102 is detected.
6) Erase the DTC 0102 by changing from Diagnostic Test Mode II to Diagnostic Test Mode I.
7) Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM. Make sure DTC 0505 is detected.
8) Start engine again and wait for at least 10 minutes at idle speed.
The DTC 0210 should be detected at this stage, if a malfunction exists.
9) If it is difficult to start engine at step 8, the fuel injection system also has a malfunction.

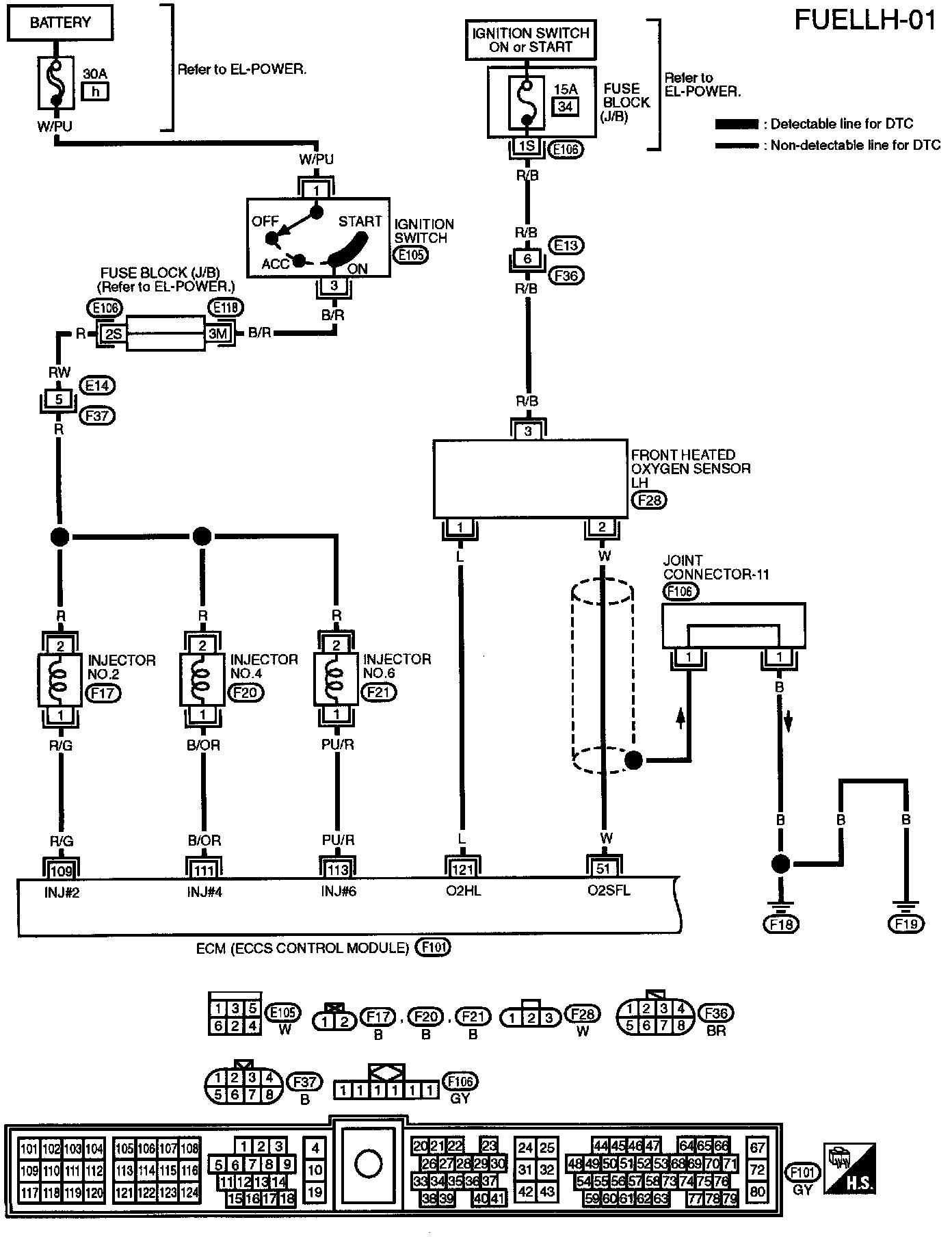

WIRING DIAGRAM
