Location

DIODE No. 3

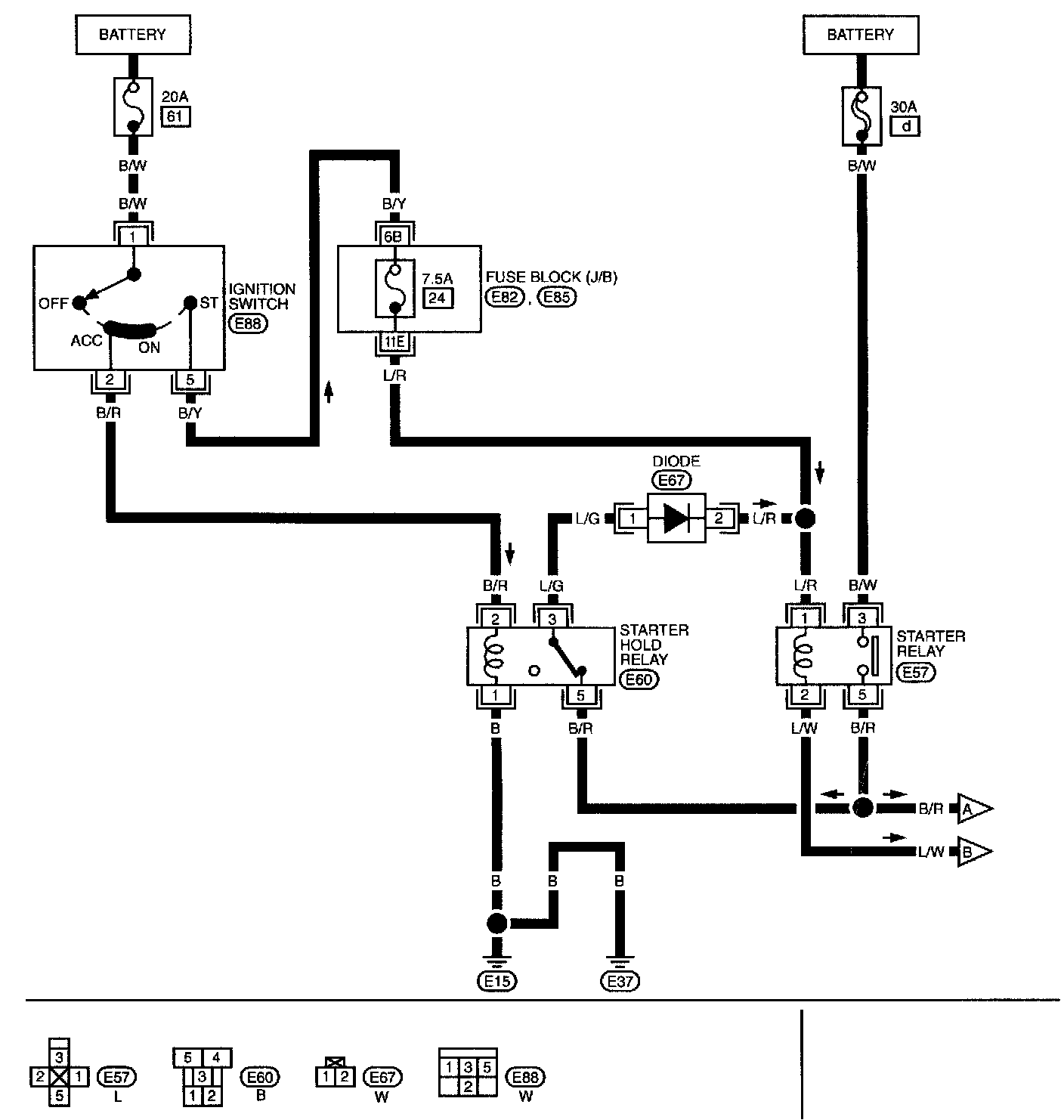

Diode No. 3 located between the starter relay and starter hold relay. Cathode to pin 1 of the starter relay and anode to pin 3 of the starter hold relay. wire color light blue/red stripe. Location, relay box, engine compartment right front fender.
