Ignition Key, Light and Seat Belt Warning Control

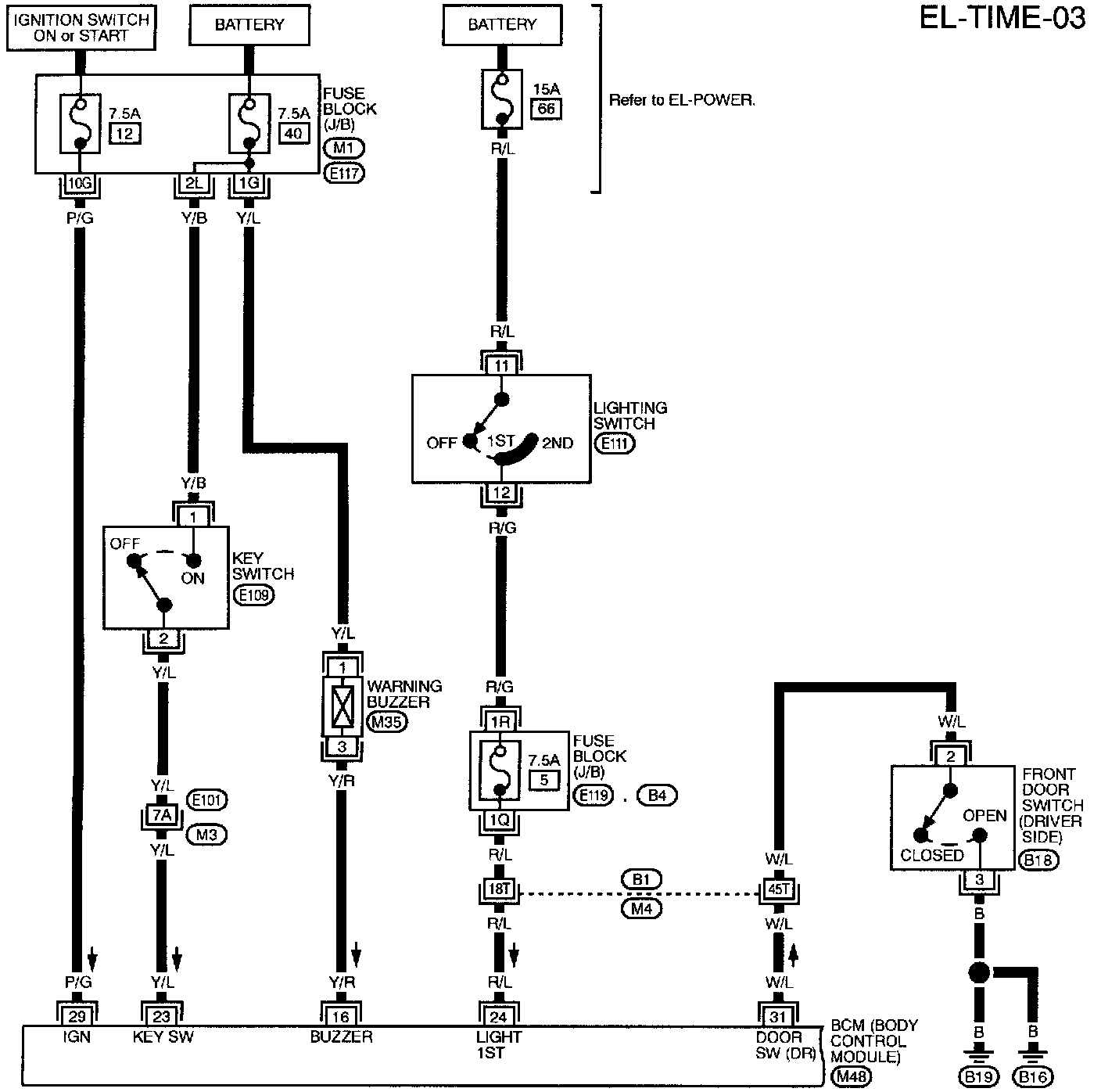

EL-TIME-03 Ignition Key, Light And Seat Belt Warning Control (Part 1 Of 2):

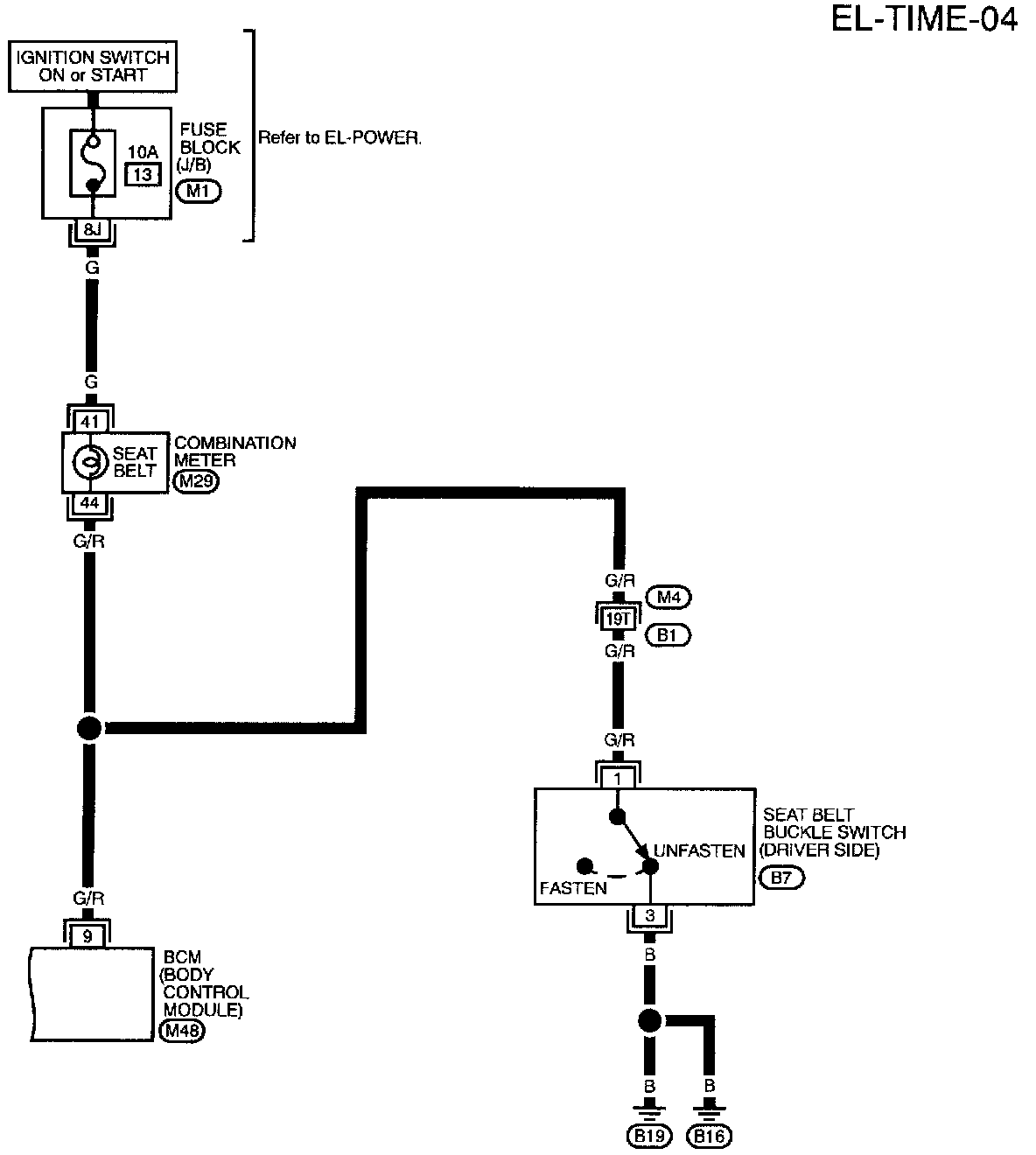

EL-TIME-04 Ignition Key, Light And Seat Belt Warning Control (Part 2 Of 2):
