Diagnostic Procedure 2

Diagnostic Procedure 2:

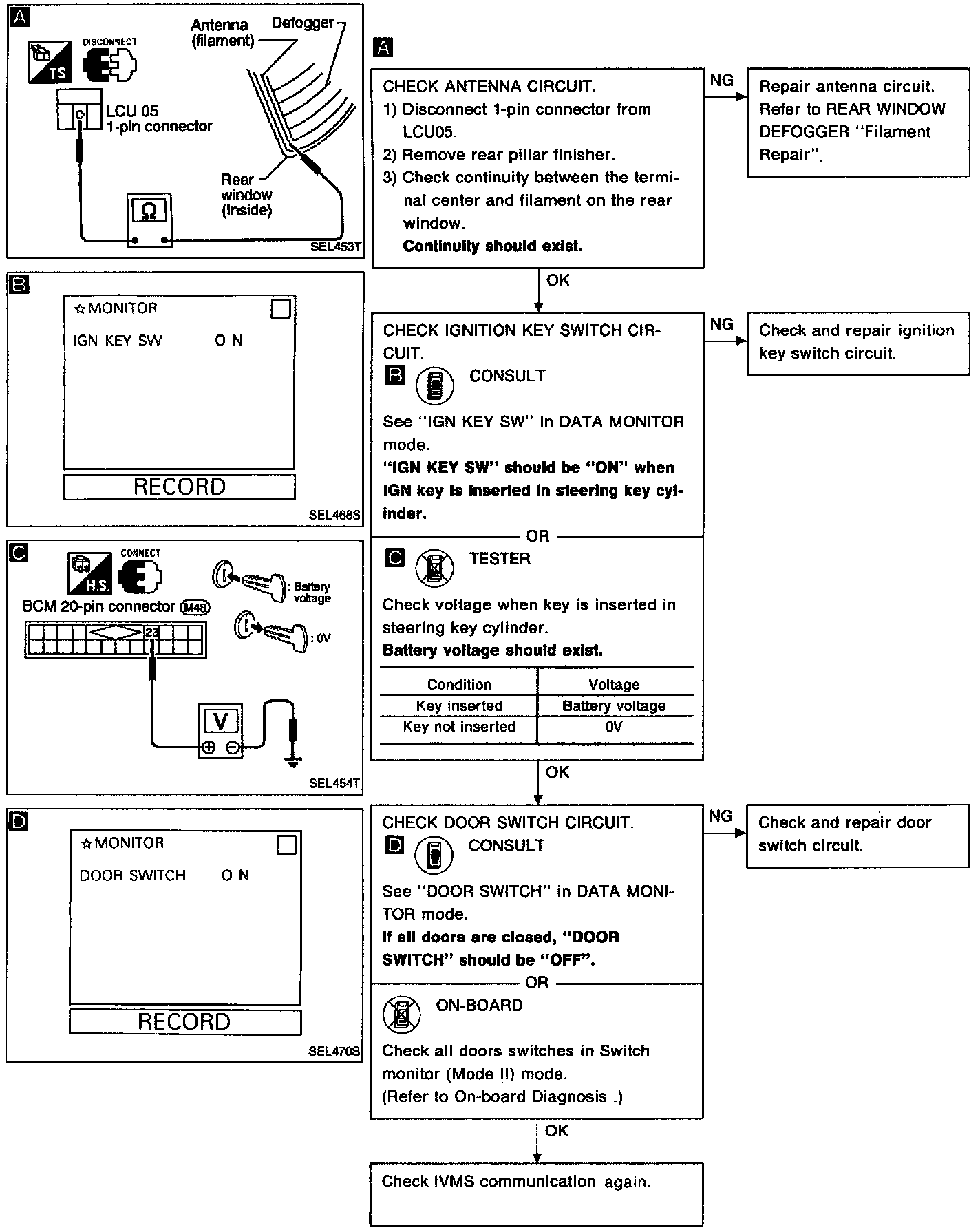

Perform "IVMS Communication Diagnosis", "Power Supply and Ground Circuit Check" before starting with multi-remote control system diagnostic procedure.
Note:The multi-remote control system does not activate with the ignition key inserted in the ignition key cylinder.
