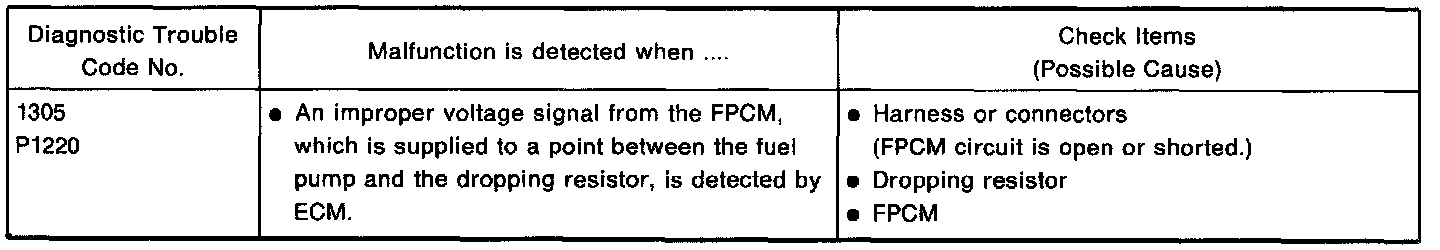

Code 1305

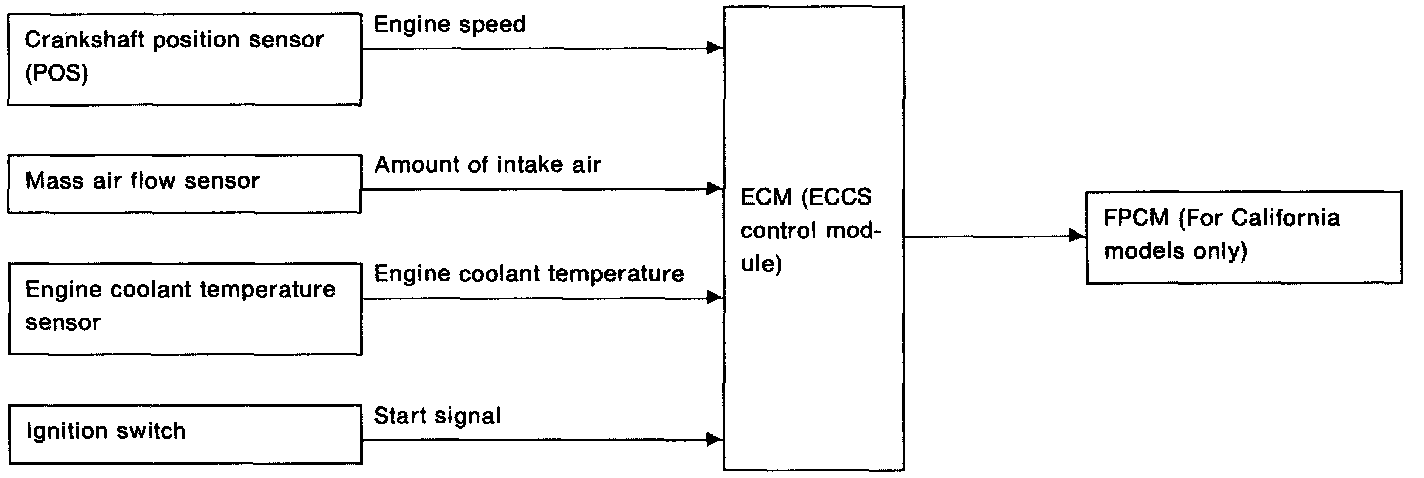

SYSTEM DESCRIPTION

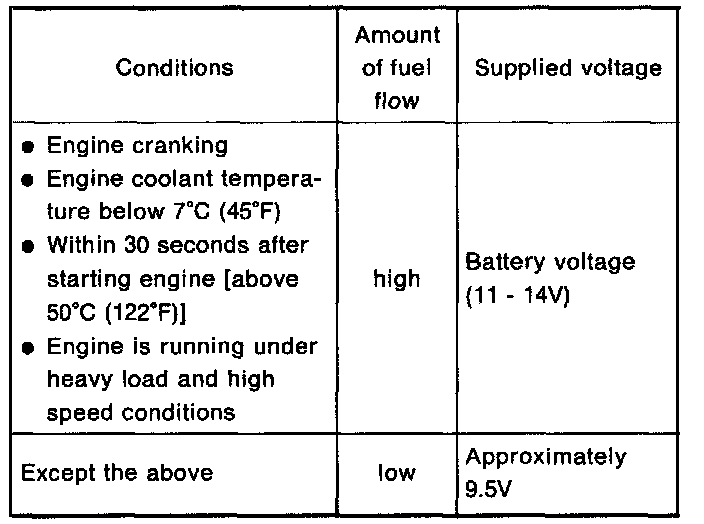

This system controls the fuel pump operation. The amount of fuel flow delivered from the fuel pump is altered between two flow rates by the FPCM operation. The FPCM determines the voltage applied to the fuel pump (and therefore fuel flow) according to the following conditions.
COMPONENT DESCRIPTION

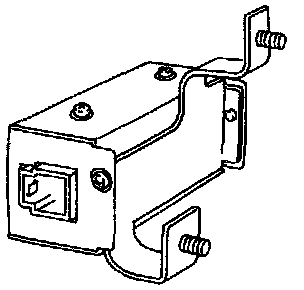

The FPCM adjusts the voltage supplied to the fuel pump to control the amount of fuel flow. When the FPCM increases the voltage supplied to the fuel pump, the fuel flow is raised. When the FPCM decreases the voltage, the fuel flow is lowered.

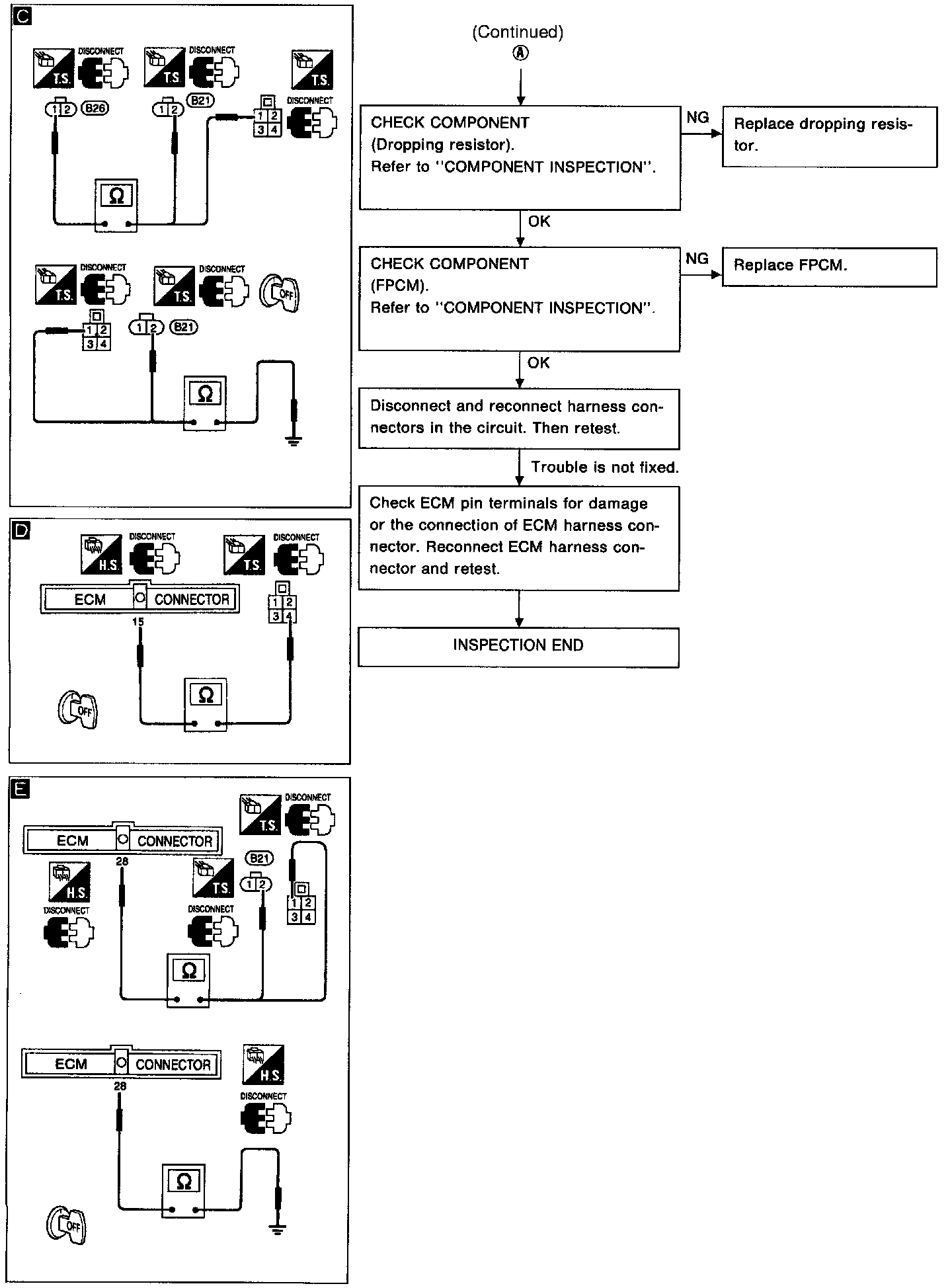

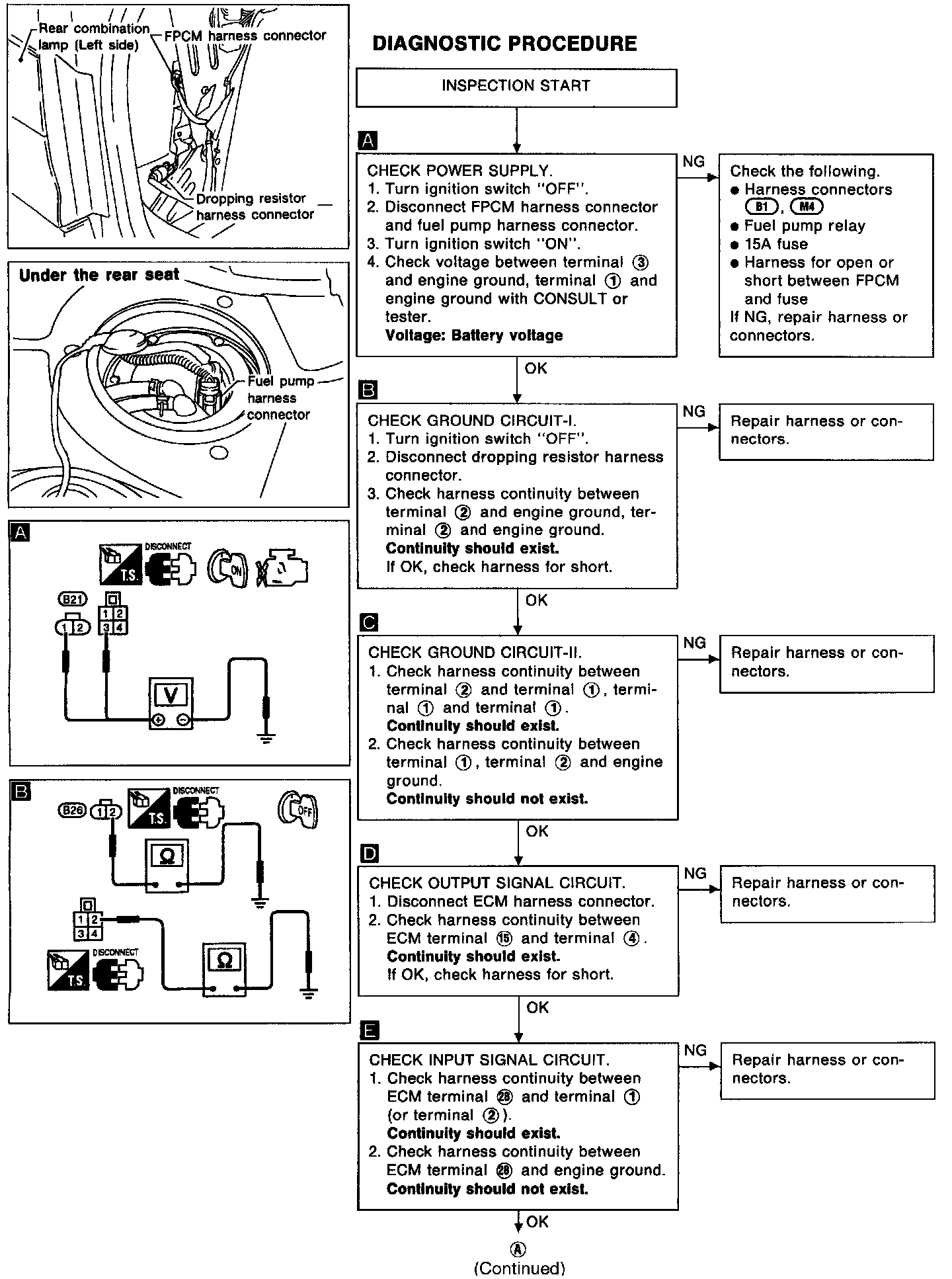

DIAGNOSTIC CHART
OVERALL FUNCTION CHECK
CONSULT
This procedure can be used for checking the overall function of the FPCM circuit. During this check, a DTC might not be confirmed.
1) Start engine.

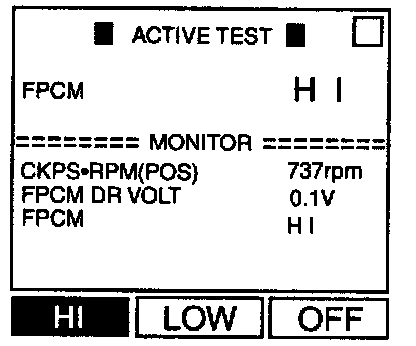

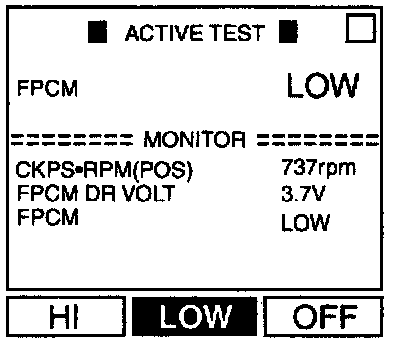

2) Select "FPCM" in "ACTIVE TEST" mode with CONSULT.
3) Touch "HI" then "LOW" respectively.

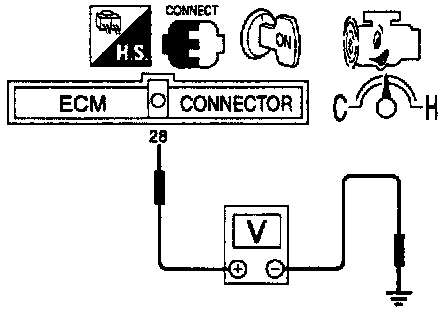

4) Check voltage between ECM terminal (28) and ground.
HI: Approximately 0V
LOW: Approximately 3.7V
OR
NO TOOLS
1) Start engine and warm it up sufficiently.
2) Turn ignition switch "OFF" and wait for at least 5 seconds.
3) Start engine and let it idle.
4) Check voltage between ECM terminal (28) and ground.
Within 30 seconds of starting engine: Approx. 0V
More than 30 seconds after starting engine: Approx. 3.7V
COMPONENT INSPECTION
CONSULT
1. Start engine and let it idle.

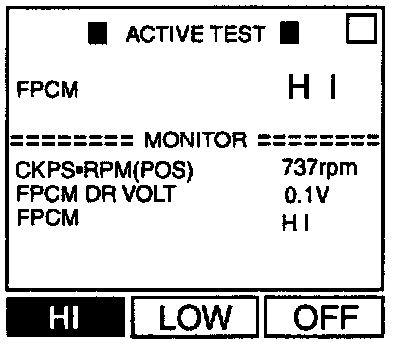

2. Perform "FPCM" in "ACTIVE TEST" mode with CONSULT.
3. Make sure of the following.
- When selecting "HI", "FPCM DR VOLT" indicates approximately 0V.
- When selecting "LOW", "FPCM DR VOLT" indicates approximately 3.7V.
4. If NG, replace FPCM.
OR
NO TOOLS
1. Start engine and warm it up sufficiently.
2. Turn ignition switch "OFF" and wait for at least 5 seconds.
3. Start engine and let it idle.
4. Check voltage between terminals (1) and (2).
Within 30 seconds of starting engine: Approx. 0V
More than 30 seconds after starting engine: Approx. 3.7V
5. If NG, replace FPCM.
Dropping resistor
Check resistance between terminals (1) and (2).
Resistance: Approximately 0.9 Ohms at 25°C (77°F)

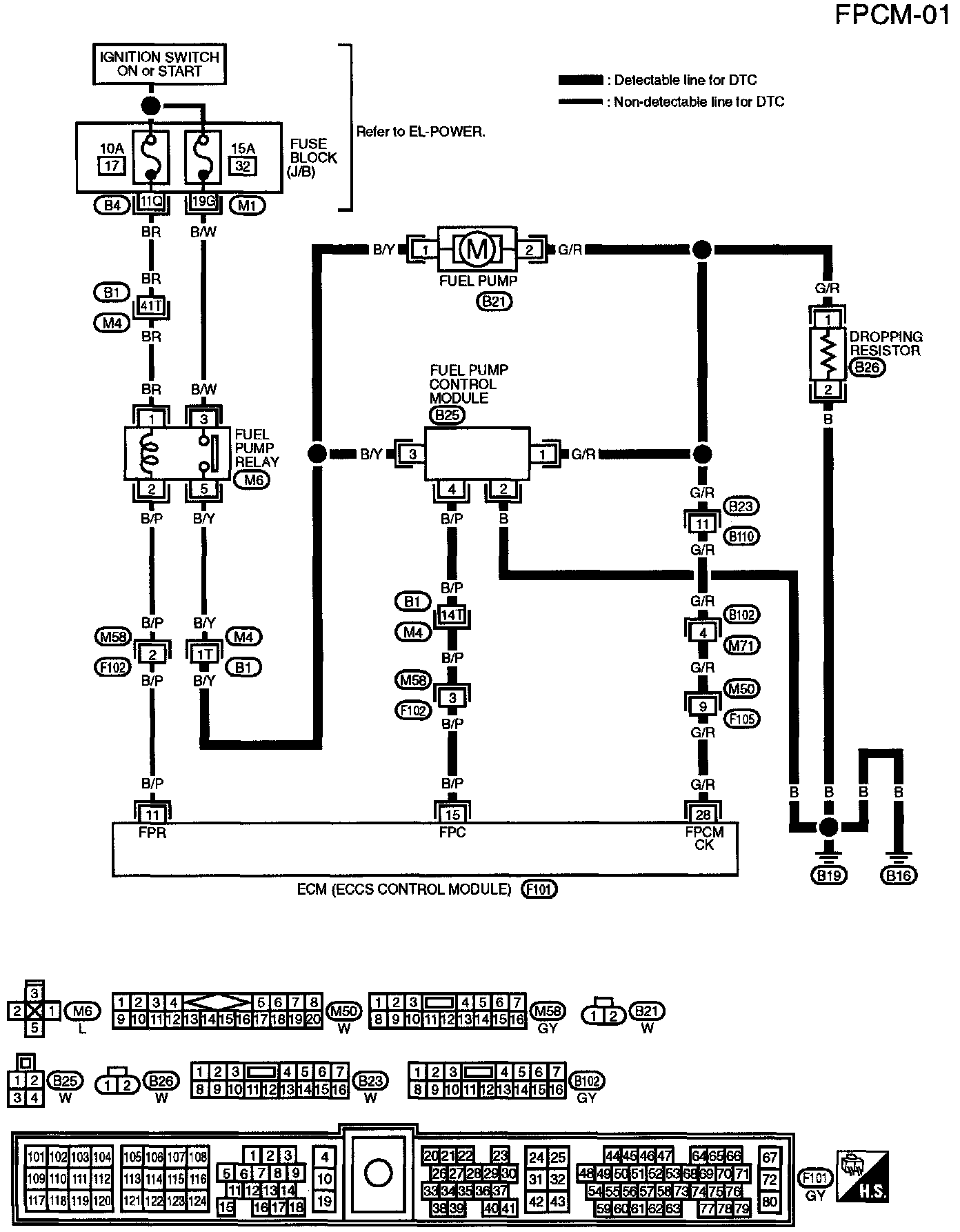

WIRING DIAGRAM
