A/T Related Codes

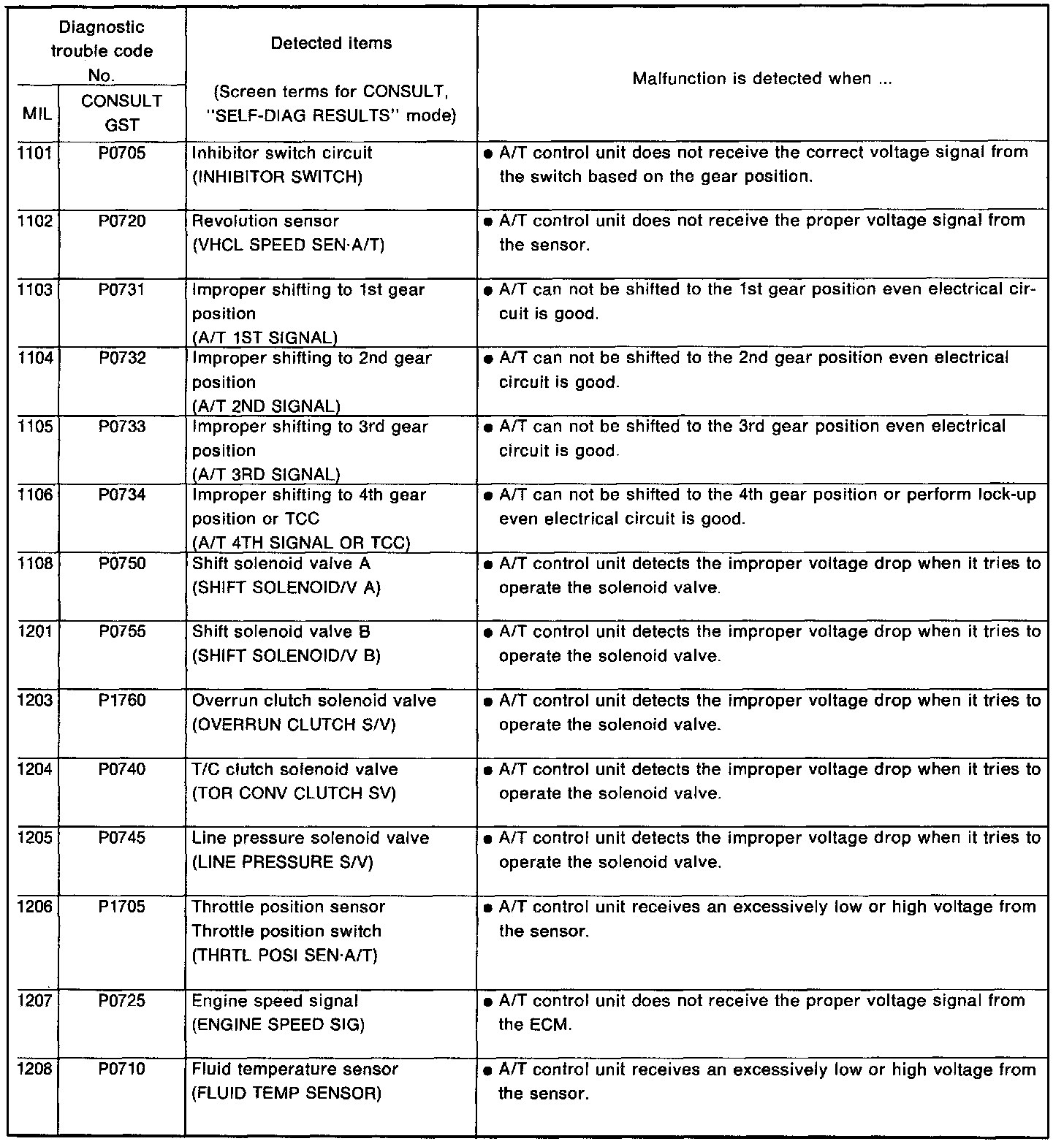

A/T RELATED ITEMS (Be sure to erase the DTC stored in ECM after the A/T related repair.)

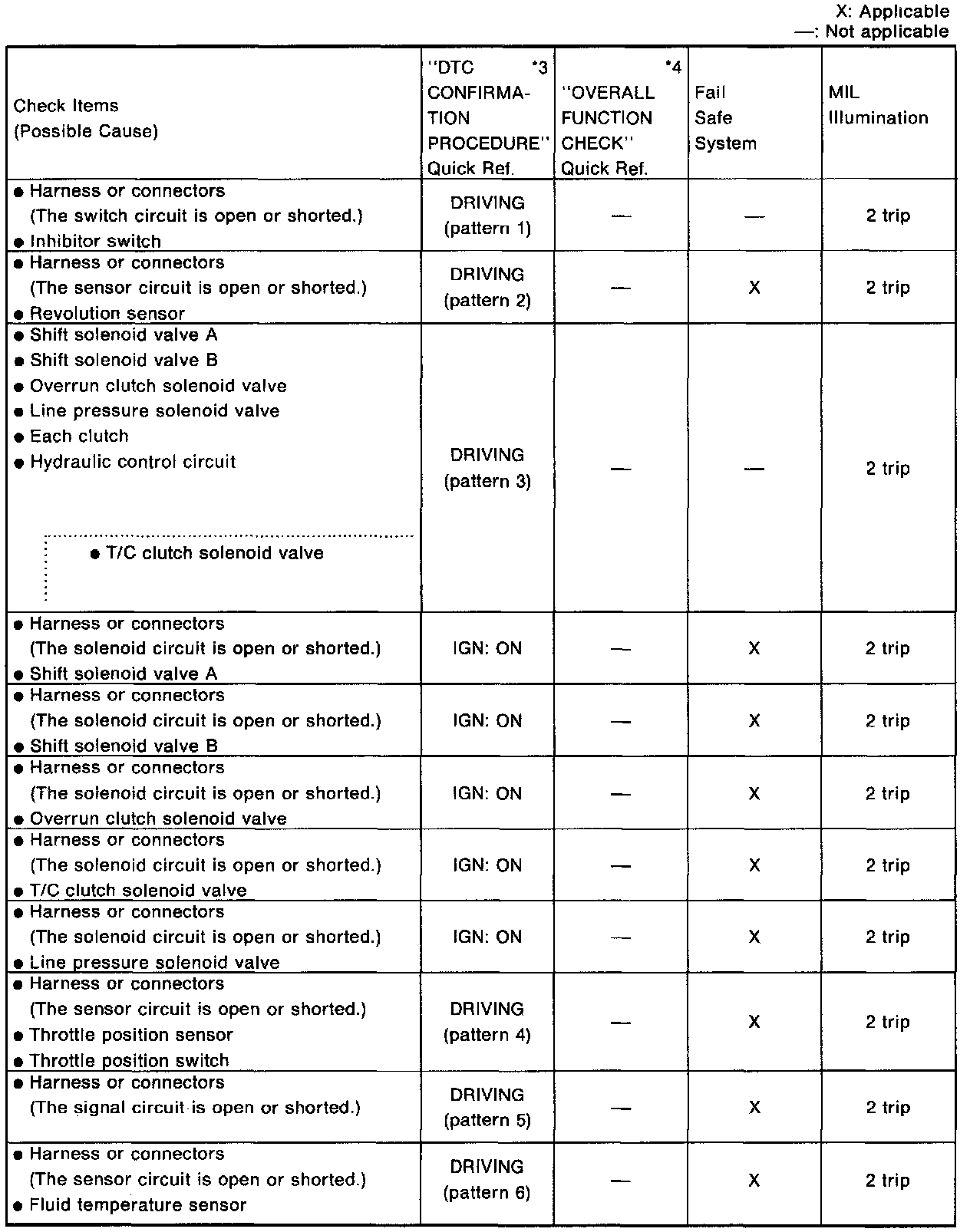

*3: DRIVING pattern 1-6 means as follows:
Pattern 1 should meet b and c
Pattern 2 should meet a and c,
Pattern 3 should meet a through e.
Pattern 4 should meet a and b.
Pattern 5 should meet a through C.
Pattern 6 should meet a through d.

a: Selector lever is in "D" position.
b: Vehicle speed is over 10 km/h (6 MPH).
c: Throttle opening is over 118.
d: Engine speed is over 450 rpm.
e: A/T fluid temperature is 20 - 120°C (68 - 248°F).



*4:
- The "OVERALL FUNCTION CHECK" is a simplified and effective way to inspect a component or circuit.
In some cases, the "OVERALL FUNCTION CHECK" is used rather than a "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE".
When no DTC CONFIRMATION PROCEDURE is available, the "NG" result of the OVERALL FUNCTION CHECK can be considered to mean the same as a DTC detection.
- During an "NG" OVERALL FUNCTION CHECK, the DTC might not be confirmed.
- This is Quick Reference of "OVERALL FUNCTION CHECK".
Details are described in each TROUBLE DIAGNOSIS FOR DTC XXX.
Abbreviations are as follows:
IGN: ON :
Turning the ignition switch ON is required for checking the function of the sensor, switch, solenoid and circuit.
RUNNING :
Running engine is required for checking the function of the sensor, switch, solenoid and circuit.
LIFTING :
Lifting up the vehicle, running engine and spinning wheels are required.
DRIVING :
Driving the vehicle in the specified pattern is required.
