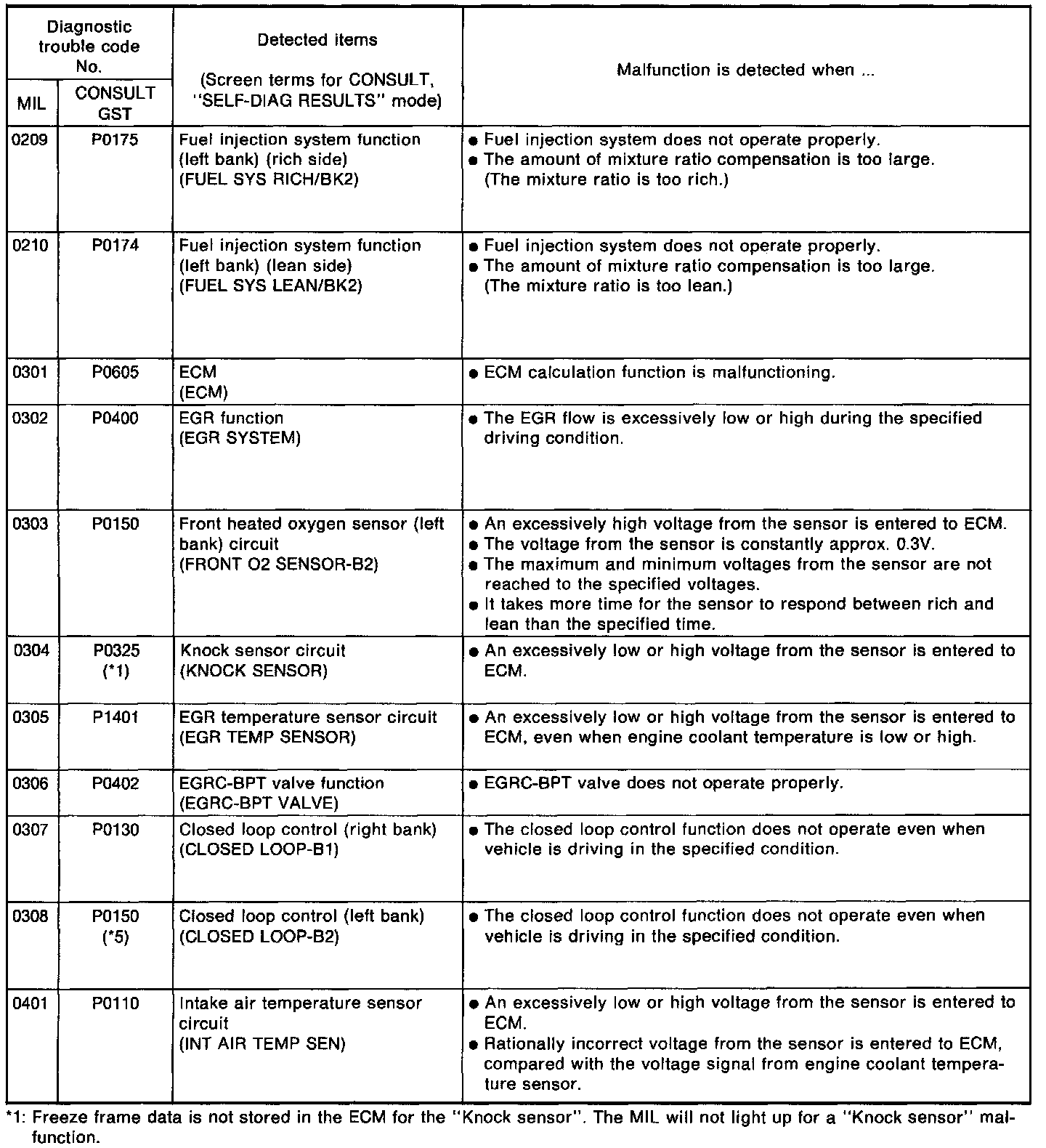

Codes 0209 (P0175) - 0401 (P0110)

ENGINE RELATED ITEMS
1: Freeze frame data is not stored in the ECM for the "Knock sensor. The MIL will not light up for a "Knock sensor" malfunction.

* Only for California models. For non-California models, this means EGR & canister control solenoid valve.

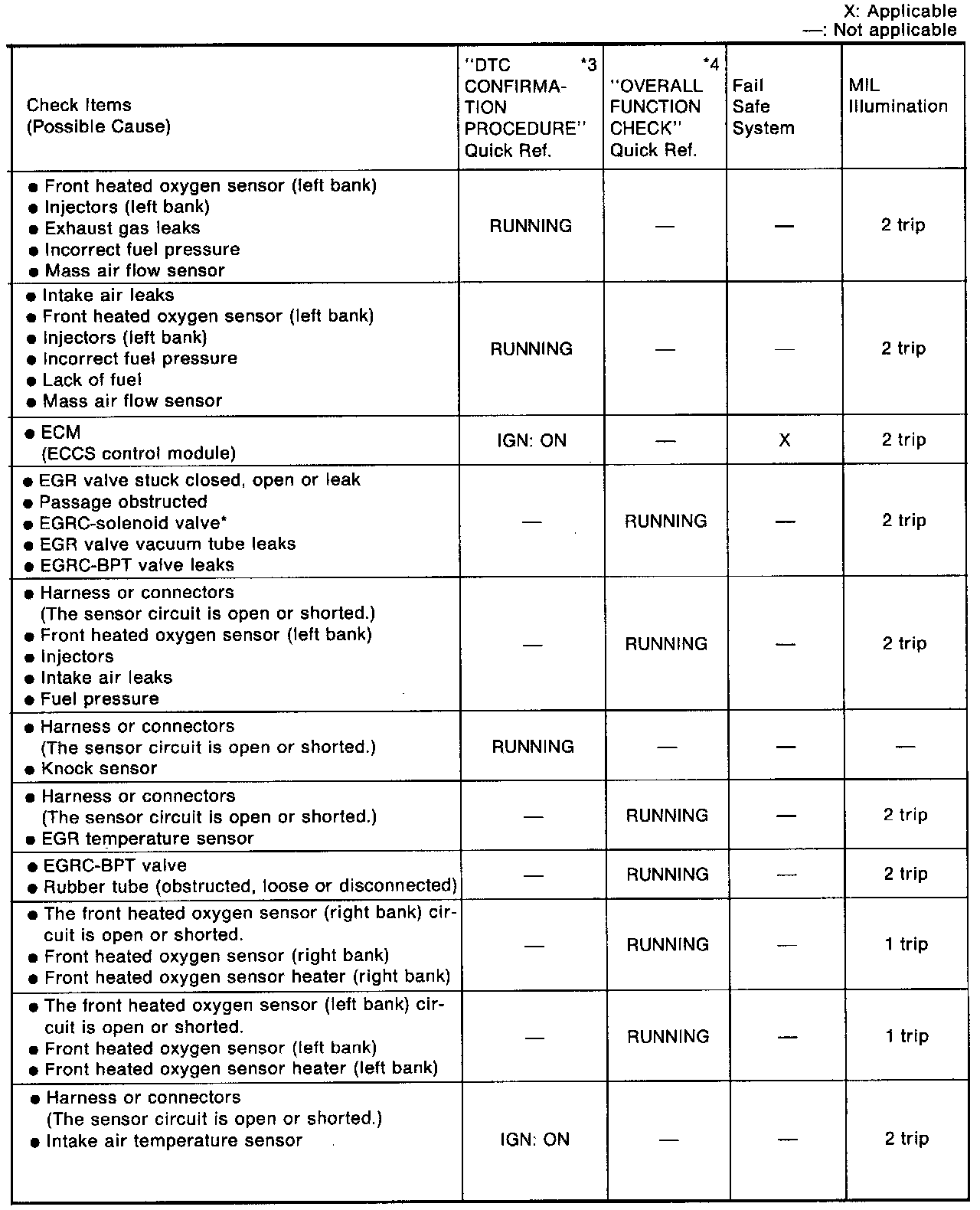

*3: This is Quick Reference of "DTC CONFIRMATION PROCEDURE"
Details are described in each TROUBLE DIAGNOSIS FOR DTC XXX.
Abbreviations are as follows:
IGN: ON :
Turning the ignition switch ON is required for the ECM to detect a malfunction (if one exists).
RUNNING :
Running engine is required for the ECM to detect a malfunction (if one exists)
LIFTING :
Lifting up the vehicle, running engine and spinning wheels are required for the ECM to detect a malfunction (if one exists).
DRIVING :
Driving the vehicle in the specified pattern is required for the ECM to detect a malfunction (if one exists).
