Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1996
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

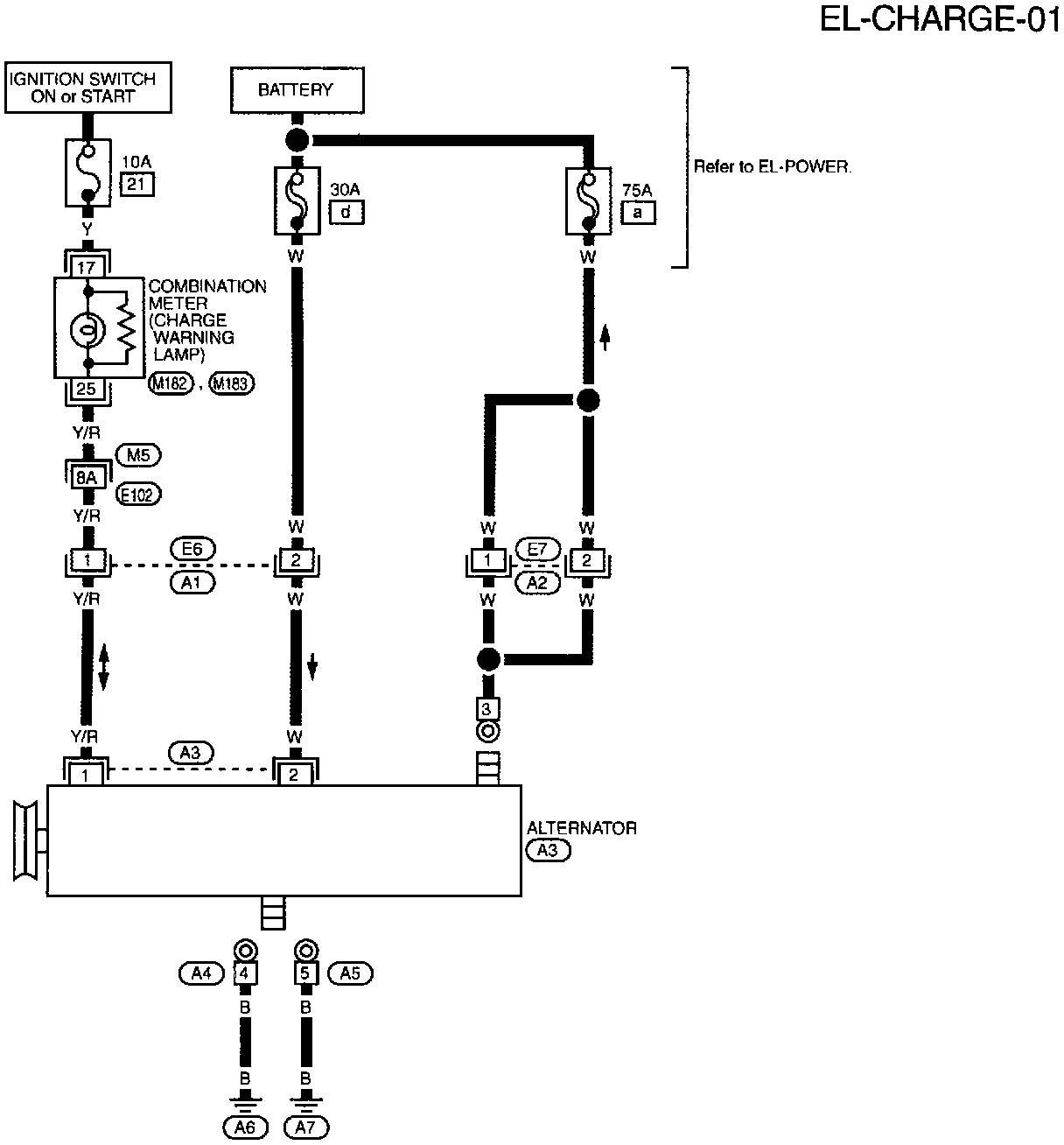

EL-CHARGE-01 Charging System:
