Accelerator Pedal: Adjustments

CAUTION: Make sure the ASCD wire is not pulling the throttle drum.

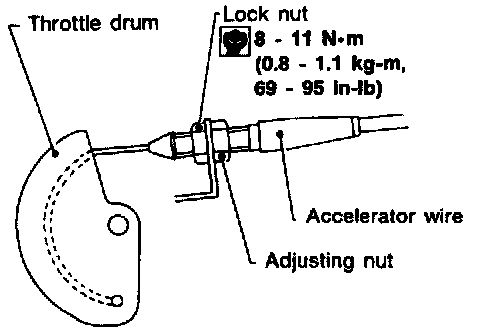

ADJUSTING ACCELERATOR WIRE
1. Loosen lock nut, and tighten adjusting nut until throttle drum starts to move.
2. From that position turn back adjusting nut 1.5 to 2 turns, and fasten it with lock nut.
