Idle Up Control Valve
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

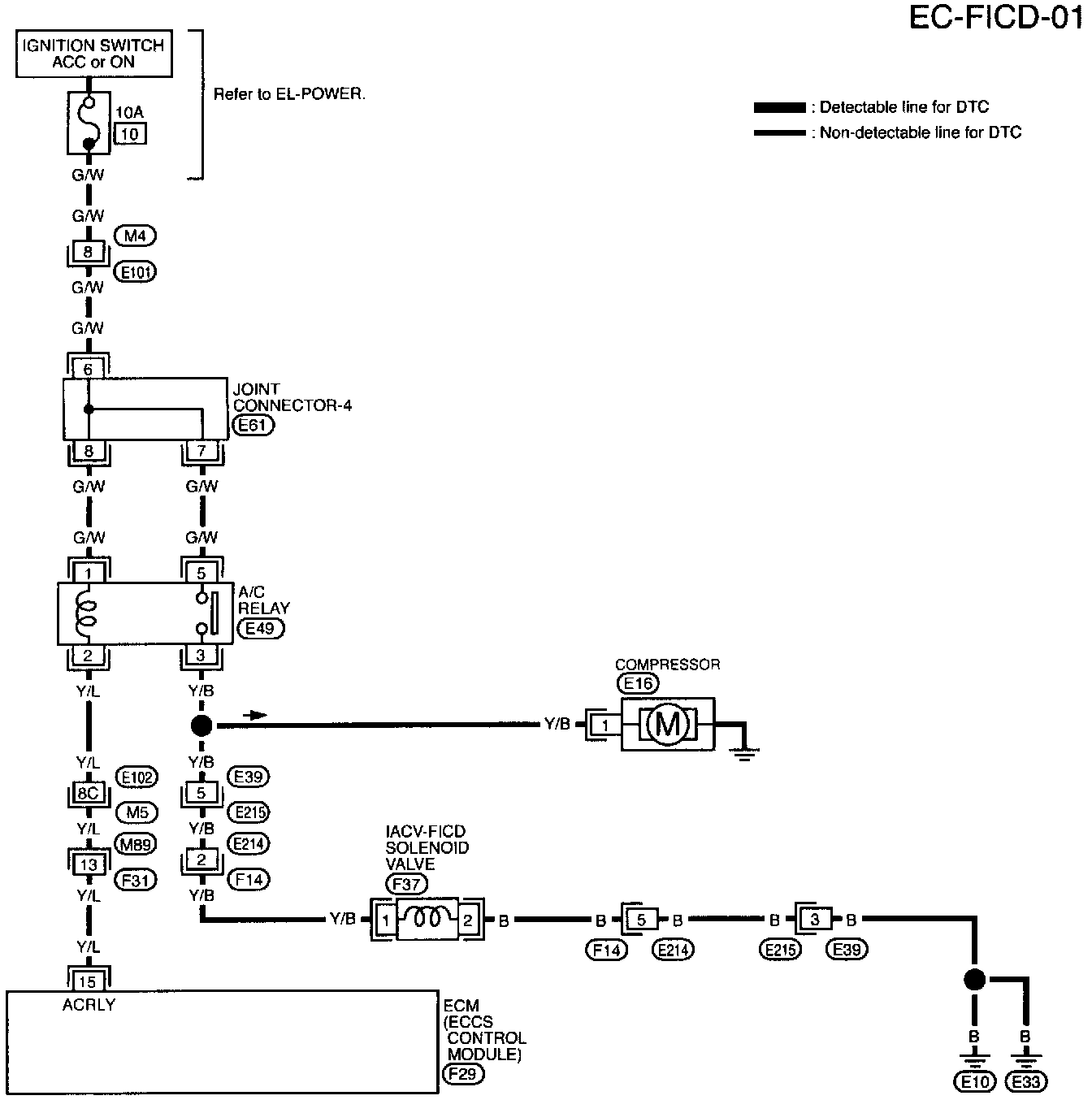

EC-FICD-01 IACV-FICD Solenoid Valve:
