Infiniti
>>
1996
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
Schematic
Schematic

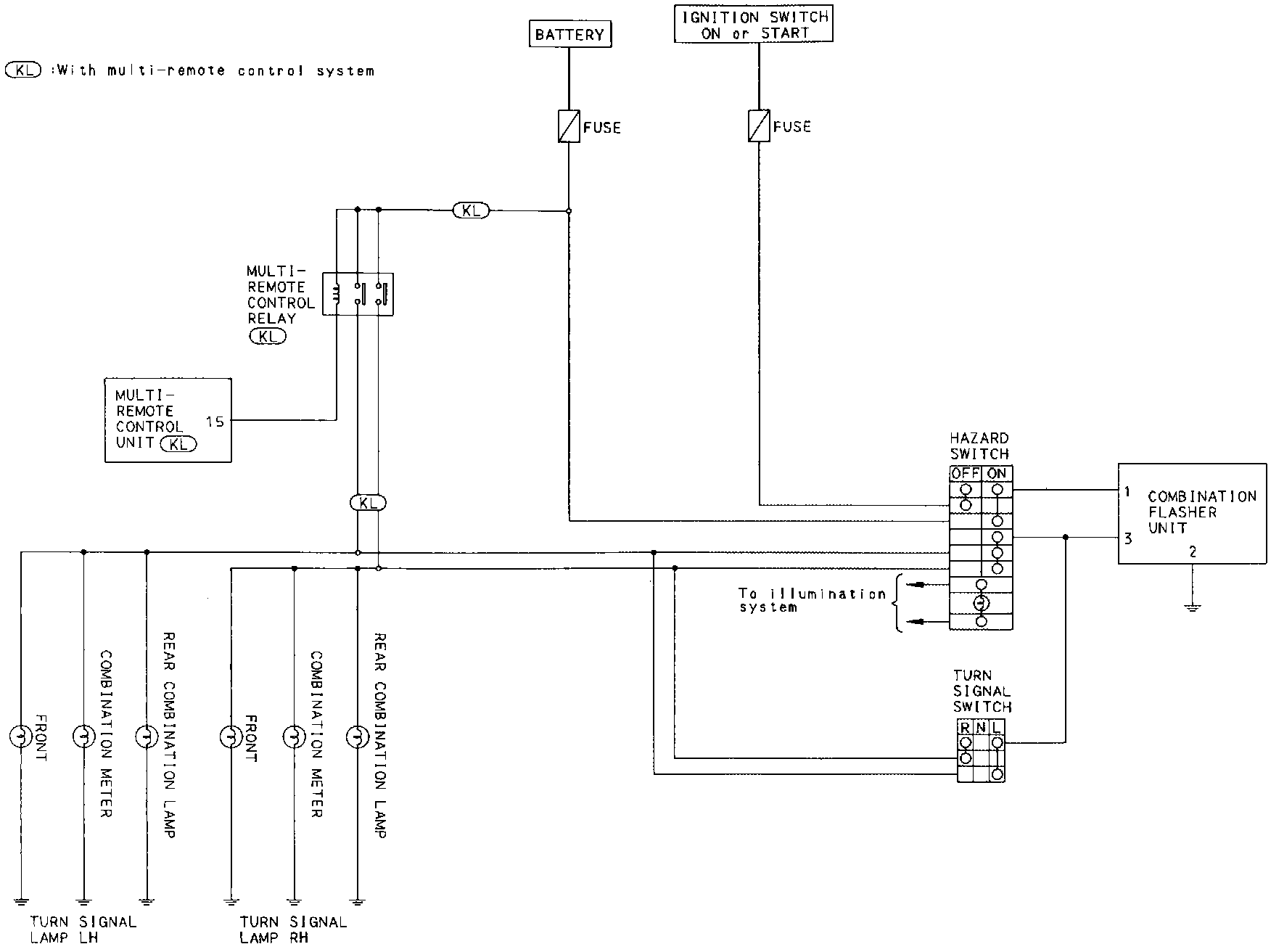

Turn Signal And Hazard Warning Lamps Schematic:
