Home >> Infiniti >> 1996 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> EGR Valve

EGR Valve

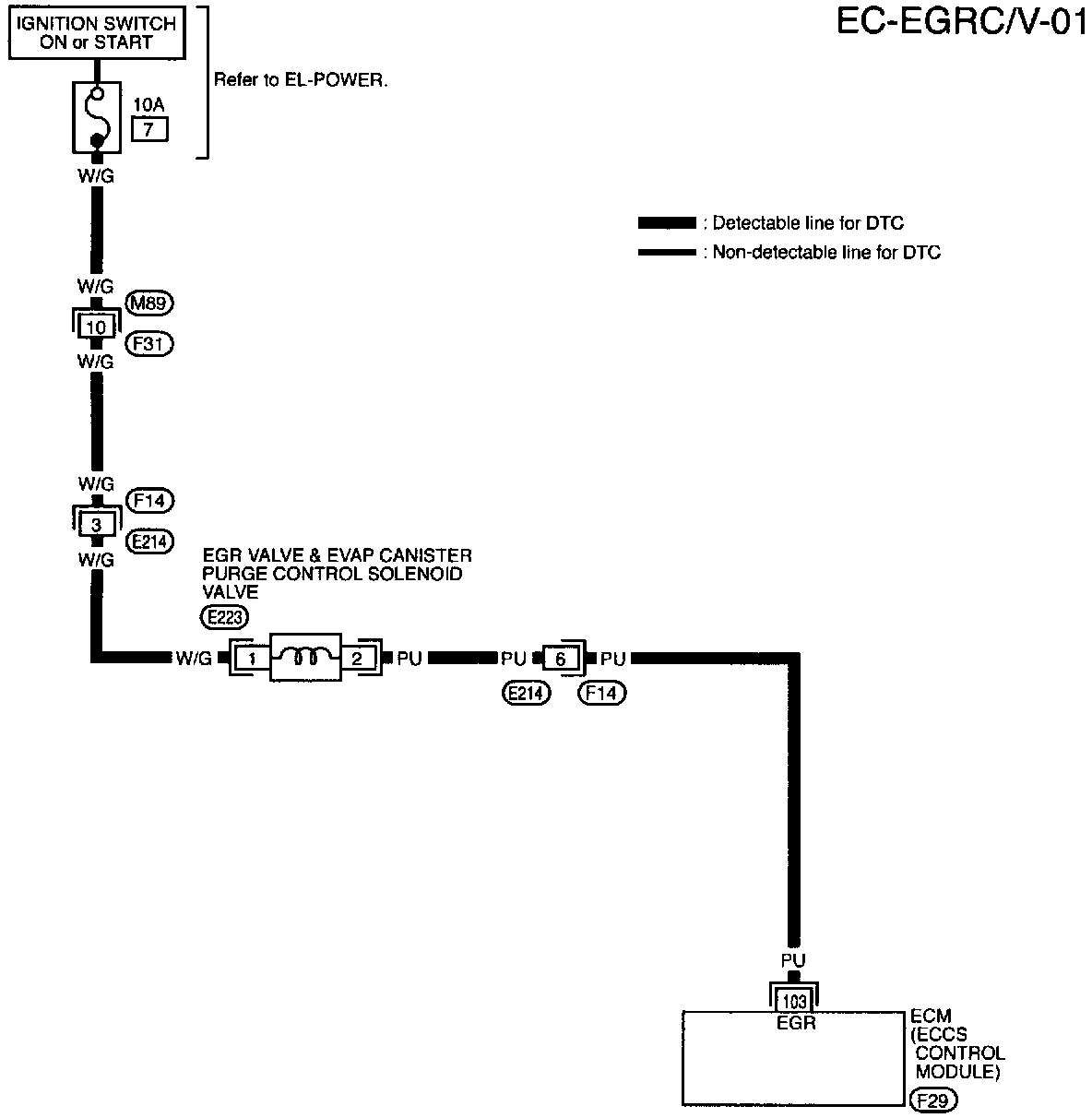

EC-EGRC/V-01 EGR Valve And EVAP Canister Purge Control Solenoid Valve (DTC: 1005):
