Brake Proportioning/Combination Valve: Testing and Inspection

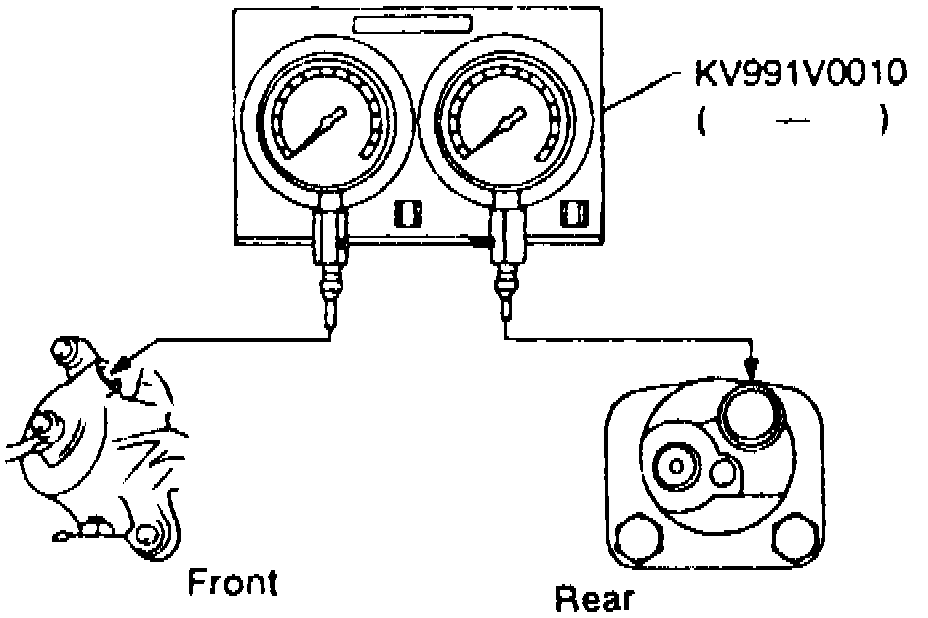

Fig. 9 Proportioning valve inspection:

1. On ABS models, disconnect harness connectors from ABS actuator.
2. Connect brake fluid pressure tool No. KV991V0010, or equivalent, to air bleeder of front and rear brakes on either right or lefthand side, Fig. 9.
3. Bleed air from tool.
4. Depress brake pedal and compare pressures.
a. Front brake pressure is 853 psi.
b. Rear brake pressure is 526-583 psi.

5. On all models, bleed brake system after disconnecting tool as described under Brakes.
