Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1996
>>
G20 L4-2.0L (SR20DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1401
>>
Circuit Diagram
Circuit Diagram

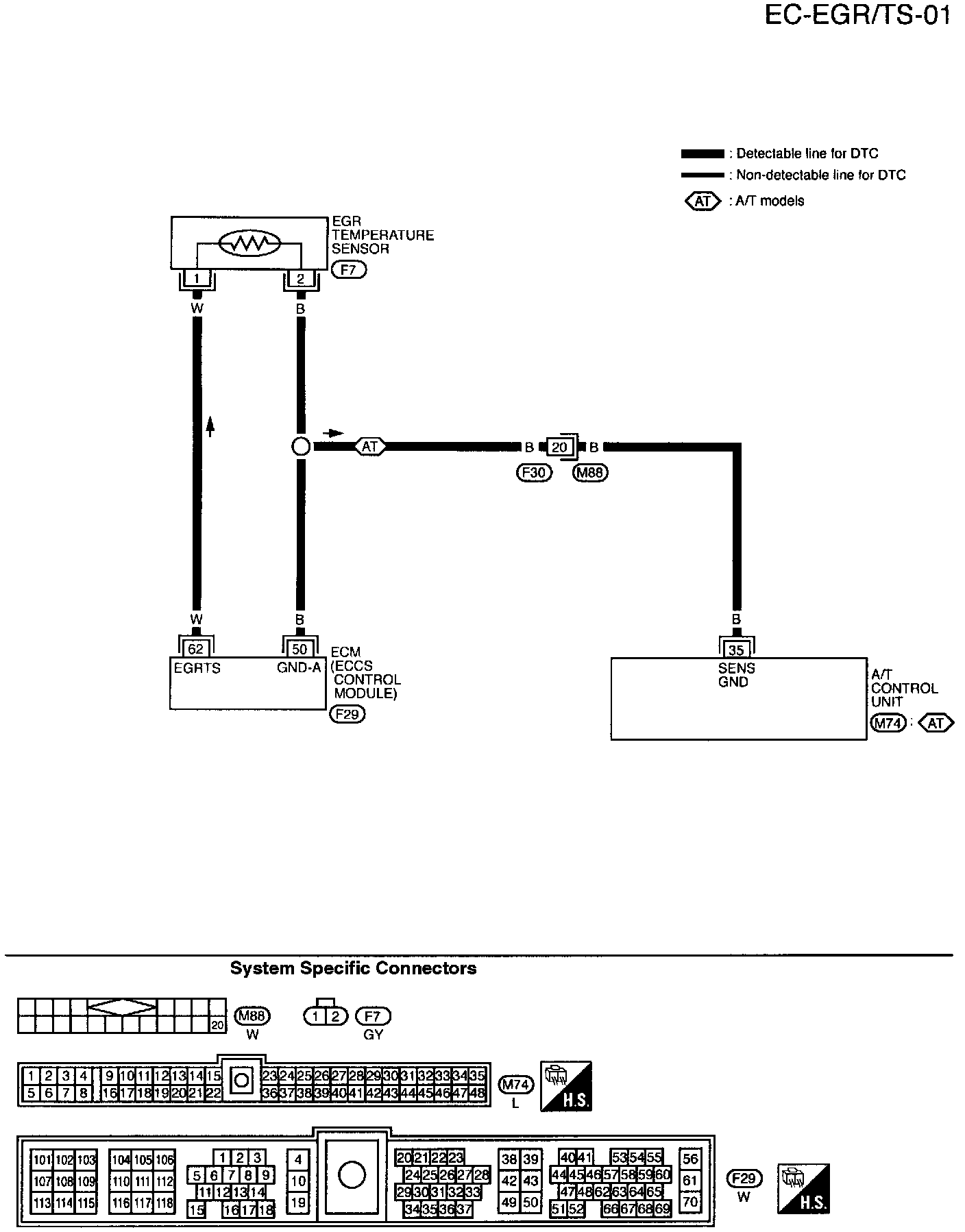

EC-EGR/TS-01 EGR Temperature Sensor (DTC: 0305):
