Diagnostic Procedure

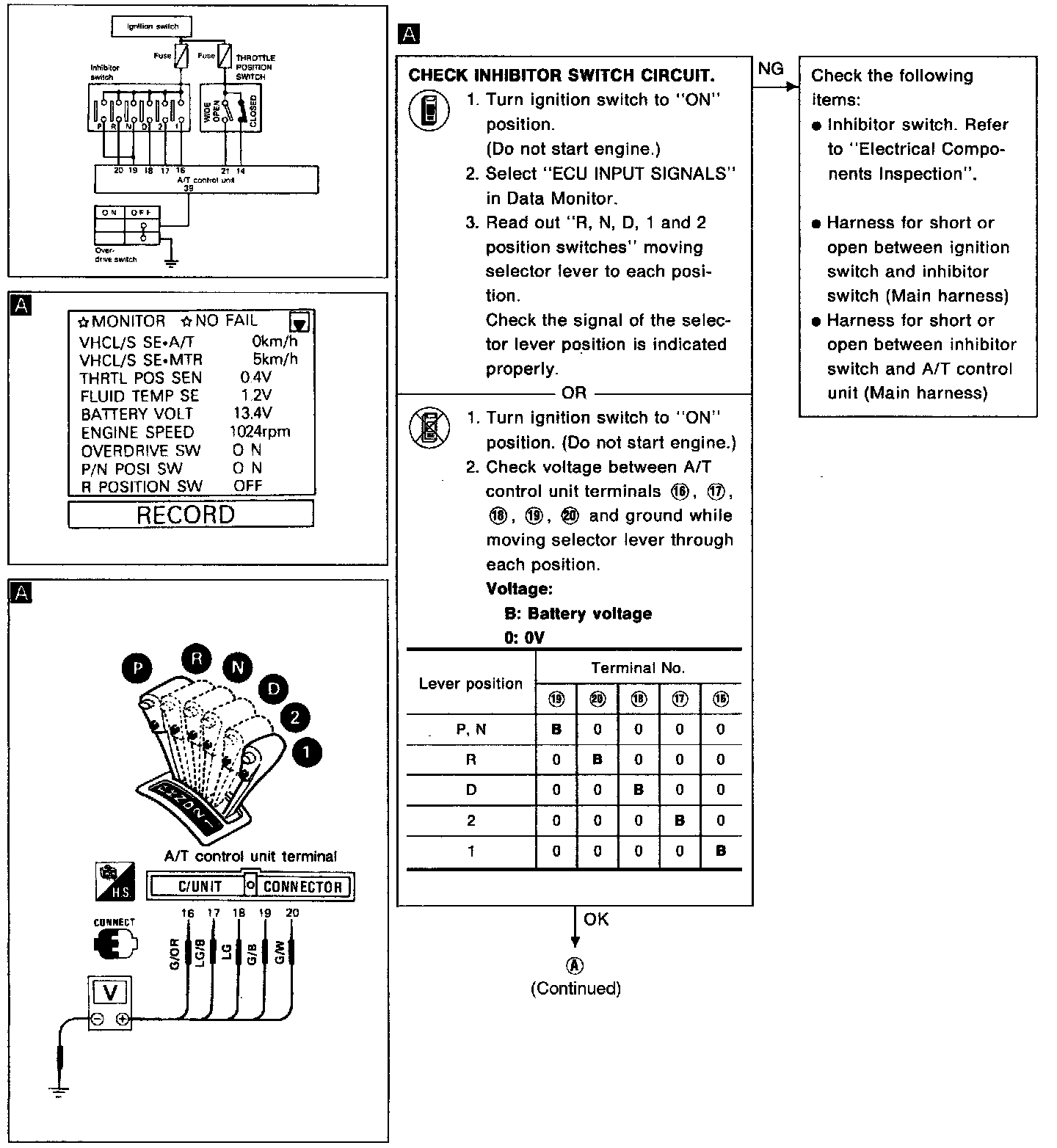

Inhibitor, Overdrive, And Throttle Position Switch Diagnostic Procedure (Part 1 Of 3 ):



Diagnostic Chart:

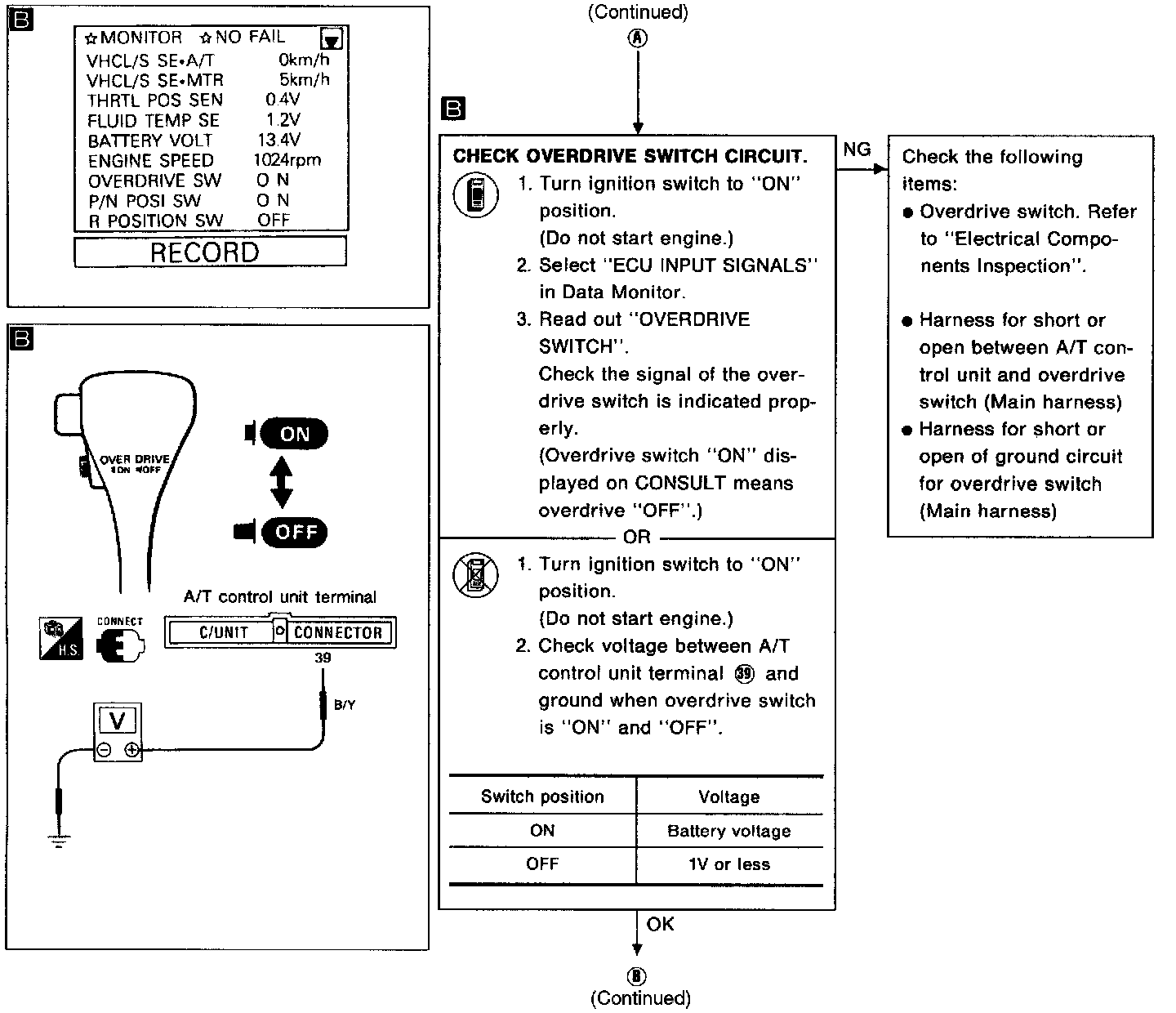

Inhibitor, Overdrive, And Throttle Position Switch Diagnostic Procedure (Part 2 Of 3 ):

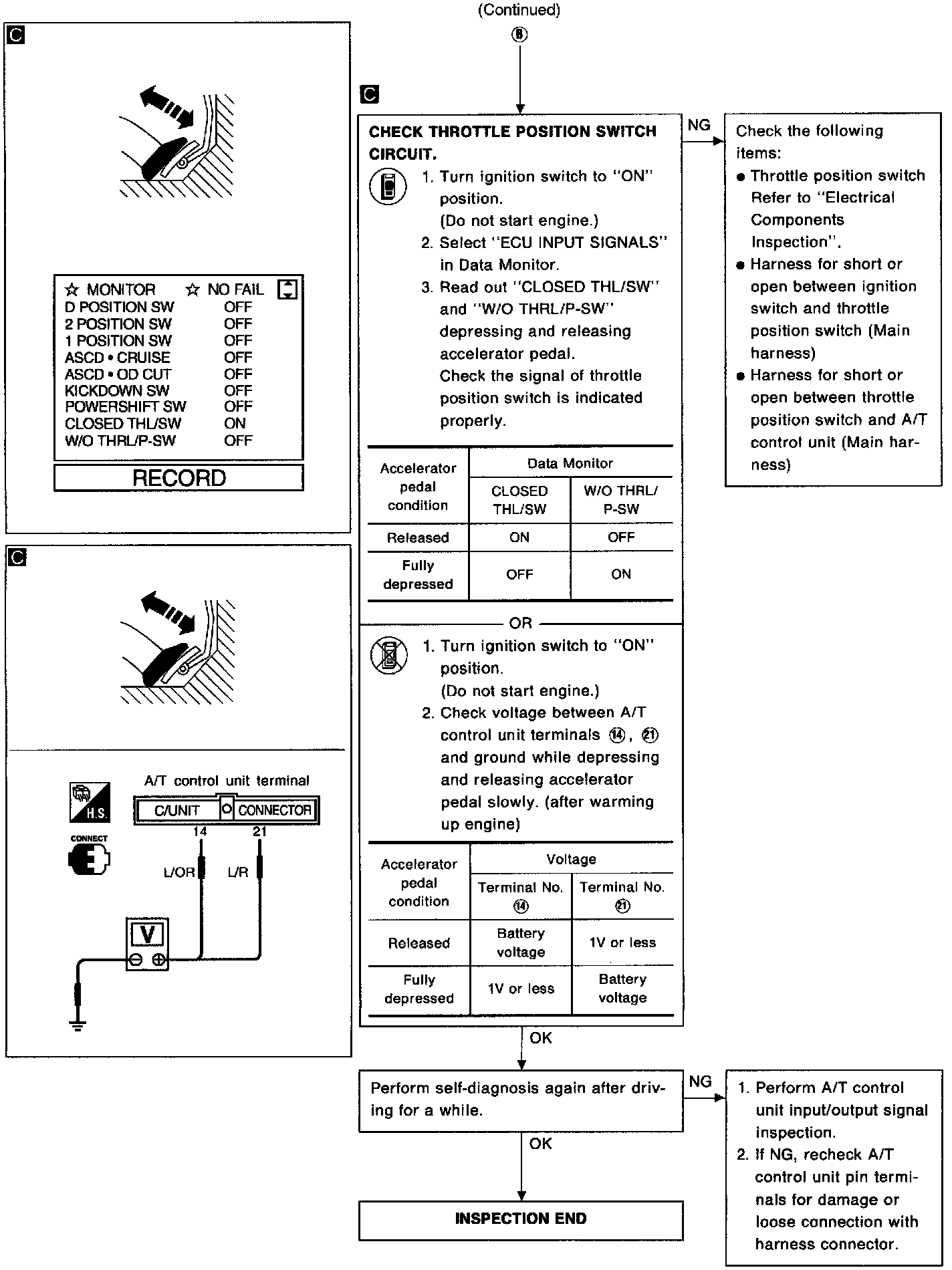

Inhibitor, Overdrive, And Throttle Position Switch Diagnostic Procedure (Part 3 Of 3 ):
