A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0136
>>
Circuit Diagram
Circuit Diagram

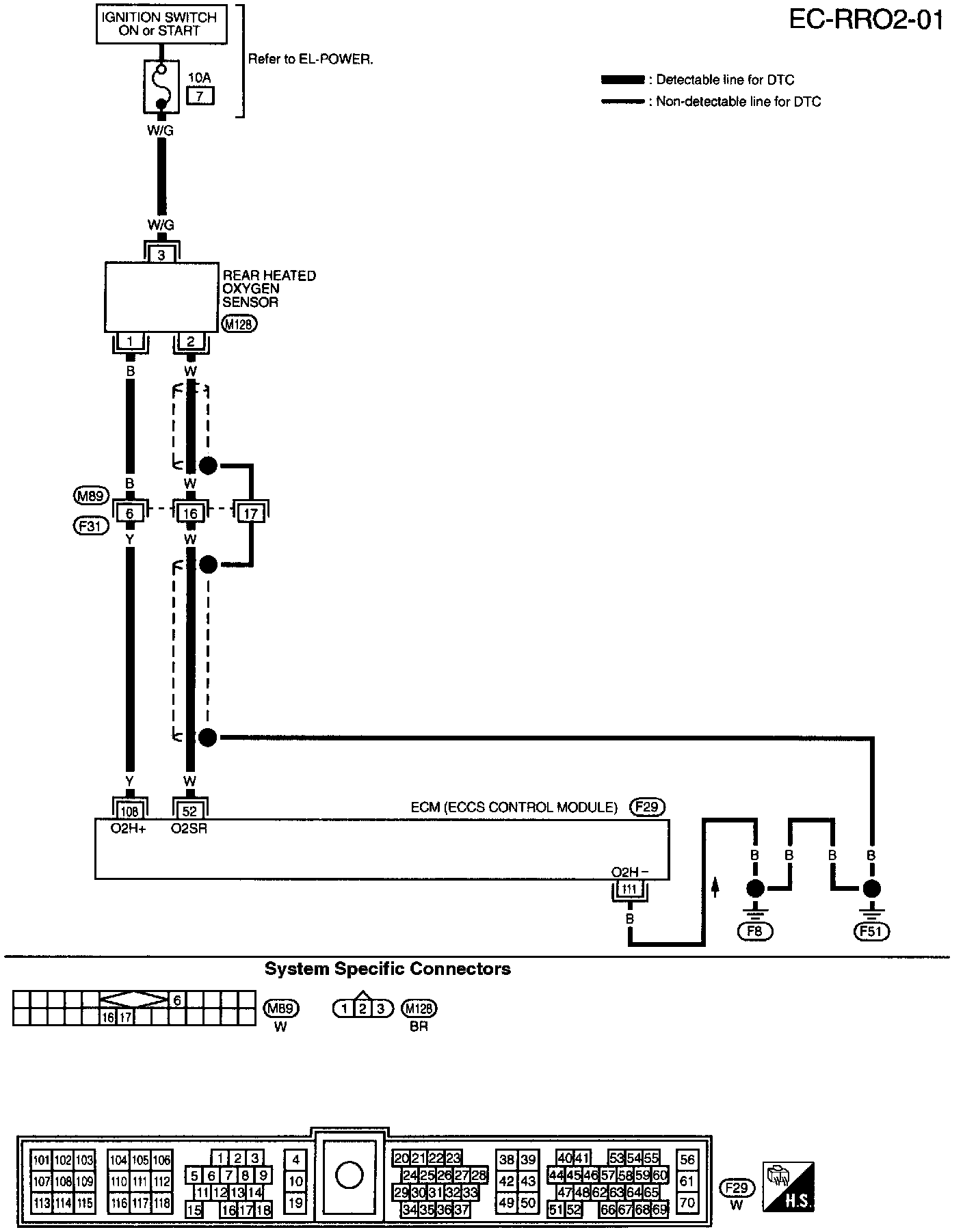

EC-RRO2-01 Rear Heated Oxygen Sensor (Rear HO2S) (DTC: 0707):
