A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0135
>>

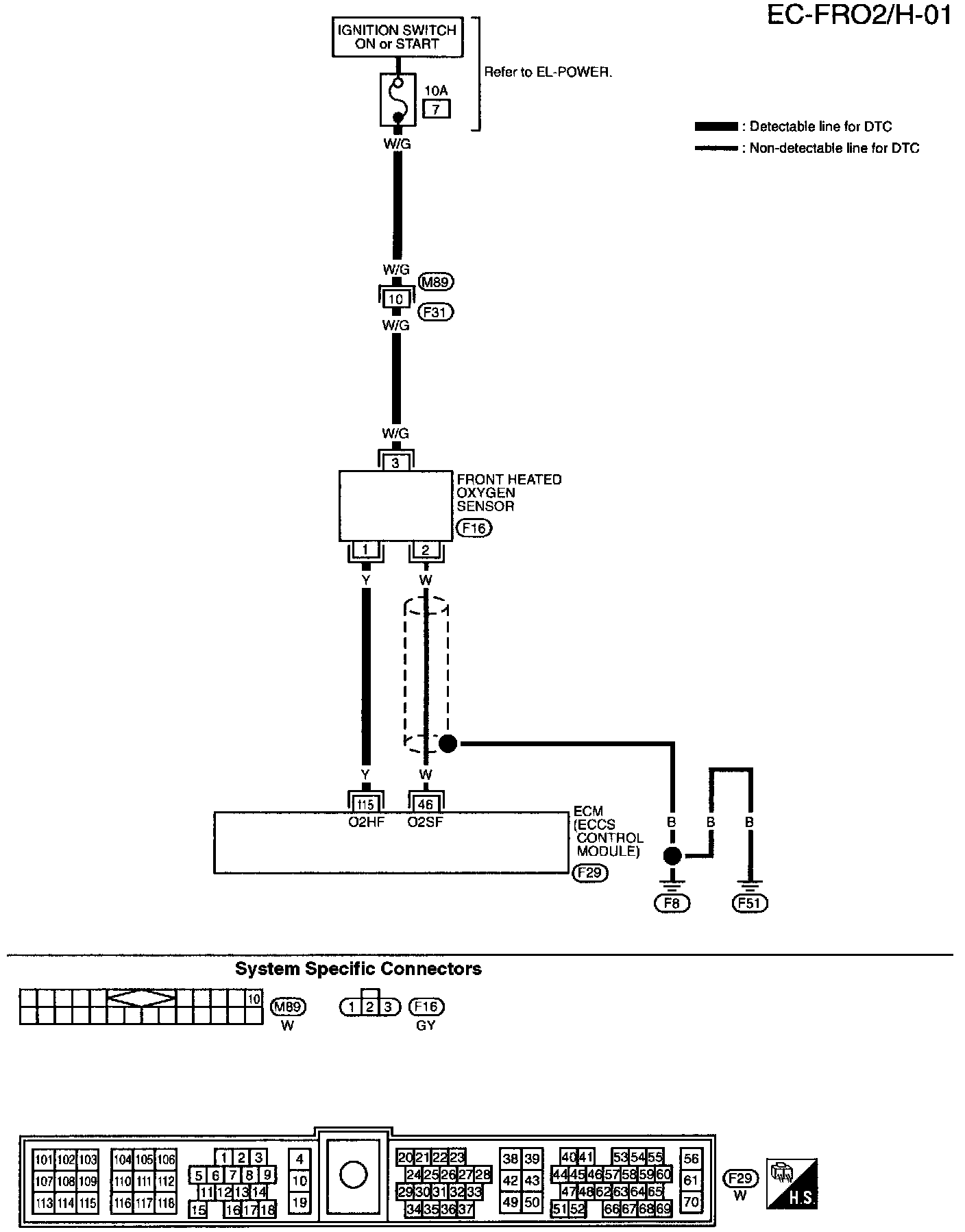

Circuit Diagram
Circuit Diagram
EC-FRO2/H-01 Front Heated Oxygen Sensor Heater (DTC: 0901):
