P0130
>>
Circuit Diagram
Circuit Diagram

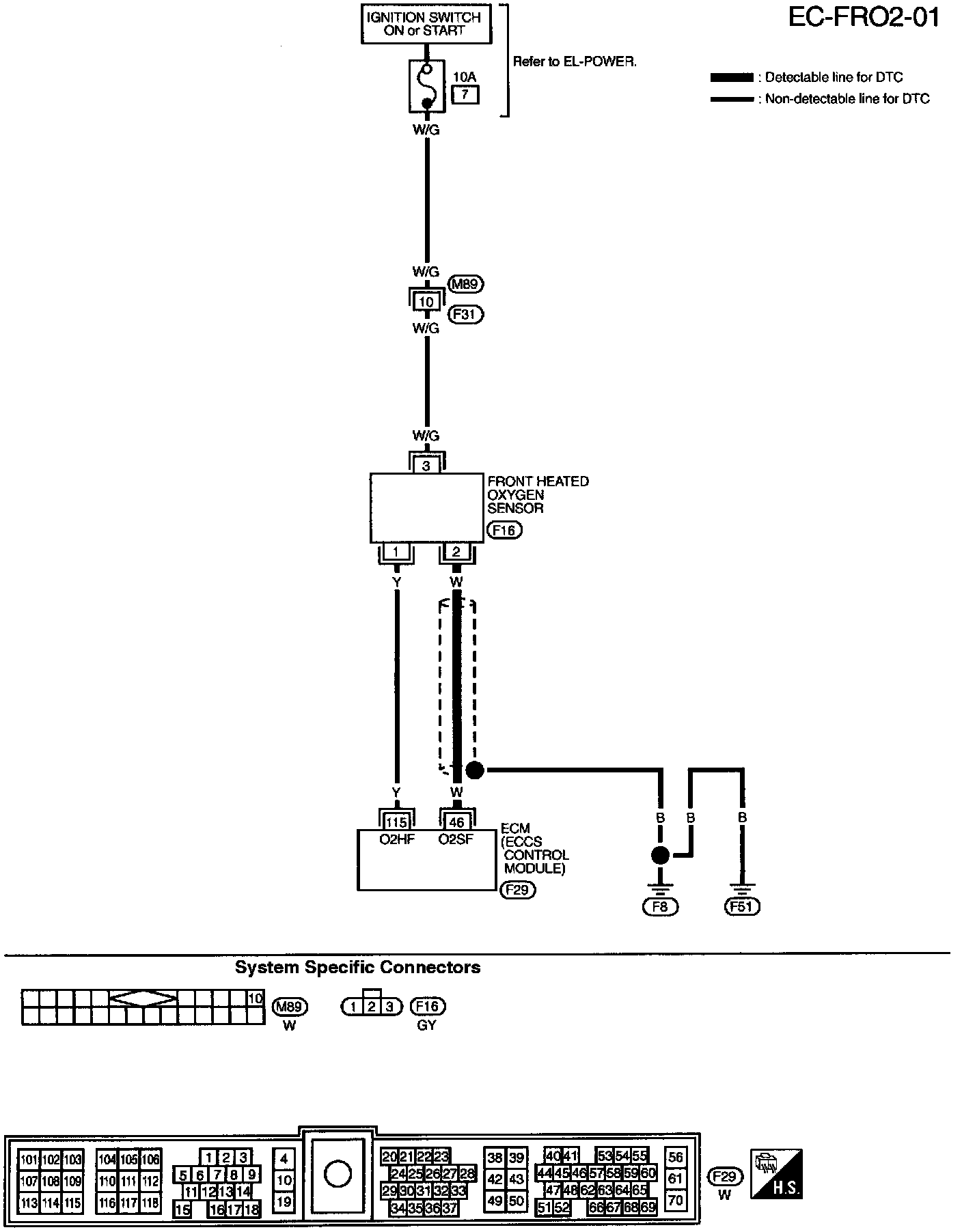

EC-FRO2-01 Front Heated Oxygen Sensor (Front HO2S) (DTC: 0303):
