Wiper and Washer Systems: Testing and Inspection

Wiper Amplifier Check:

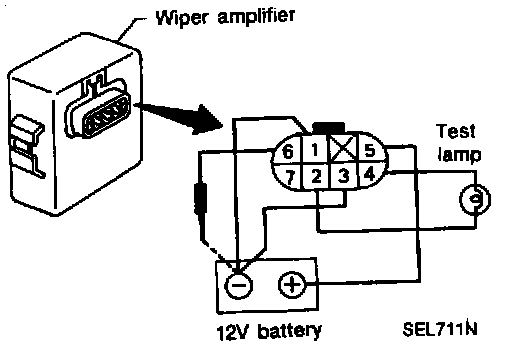

1. Connect as shown in the figure.
2. If test lamp comes on when connect to terminal (6) and battery ground, wiper amplifier is normal.
