Flex Plate: Testing and Inspection

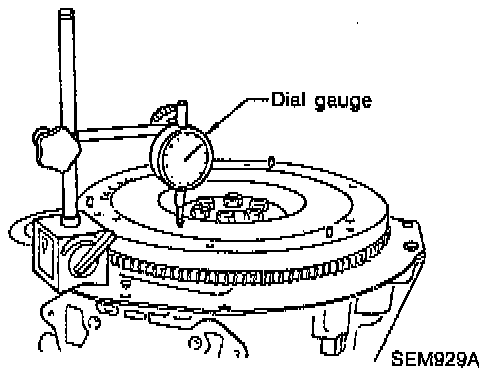

RUNOUT
The runout (total indicator reading) is less than 0.20 mm (0.0079 inch).

NOTE:
- Check for deformation or cracks.
- Keep any magnetized objects away from the ring gear teeth. Do not allow any magnetic materials to contact the ring gear teeth.
