Valve Body: Testing and Inspection

3-Unit Solenoid Assembly:

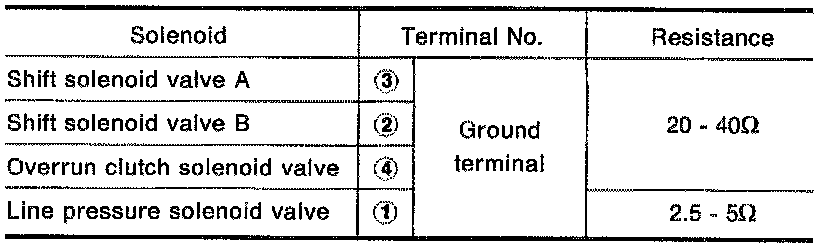

3-Unit Solenoid Assembly Resistance Table:

3-UNIT SOLENOID ASSEMBLY (Shift solenoid valves A, B and overrun clutch solenoid valve) AND LINE PRESSURE SOLENOID VALVE
^ Check resistance between terminals of each solenoid.
