Transmission Mode Switch: Testing and Inspection

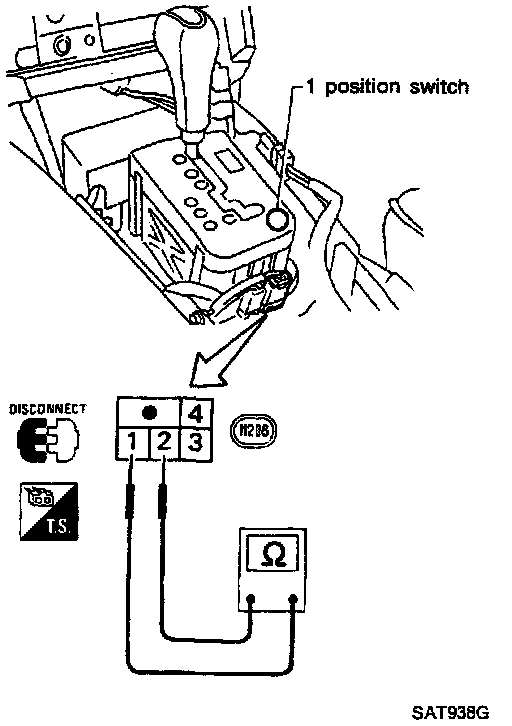

1 Position Switch Test:

Check continuity between terminals "1" and "2" of 1 position switch harness connector.
^ When selector lever in "1" position -- CONTINUITY
^ When selector lever in a position except "1" position -- NO CONTINUITY
