Downshift Switch: Adjustments

NOTE: Adjust throttle cable before adjusting kickdown switch.

Middle Throttle Drum Adjustment:

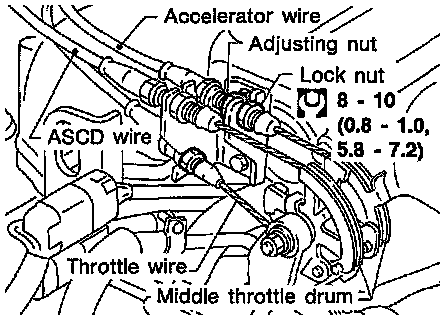

MIDDLE THROTTLE DRUM ADJUSTMENT
1. Loosen lock nut, and tighten adjusting nut until middle throttle drum starts to move.
2. Fasten adjusting nut with lock nut.

Throttle Drum Adjustment:

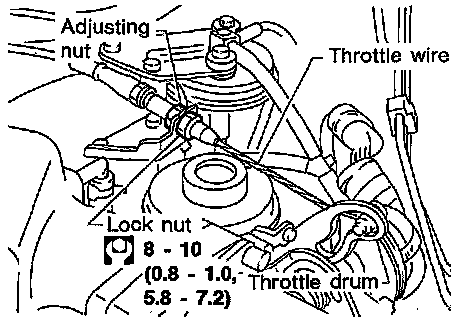

THROTTLE DRUM ADJUSTMENT
1. Loosen lock nut, and tighten adjusting nut until throttle drum starts to move.
2. From that position, turn back adjusting nut 15 to 2 turns, and fasten it with lock nut.

Fig. 4 Kickdown switch adjustment:

KICKDOWN SWITCH
a. Adjust clearance "C" between stopper rubber and end of kickdown switch thread while depressing accelerator pedal fully.
b. Clearance "C", should be 0.012-0.039 inch.
