Service Manual - Amendment to Brake Section
Models: 1994 Q45Section: Amendments
Classification: AM93-003
Bulletin No.: ITB93-028
Date: May 7 1993
AMENDMENT TO BRAKE SECTION IN 1994 Q45 SERVICE MANUAL
Corrections were made to (2) pages for the Brake Section of the 1994 Q4S Service Manual.

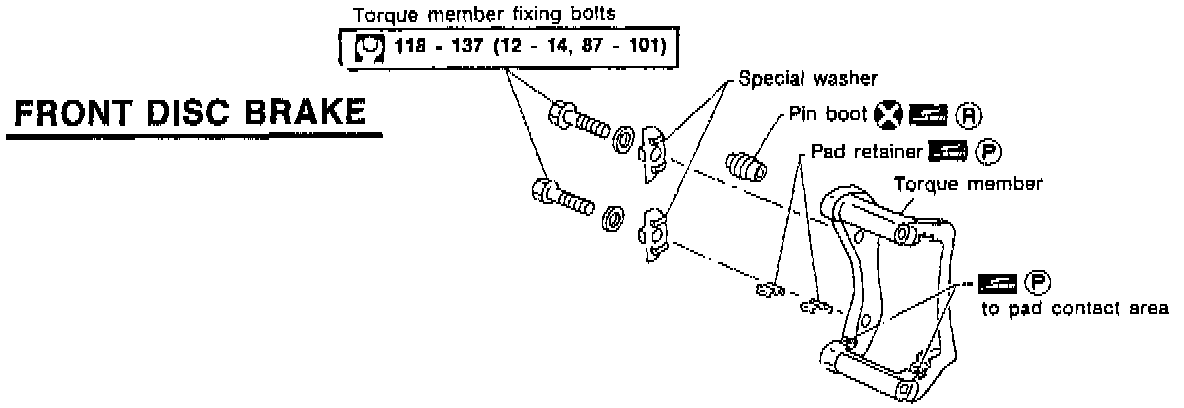

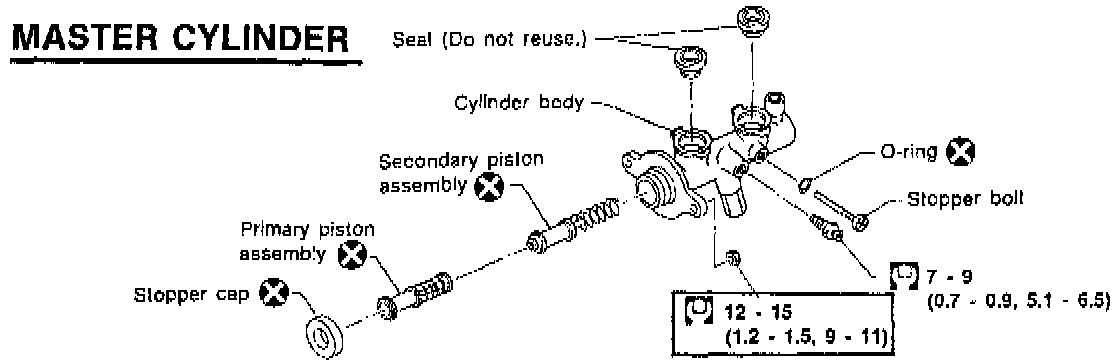

These pages (BR-9 and BR-14) show the correct tightening torque for the master cylinder and the front disc brakes. Page BR-14 also shows an additional CAUTION for inspecting the rubber plugs for the slide pins on the front brake caliper mounts.
