Essential Tool Release
Classification: GI94-005Section: General Information
Models: All
Reference: TECHNICAL BULLETIN ITB94-055
Date: October 11, 1994
ESSENTIAL SERVICE TOOL RELEASE
SERVICE INFORMATION
All Infiniti dealers have been sent the following special tools as part of the Essential Service Tool Program.

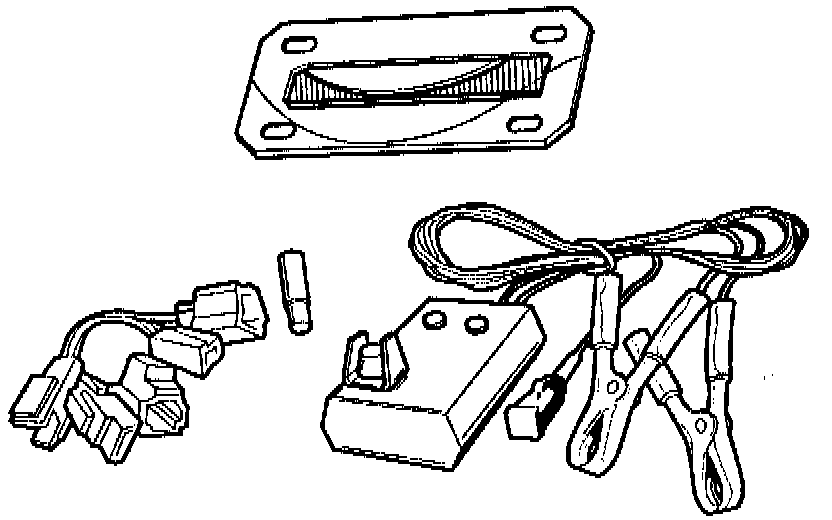

AIR BAG DEPLOYMENT KIT
This tool has been developed to provide a safe and efficient method of deploying air bags when return for warranty consideration is not required. Included in this kit are the following components:
(1) J38381, Air Bag Deployment Tool
(1) J38381-30, Passenger Side Deployment Harness
(1) J41246, Passenger Side Air Bag Bracket
(1) J38219, T5O TORX Bit
(1) J34970, Plastic Storage Case and Foam Insert
Please refer to the BF section of the appropriate service manual for specific warnings and procedures for proper usage of these tools.
Note:
Unless the vehicle is being scrapped, it is not recommended to deploy the air bag(s) in the vehicle interior.

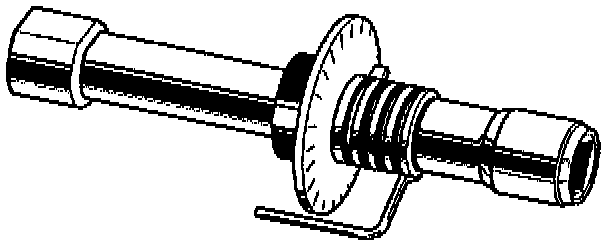

ANGLE TORQUE WRENCH
The Angle Torque Wrench tool (P/N BT 8653-A) has been provided to ensure proper torquing of "elastic" components such as cylinder head bolts and crankshaft main bolts.
Refer to the EM section of the appropriate service manual for the proper torque specifications.
