A/T - Line Pressure Specifications Amendment

Models: 1994 Q45

Section: Amendments

Classification: AM93-006

Bulletin No.: ITB93-066

Date: December 6, 1993

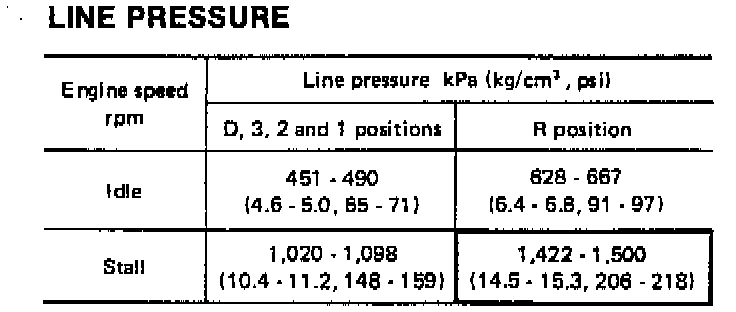

1994 Q45 A/T LINE PRESSURE SPECIFICATIONS AMENDMENT





The line pressure specifications for the RE4R03A automatic transmission shown in the 1994 Q45 Service Manual are incorrect. The correct line pressure is shown above.
