Operative Condition

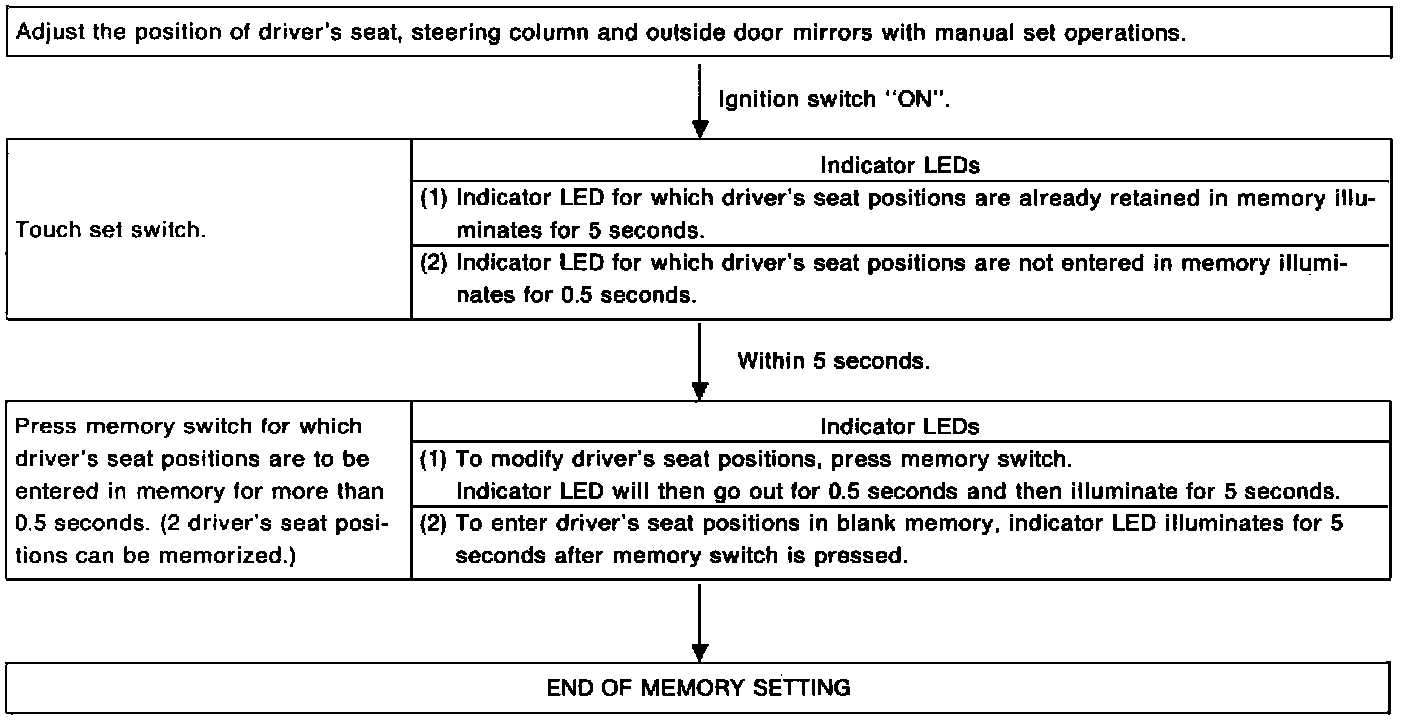

Procedure For Memorizing The Desired Positions:

The drive position can be set in 2 ways, manually and automatically.

Manual operation:
The driver's seat can be adjusted for rake, front cushion height, rear cushion height, pedal reach and headrest height with the LH power seat switches. The steering column can be adjusted for tilt and reach (telescopic) with the steering switch. The door mirror can be adjusted in the desired direction with the remote control switch when the IGN switch is 'ACC". Except for the door mirror, manual setting can be operated with the IGN key removed from steering key cylinder.

Automatic operation:
The driver's seat, steering column and LH, RH door mirrors are adjusted to the proper positions for the driver automatically, in 3 different ways: MEMORY AUTOMATIC SET, AUTOMATIC EXITING SETTING and AUTOMATIC SET RETURN. (Automatic Drive Positioner = ADP)

Conditions inhibiting automatic operation
- When the A/T selector lever is in any position other than 'P".
- When the vehicle speed is above 7 kph (4 mph).
- When one of the position switches for the driver's seat or the steering column is turned on.
- When the cancel switch is ON.
- When the tilt or telescopic sensor circuit is damaged.
- All data retained in memory are erased when battery is disconnected.

NOTE: When memory switch for which driver's seat positions are already retained in memory is pressed, new seat positions will be retained in memory in place of the previously set positions.
