Sensor Unit

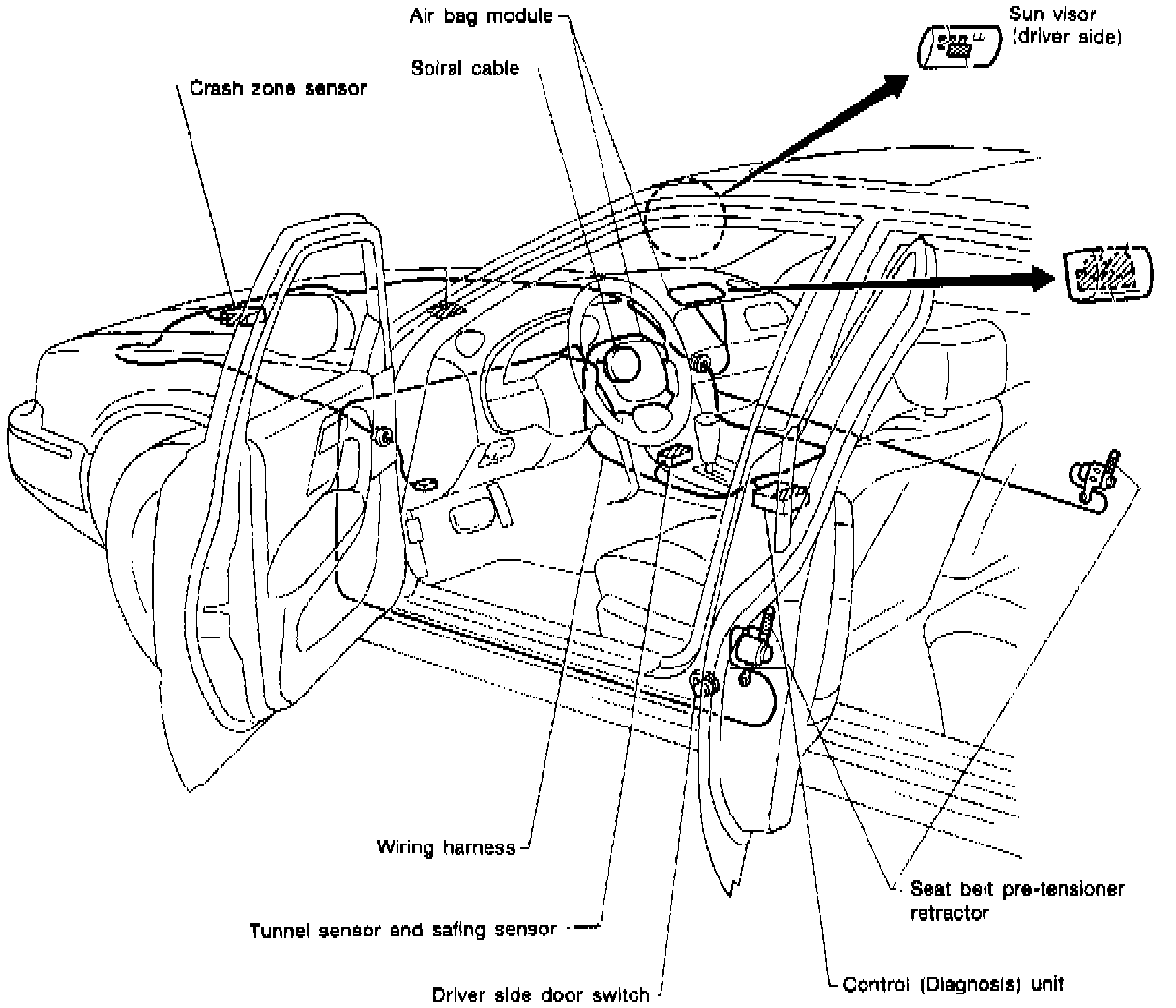

Fig. 7 Supplemental Restraint System (SRS) Component Locations:

1. Disarm SRS as described under Air Bag Arming and Disarming.
2. Refer to Fig. 7 for component locations.
3. Disconnect driver and passenger air bag module electrical connectors.
4. Disconnect seat belt pre-tensioner electrical connector.
5. Remove rear floor console.
6. Disconnect diagnosis sensor unit connector.
7. Remove mounting bolts with T50 Torx bit, then remove diagnosis sensor unit.
8. Reverse procedure to install, noting following:
a. Ensure arrow faces vehicle front.
b. Tighten new bolts to specifications. Do not use old bolts.
c. Arm SRS as described under Air Bag Arming and Disarming.
