Fuel Pump Relay: Testing and Inspection

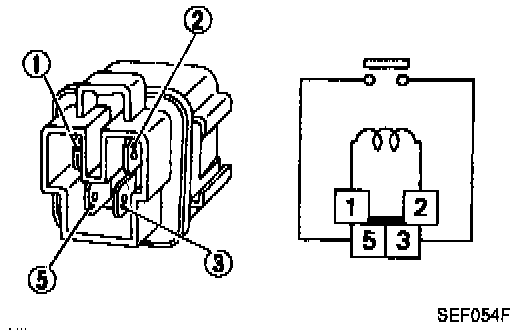

Fuel Pump Relay:

Check continuity between terminals 3 and 5:
^ With 12 Volts DC supply between
terminals 1 and 2 -- Continuity
^ With No 12 Volt DC supply between
terminals 1 and 2 -- NO Continuity
If NG, replace relay.
