Radiator Cooling Fan Motor Relay: Locations

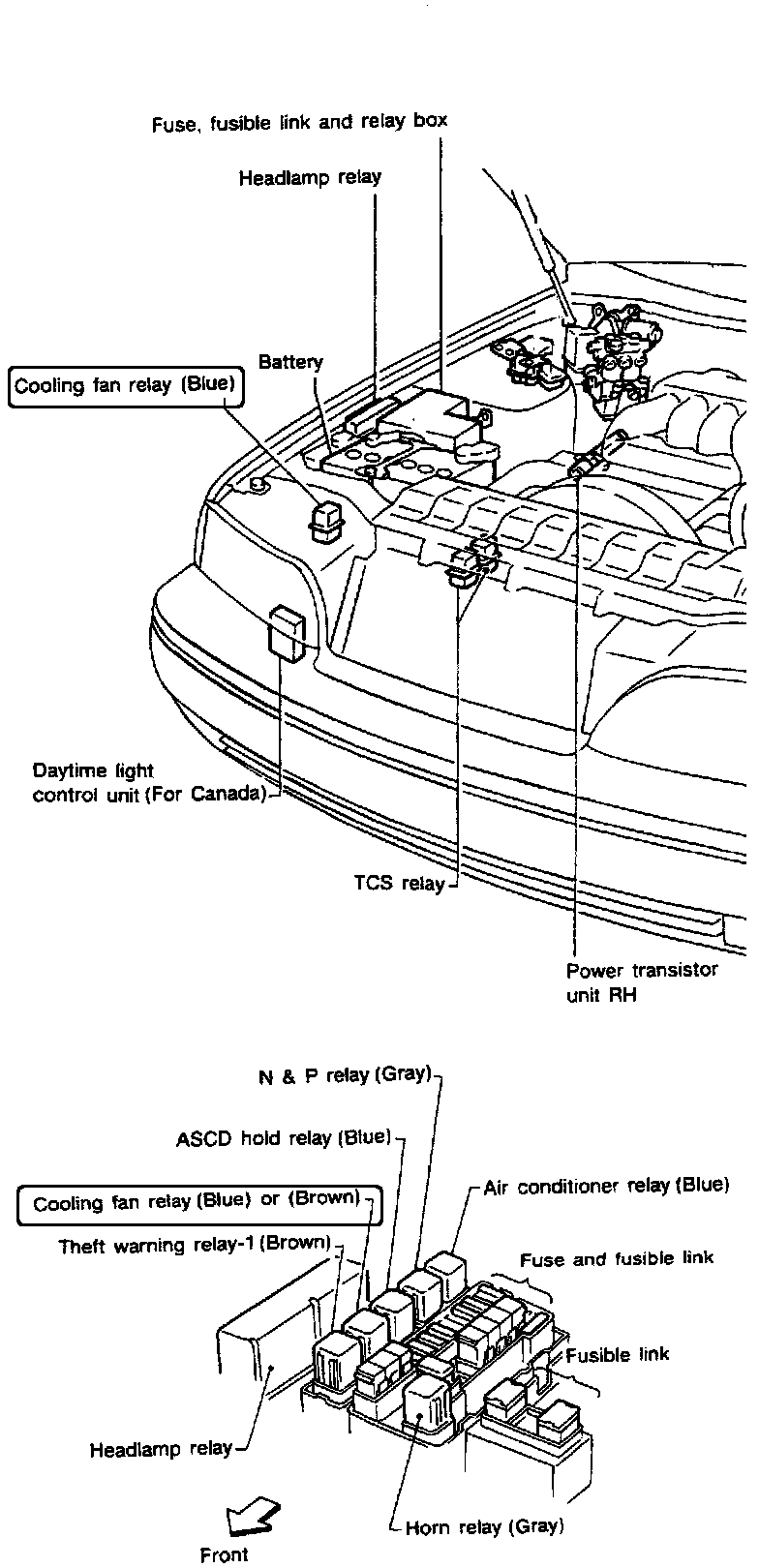

Cooling Fan Relays 1 & 2:

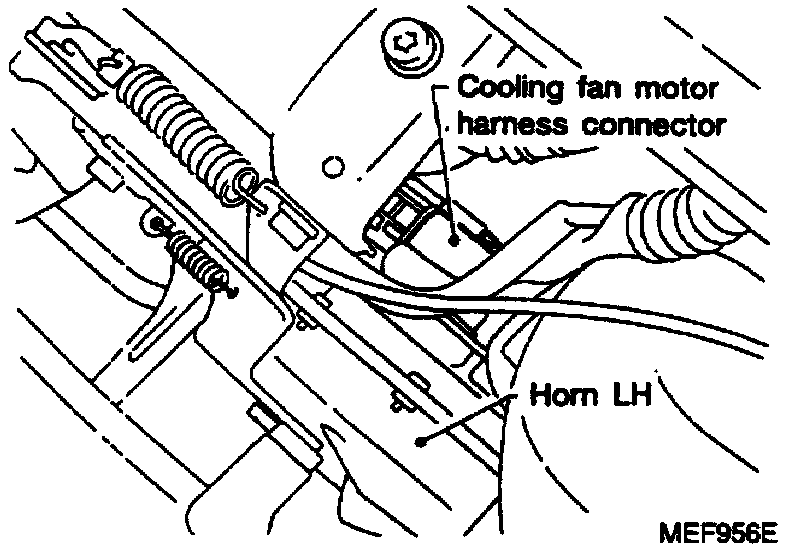

Cooling Fan Motor Harness Connector:




Cooling Fan Relay:




There are two cooling fan motor relays. One is located in the fuse, fusible link and relay box on the right front fender well (blue or brown). The other is located in the right front corner of the engine compartment (blue).
