CONSULT Cruise Test Setting Procedure

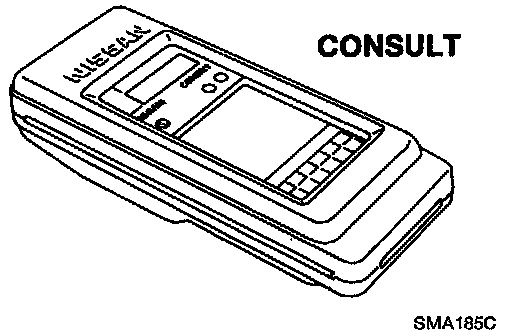

Consult Tester:

Data Link Connector:

^ Using CONSULT, conduct a cruise test and record the result.
^ Print the result and ensure that shifts and lock-ups take place as per "Shift Schedule".
CONSULT Setting Procedure
1. Turn off ignition switch.

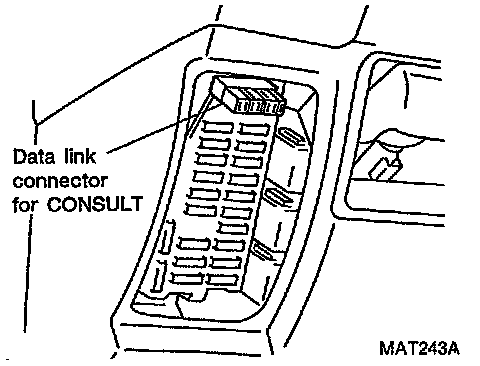

2. Connect "CONSULT" to data link connector for CONSULT. (Data link connector for CONSULT is located in the fuse box.)

Consult Test:

3. Turn on ignition switch.

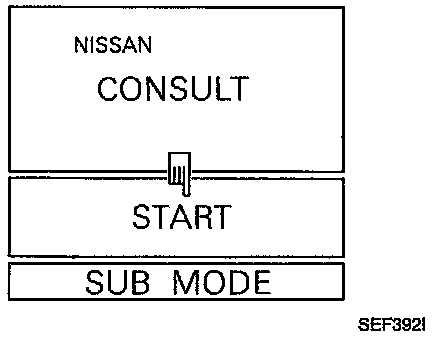

4. Touch "START".

Consult Test:

5. Touch "A/T".

Consult Test:

6. Touch "DATA MONITOR".

Consult Test:

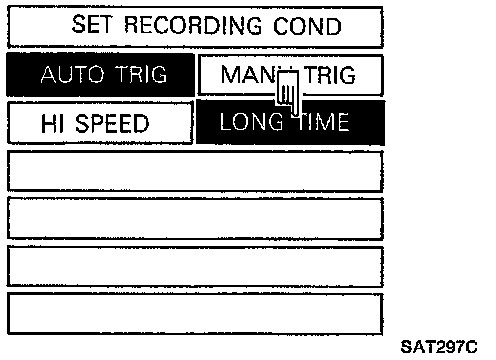

7. Touch "SETTING" to set recording condition.

Consult Test:

8. Touch "LONG TIME" and "ENTER" key.

Consult Test:

9. Go back to SELECT MONITOR ITEM and touch "MAIN SIGNALS".
10. Touch "START".

Consult Test:

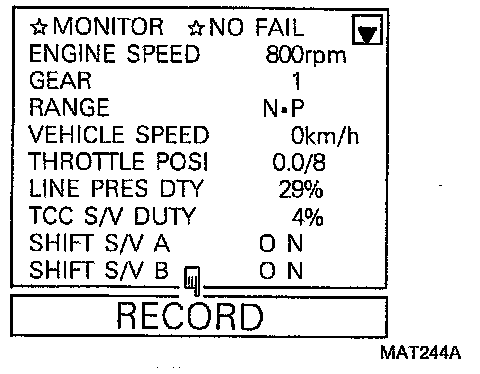

11. When performing cruise test, touch "RECORD".

Consult Test:

12. After finishing cruise test part 1, touch "STOP".

Consult Test:

13. Touch "DISPLAY".

Consult Test:

14. Touch "PRINT".

Consult Test:

15. Touch "PRINT" again.

Consult Test:

16. Check the monitor data printed out.
