Transmission Position Relay: Testing and Inspection

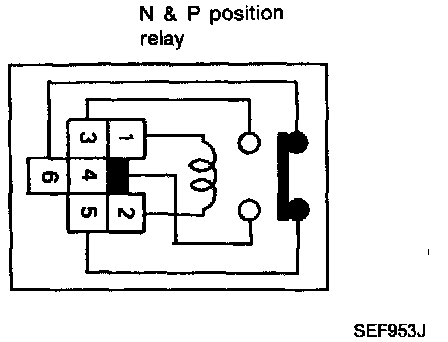

Neutral/park Position Relay:

Check continuity between terminals 3 and 4.
^ With 12 Volts DC supply
between terminals 1 and 2 -- Continuity
^ With NO 12 Volt DC supply
between terminals 1 and 2 -- NO Continuity
If NO GOOD, replace relay.
