Ignition Timing - Adapter Service Tool
Models: 1994 Q45Section: Engine Fuel
Classification: EF&EC93-004
Bulletin No.: ITB93-065
Date: December 9, 1993
Q45 (G50) IGNITION TIMING ADAPTER SERVICE TOOL
APPLIED MODELS:
1994 Infiniti (G50)
SERVICE INFORMATION:

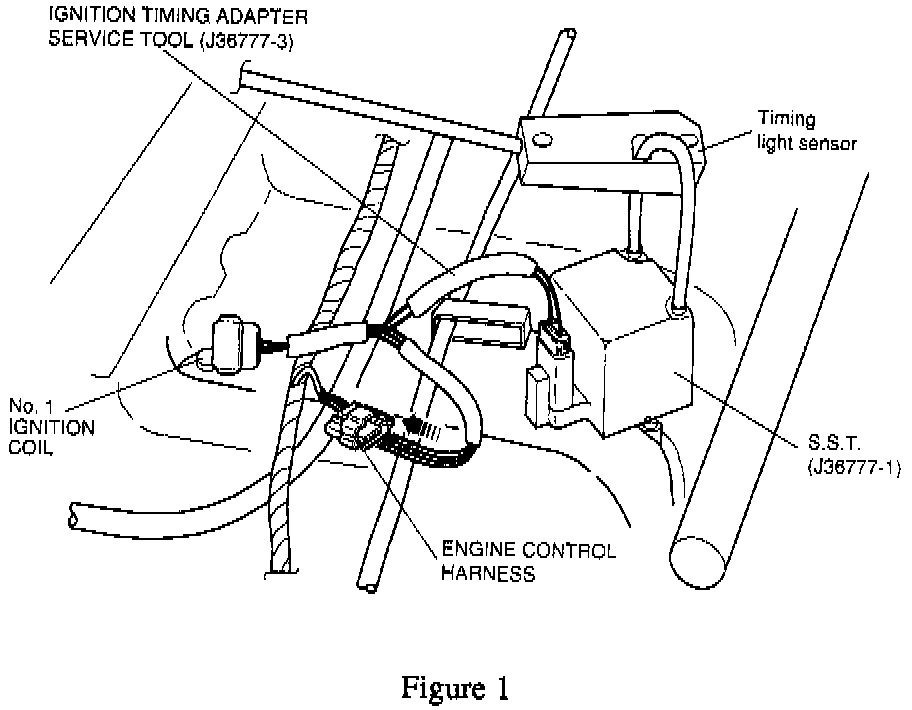

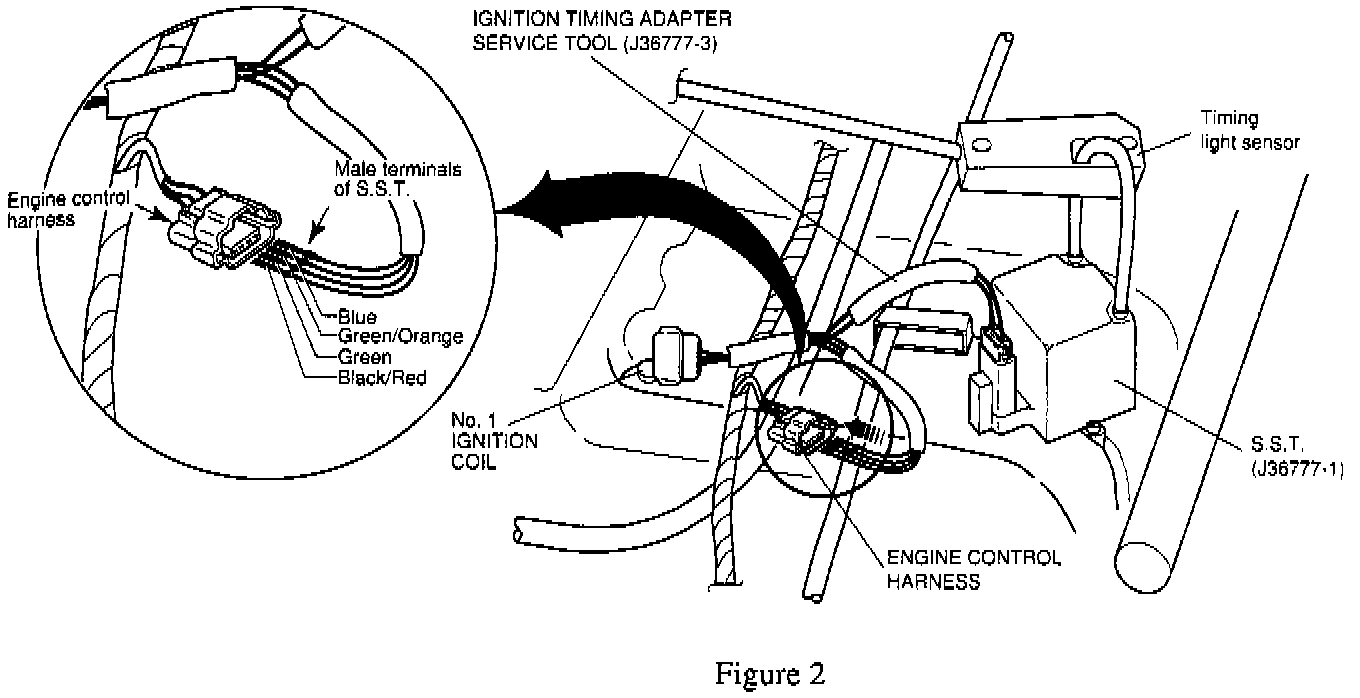

The 1994 Infiniti (G50) has a new shape harness connector on the engine control harness side (Figure 1). Evaluation of base ignition timing on this vehicle requires a different Ignition Timing Adapter Service Tool, P/N J36777-3 (Figure 2).
NOTE:
The above-referenced Ignition Timing Special Adapter Tool, P/N J36777-3, may be ordered separately from Kent-Moore [1-800-345-2233]. However, it is also included in the Infiniti Timing Adapter Kit, P/N J36777-INF.
